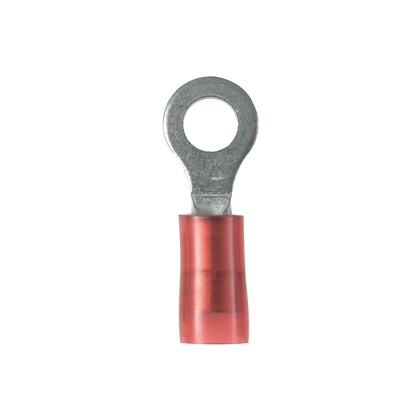

Product image for Panduit PN18-56R-C Pan-Term® Nylon Insulated Ring Terminal
Email

Panduit PN18-56R-C Pan-Term® Nylon Insulated Ring Terminal

Manufacturer: Panduit Corp | Catalog # PN18-56R-C | Cooper Electric Part # 390997
$200.70/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Buy American Compliant Buy American Compliant Product Spec Sheet Product Catalog Page Engineering Drawing
Ring Terminal, 22 . 18 AWG, 5/16" stud size, nylon insulated, standard package.

Technical Information

Barrel Type
Grip Sleeve
Color Coding
Red
Conductor Size
22 AWG
Enclosure
Ring shape
Material
Copper
Size
5/16"
TC Connection
Standard
Temperature Rating
221 F
Tongue Width
0.25 in
Type
Ring Terminal
Voltage
600 Volt
Wire Size
18 AWG

Packaging

Pkg Qty
100

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Term®

General Product Info

12-Digit UPC
074983800100
Color
Red
Finish
Tin Plated
GTiN
00074983800100
Product UPC
07498380010
UNSPSC
39121409

Dimensions

Overall Length
27.7 in
Width
0.46 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
Mexico
Standards and Certifications
  • Standards Met: UL Listed 587H E52164, CSA Certified LR31212, Military QPL AS7928 (MS25036-104)
