Product image for ABB B47PT NON-INS PIN TERMINALS 16-
Image thumbnail 0
Image thumbnail 1
Email

ABB B47PT NON-INS PIN TERMINALS 16-

Manufacturer: ABB | Thomas & Betts | Catalog # B47PT | Cooper Electric Part # 390668
$104.10/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Product Brochure

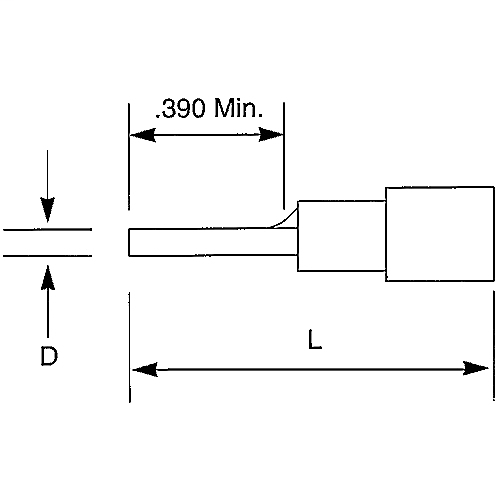

Non-Insulated Pin Terminal, Length .63 Inches, Pin Length .390 Inches, Diameter .075 Inches, Wire Range #16-#14 AWG, Copper, Tin Plated

Technical Information

Barrel Type
Brazed Seam, Serrated
Conductor Size
16-14 AWG
Insulation Material
PVC
Insulation Type
Non-Insulated
Material
Copper
Stud Size
0.63 in
Temperature Rating
150 degrees C
Type
Non-Insulated
Voltage
300 Volt
Wire Size
16-14 AWG

Manufacturer Information

Brand
Thomas & Betts (T&B)
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210033891
Color
Metallic
Finish
Electro Tin Plated
GTiN
05414363935087
Product UPC
78621003389

Dimensions

Length
0.63 Inch
Features
  • Provides an easy and effective way to terminate stranded wire into European/metric-style terminal blocks.
Notes
  • Most terminals can be put on Mylar Tape for reel fed applications by adding the suffix M to the bulk catalog numbers. (I.e. 12050 tool and application dies).
