Thomas & Betts C55PT 12 to 10 AWG Metallic Electrotinned Copper Non-Insulated Pin Terminal

Manufacturer: ABB | Thomas & Betts | Catalog # C55PT | Cooper Electric Part # 390667
$173.39/c (100 ea)
ea
Order in multiples of 500 (pack qty)
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Product Brochure

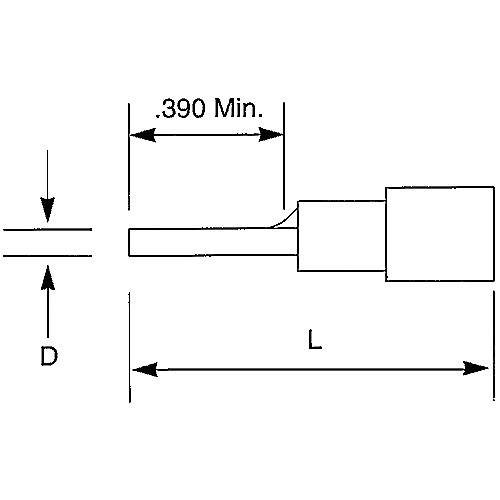

Non-Insulated Pin Terminal, Length .76 Inches, Pin Length .390 Inches, Diameter .106 Inches, Wire Range #12-#10 AWG, Copper, Tin Plated

Technical Information

Conductor Size
12-10 AWG
Insulation Type
Non-Insulated
Material
Aluminum
Temperature Rating
150 degrees C
Type
Non-Insulated
Voltage
300 Volt
Wire Size
12-10 AWG

Manufacturer Information

Brand
Thomas & Betts (T&B)
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210033907
Color
Metallic
Finish
Electro Tin Plated
GTiN
05414363149132
Product UPC
78621003390

Dimensions

Length
0.76 Inch
Features
  • Provides an easy and effective way to terminate stranded wire into European/metric-style terminal blocks.
Notes
  • Most terminals can be put on Mylar Tape for reel fed applications by adding the suffix M to the bulk catalog numbers. (I.e. 12050 tool and application dies).
