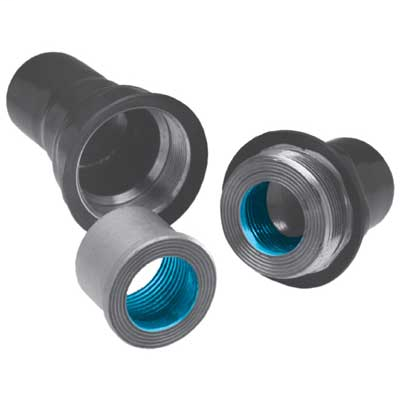

Product image for Ocal UNF805-G 3 Inch Gray PVC Coated Steel Female to Female Conduit Union
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Ocal UNF805-G 3 Inch Gray PVC Coated Steel Female to Female Conduit Union

Manufacturer: Ocal / Thomas & Betts | Catalog # UNF805-G | Cooper Electric Part # 389972
$949.36/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Product Brochure
PVC Coated Explosion and Dust-Ignition Proof UNF Female Union, Pipe Size 3 Inch/78 Metric, 3 Piece, for Hazardous and Non-hazardous Locations, Overall Length 4.00 Inch/101.60 Millimeters, Overall Diameter 5.06 Inch/128.52 Millimeters, Electrogalvanized Steel, Gray

Technical Information

Applications
For Use to Connect Conduit to Conduit or to Provide a Means for Future Modification of the Conduit System
Connection Type
Female
Material
Steel
Size
3 in
Standard
CSA,UL 1203
Trade Size
3 Inch
Type
Female Union

Manufacturer Information

Brand
Thomas & Betts (T&B)
Sub Brand
Ocal®

General Product Info

12-Digit UPC
704508413408
Color
Gray
Finish
PVC Coated
GTiN
00704508413408
Product UPC
70450841340

Dimensions

Length
4 Inch
Outside Diameter
5.06 in
Features
  • Pressure sealing sleeves to protect the connection.
  • Coated with a nominal .002 in. (2 mil) blue urethane on the interior, before PVC Coating is applied.
  • A minimum .040 in. (40 mil) PVC Coating is bonded to the exterior.
Application
  • To connect conduit to conduit, or to provide a means for future modification of the conduit system.
Notes
  • Dimensional values are of uncoated fittings.
  • Standard color is dark gray. Also available in white and light blue. Custom colors are also available upon request. Please contact Technical Services, 888-862-3289.
