Panduit DNF10-250FIMB-Q Nylon Fully Insulated Male Disconnect

Manufacturer: Panduit Corp | Catalog # DNF10-250FIMB-Q | Cooper Electric Part # 389629
$185.45/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Buy American Compliant Buy American Compliant Product Spec Sheet Engineering Drawing

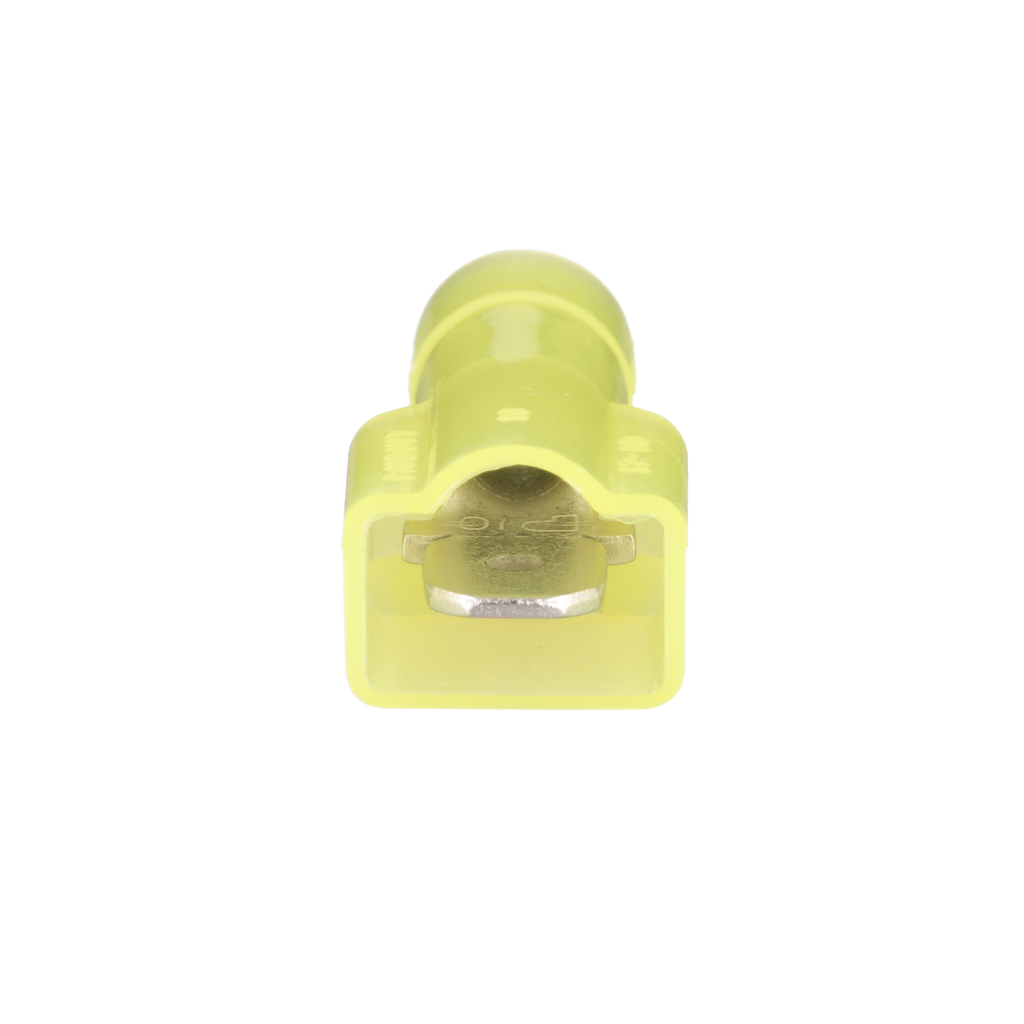

The vibration resistant male tab disconnect is made of copper and is nickel-plated. It is fully insulated in a yellow, oversized nylon housing. It has a tab size of 0.250 x 0.032" (6.3 x 0.8 mm) and supports a wire range of 12-10 AWG (4.0-6.0 mm.). It is 0.96" (24.4 mm) long and 0.22" (5.6 mm) wide. The disconnect has a standard barrel configuration and a butted seam barrel. It comes in bottles of 25.

Technical Information

Barrel Type
Butted Seam
Color Coding
Yellow
Conductor Size
12-10 AWG
Insulation Material
Nylon
Material
Copper
Max Operating Temperature
105 degrees C
Tab Size
1/4 x 0.032 in
TC Connection
Standard
Temperature Rating
221 degrees F
Type
Loose-Piece
Voltage
600 Volt
Wire Size
10 AWG

Packaging

Pkg Qty
25

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Term®

General Product Info

12-Digit UPC
074983119028
Color
Yellow
Finish
Nickel
GTiN
00074983119028
Product UPC
07498311902
UNSPSC
39121409

Dimensions

Height
0.36 Inch
Overall Length
0.96 in
Width
0.45 in

Certifications and Compliance

Buy American Compliant
Y
CA Prop65 Warning
No
Country of Origin
Mexico
Standards and Certifications
  • Standards Met: UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
Prop 65
  • No
