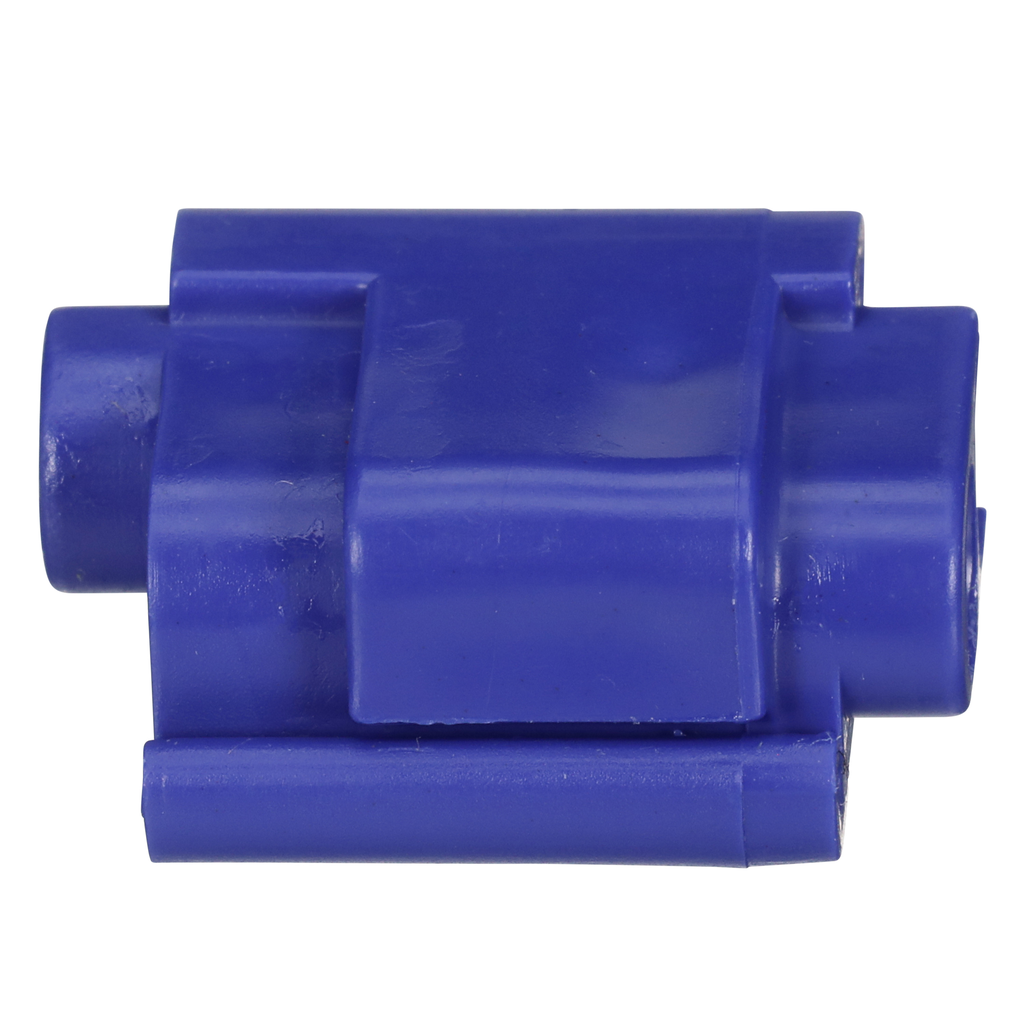

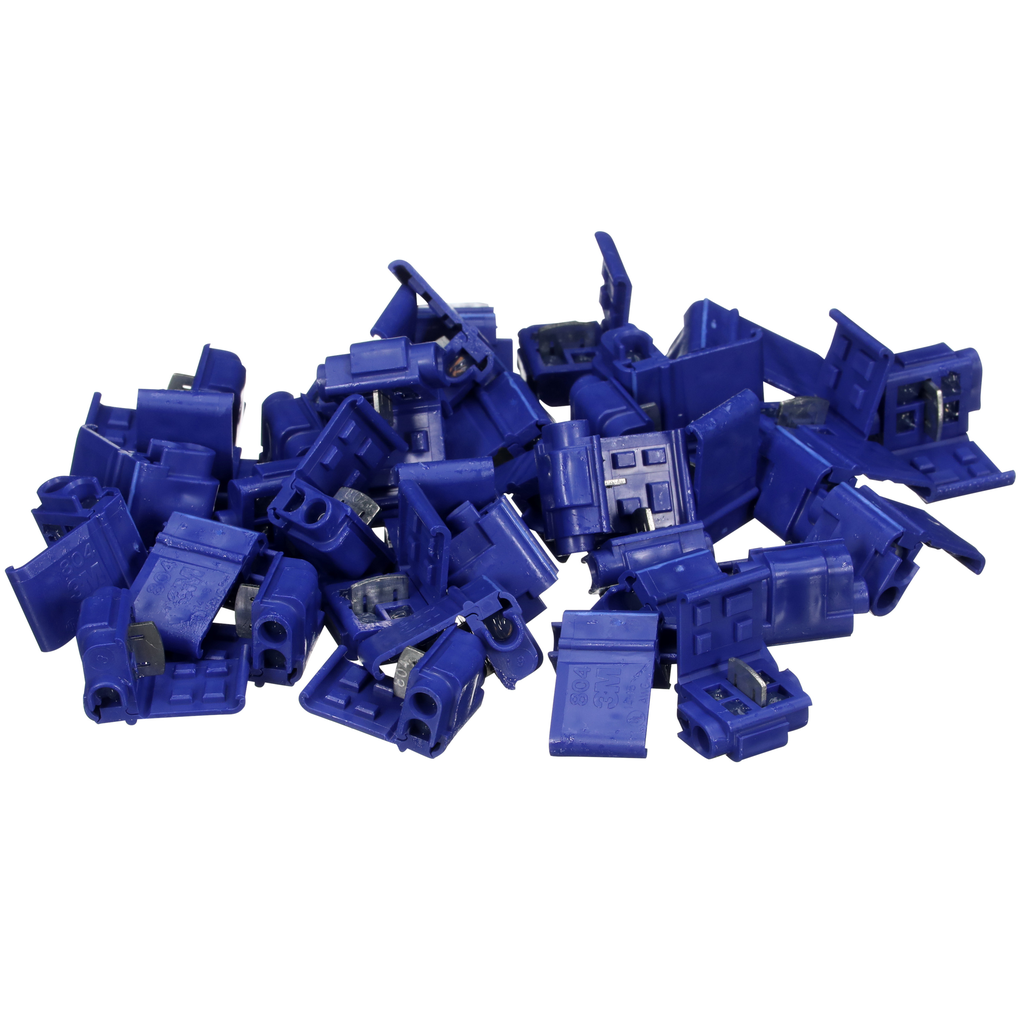

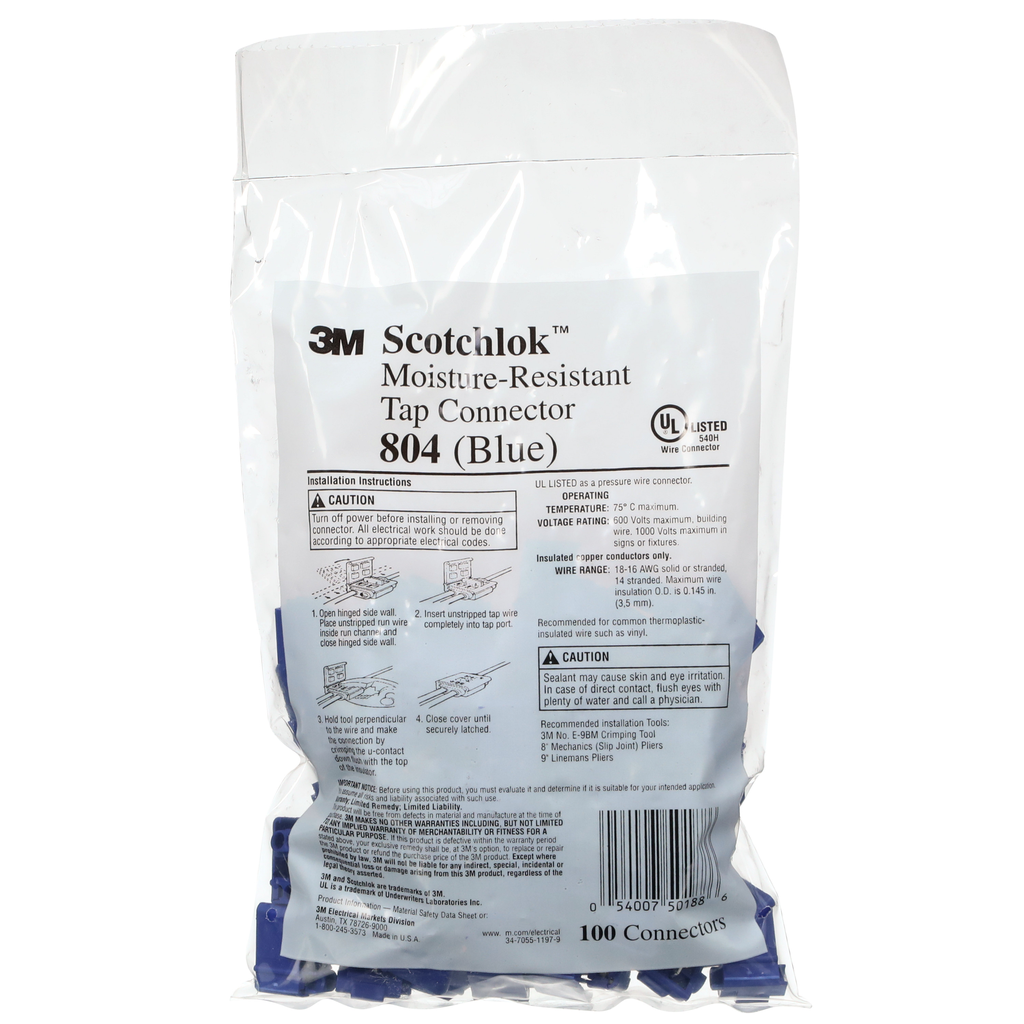

3M 804-100/BAG (7010398509) Scotchlok™ IDC Run & Tap Connector, 600V Max, #18-16 / #14 Stranded, Blue (100/Bag)

Manufacturer: 3M | Catalog # 7010398509 | Cooper Electric Part # 3896
$1.09/ea
ea
Order in multiples of 100 (pack qty)
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Product Brochure
3M Scotchlok Blue Insulation Displacement Connector 804 electrically connects a tap wire to a run (through) wire while insulating the connection. The connector is polypropylene insulated and self stripping, and mineral oil-based dielectric grease provides a moisture-resistant seal.

Technical Information

Material
Plastic
Max Operating Temperature
194.0 degrees F
Size
18 - 16 AWG / 14 AWG Stranded (Tap)
TC Connection
Run and Tap

Manufacturer Information

Brand
3M

General Product Info

12-Digit UPC
054007501886
Color
Blue
GTiN
00054007501886
Product Type
Connector
Product UPC
05400750188

Certifications and Compliance

Country of Origin
USA
Features
  • Independently crimps the barrel and grip on insulated and non-insulated terminals and connectors
  • Use for control circuits, fixtures, appliances, signals, PA systems and automotive/marine/RV wiring
  • Accommodates 18 to 14 AWG solid/stranded copper
  • UL Listed as a Pressure Cable Connector per UL486C and is RoHS 2011/65/EU Compliant
  • Operating temperature 194F (90C)
  • 600 volts max. building wire;
