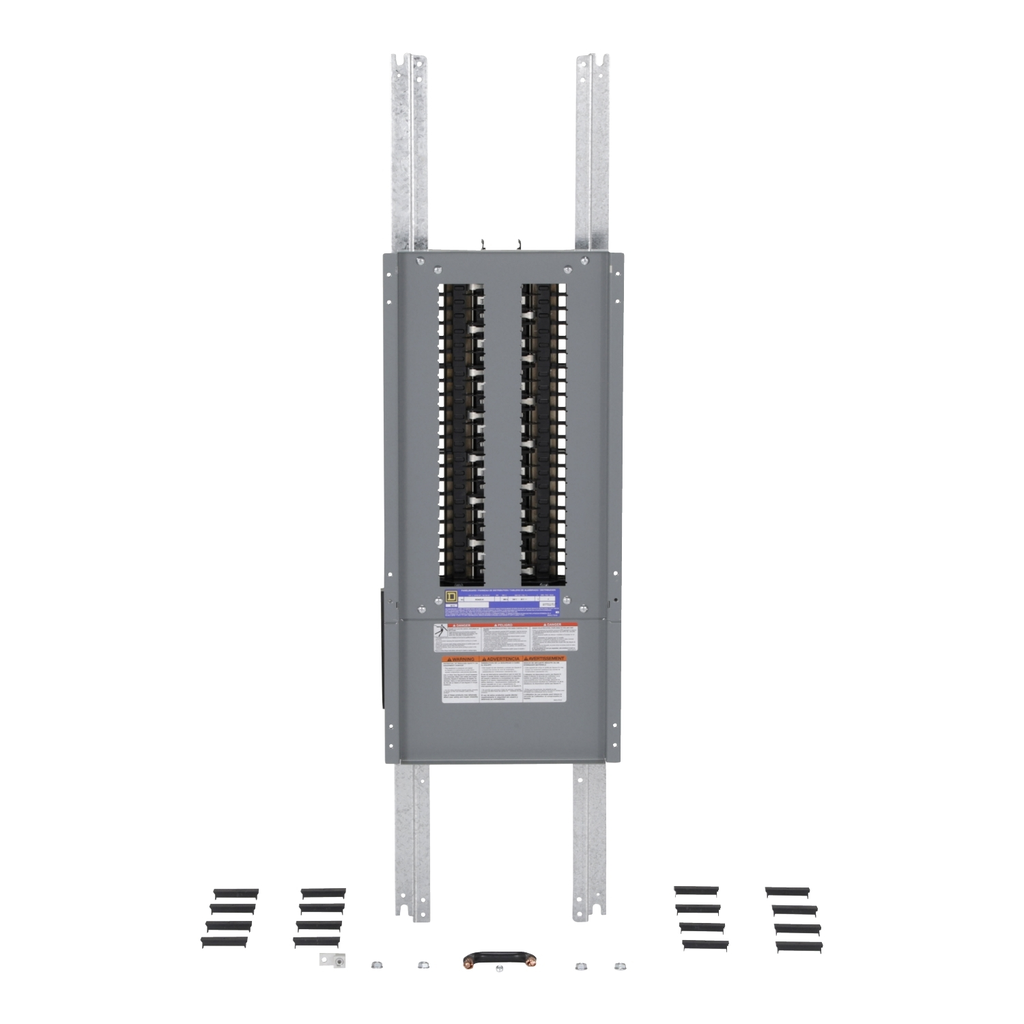

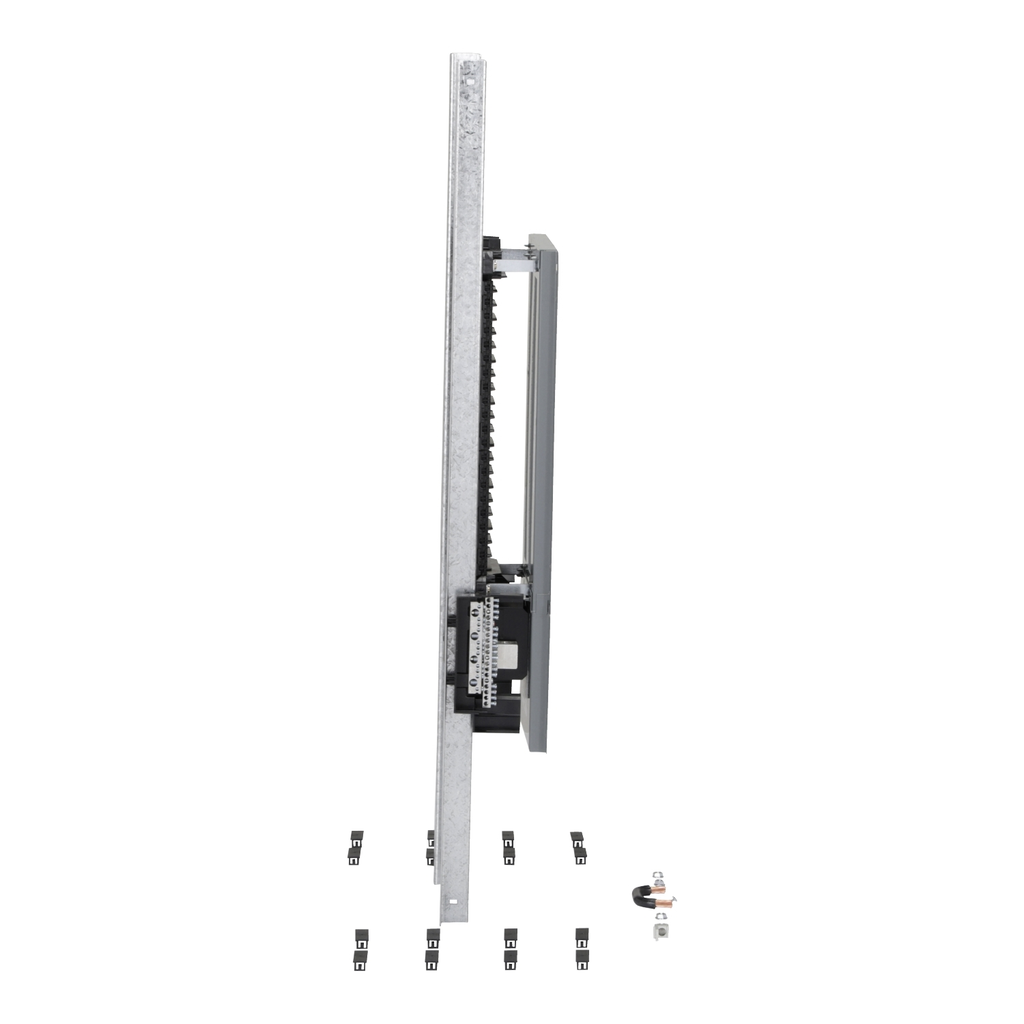

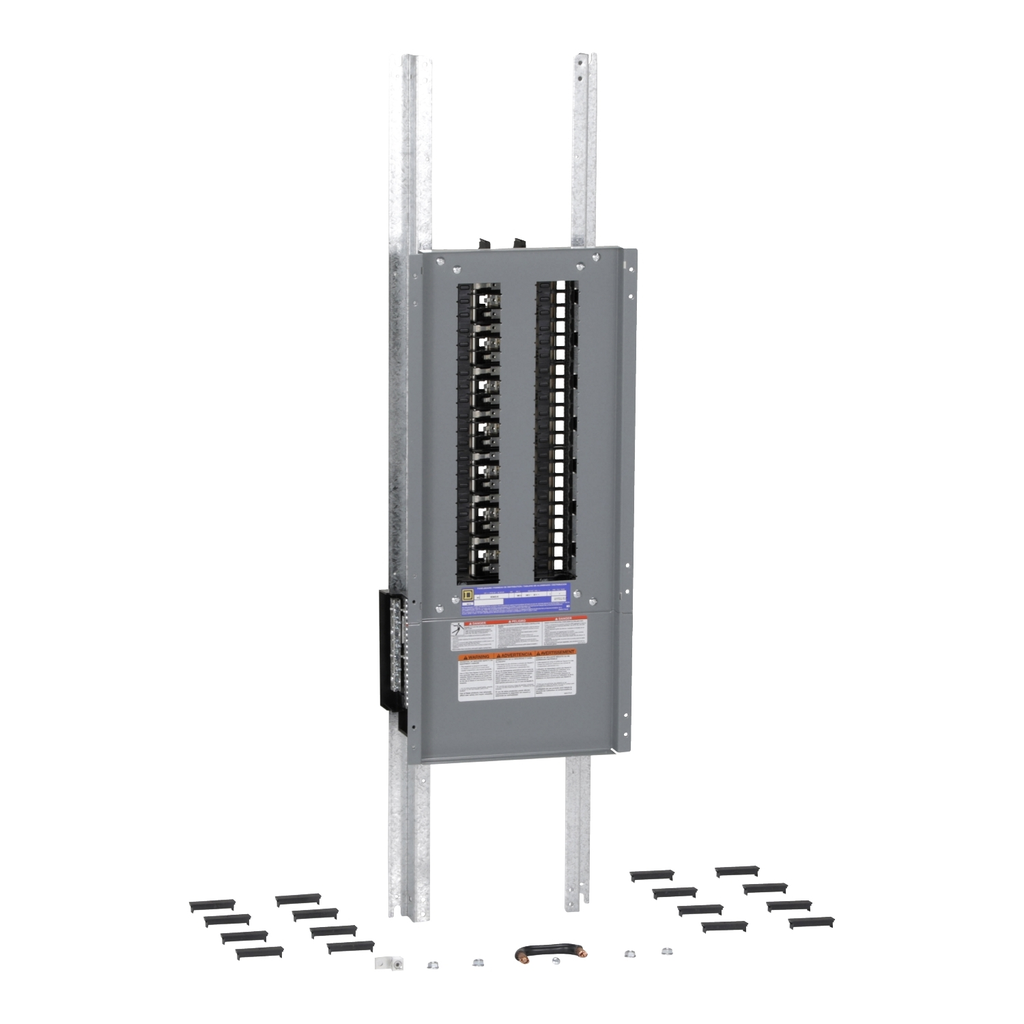

Square D NQ442L6C 240 VAC 48 VDC 600 Amp 3-Phase 4-Wire 42-Circuit Panelboard Interior

Manufacturer: Square-D / Schneider | Catalog # NQ442L6C | Cooper Electric Part # 387248
$2,274.00/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Opens Thursday 7:00am ET
1 available

For Delivery

Order by Thursday 5:00pm ET for delivery Friday
Not in local stock *
Check another branch
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page Product Brochure
This interior main lugs panelboard is one of the Schneider Electric™ NQ lighting and appliance panelboards. It is a 3 phase, 4 wire panelboard with a plated copper bus and tin plated aluminum lugs suitable for aluminum or copper. The phase lugs accept 2-1/0 AWG to 750kcmil conductors, and the neutral lugs accept 1-1/0 AWG to 750kcmil or 2-1/0 AWG to 300kcmil conductors. It has a voltage rating of 240VAC or 48VDC and is rated for 600A line current and 10kA, 22kA, and 65kA interrupted current. It has 42 spaces for bolt on (QOB or QHB) circuit breakers to provide protection for branch circuits. It is compliant with CSA and UL standards.

Technical Information

Amperage
600 Amp
Applications
NQ PANELBOARDS
Circuit Breaker Type
QHB,QOB,QOB-VH
Line Rated Current
600 A
Material
Copper
Net Weight
13.37 kg
Number of Phases
3 Phase
Number of Spaces
42
Size
62 in
Standard
CSA,UL
Type
Interiors;4-wire
Voltage
240 Volt

Manufacturer Information

Brand
Square D
Sub Brand
NQ

General Product Info

12-Digit UPC
785901498698
GTiN
00785901498698
Product UPC
78590149869
Weight
13.37 kg

Dimensions

Enclosure Depth
5.75 in
Enclosure Height
62 in
Enclosure Wdth
20 in
Height
45 Inch
Warranty Length
18 mth
Width
10.44 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Country of Origin
Mexico
Prop 65
  • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
