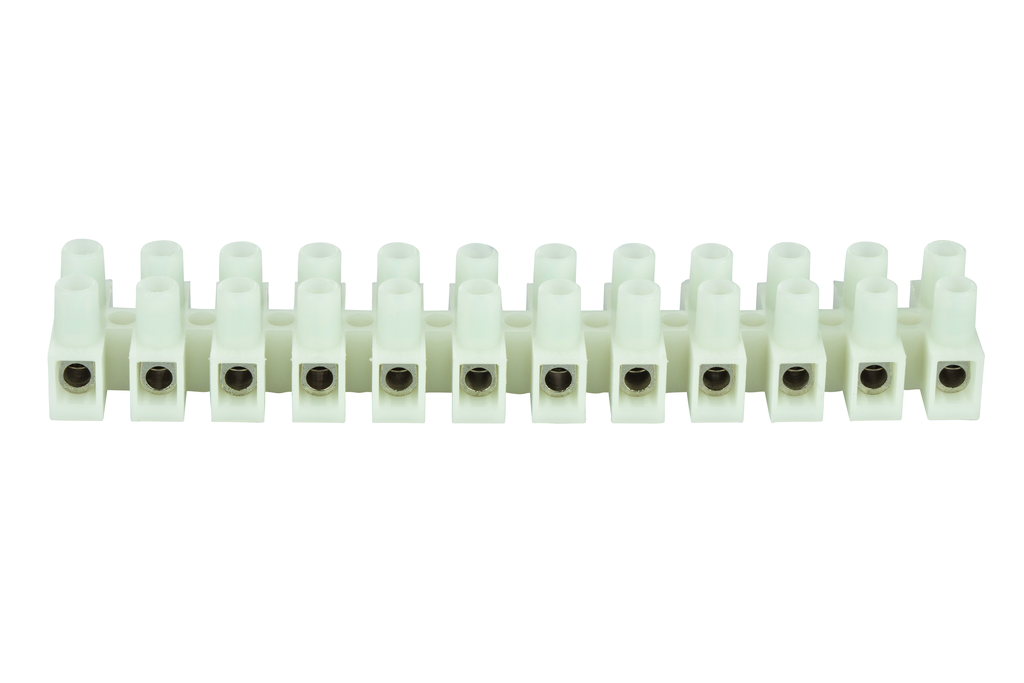

Product image for NSI ITB 30-12 30 Amp 22 to 10 AWG Nylon 66 12-Circuit Insulated Terminal Block
Image thumbnail 0
Image thumbnail 1
Email

NSI ITB 30-12 30 Amp 22 to 10 AWG Nylon 66 12-Circuit Insulated Terminal Block

Manufacturer: NSi | Catalog # ITB30-12 | Cooper Electric Part # 387146
$748.56/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
12 Circuit Insulated Terminal Block for wire range 22-12, rated RU, 30AMPS. "Touchproof" saety with recessed screws and tubular contacts. Cut into smaller sections or stack end to end. Nylon 66 housing, brass metal alloy with nickel plated terminal insert.

Technical Information

Amperage
20 Amp
Applications
Terminate Wire
Conductor Size
18-14 AWG
Material
Nylon
Max Temperature
110 degrees C
Mounting Type
.142 Mounting Holes
Number of Terminations
12
Size
L=4.626 - W=.795 - H=.670 IN
Spacing
0.394 IN
Terminal Size
0.142 IN
Type
Insulated
Voltage
300 Volt
Wire Size
18-14 AWG

Manufacturer Information

Brand
NSI Industries
Sub Brand
Terminal Blocks

General Product Info

12-Digit UPC
662381165220
Color
White
GTiN
00662381165220
Product UPC
66238116522

Dimensions

Height
0.67 Inch
Length
4.626 Inch
Warranty Length
1 yr
Width
0.795 in

Certifications and Compliance

Country of Origin
China
Certifications and Standards
  • CSA
  • UL Recognized
  • UL 94V-2
Features
  • Nylon 66 housing ensures 'touchproof' safety, Brass metal alloy, nickel plated terminal insert, Zinc plated, yellow chromed screws
  • Recessed screws and tubular contacts provide additional safety and help prevent short circuits
  • Integrated stainless steel spring wire protectors prevent twisting and breaking of stranded wires during installation
  • Tubular contacts connect stripped solid or stranded un-terminated wire directly to each contact
  • Modular design allows for connector to be cut into smaller sections or stacked end-to-end
