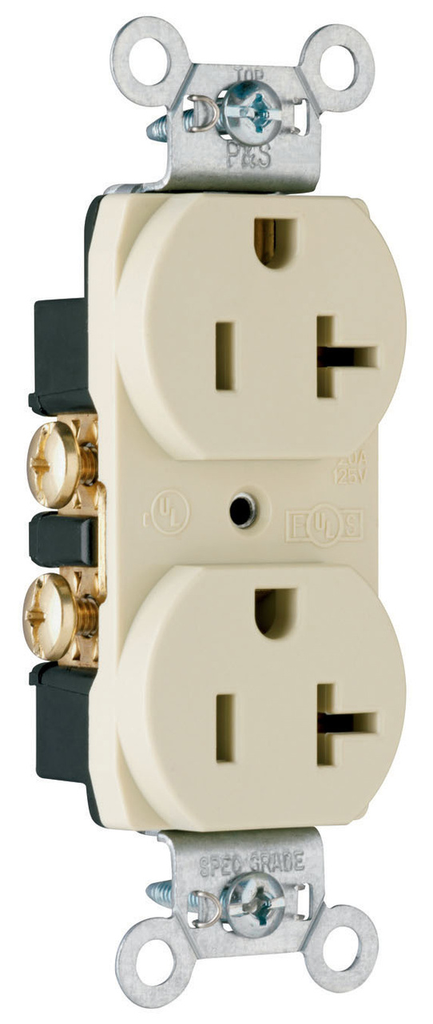

Product image for Pass & Seymour CRB5362-SI Construction Spec Grade Smooth Face Duplex Receptacle, Back & Side Wire, 20A 125V - Ivory
Email

Pass & Seymour CRB5362-SI Construction Spec Grade Smooth Face Duplex Receptacle, Back & Side Wire, 20A 125V - Ivory

Manufacturer: Pass & Seymour / Legrand | Catalog # CRB5362SI | Cooper Electric Part # 386806
$11.70/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Buy American Compliant Buy American Compliant Product Spec Sheet
Construction Spec Grade Smooth Face Duplex Receptacle Back & Side Wire 20amp 125volt White

Technical Information

Amperage
20 Amp
Applications
Construction
Capacity
Duplex
Conductor Size
14-10 AWG
Connection Type
Back Wire,Side Wire
Dielectric Strength
2000 V
Grade
Construction
Material
Nylon
NEMA
5-20R
Number of Poles
2 Pole
Number of Wires
3 Wire
Size
1.322 L x .780 W x 3.281 H In
Style
Smooth Face
TC Connection
Back and side wire
Temperature Rating
-40 degrees C
Type
Receptacles
Voltage
125 Volt
Wire Size
10 AWG

Manufacturer Information

Brand
Legrand
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007307351
Color
Ivory
GTiN
00785007307351
Product UPC
78500730735
UNSPSC
39121406

Dimensions

Depth
0.78 Inch
Height
2.635 Inch
Length
-4 Inch
Width
1.322 in

Certifications and Compliance

Buy American Compliant
Y
Certifications
CULUS,FEDSPEC
Country of Origin
USA
Features
  • Corrosion-resistant, plated steel strap locked in to face and back body to resist pulling away from face/body assembly.
  • .032 inch thick, brass, triple-wipe power contacts for lasting retention.
  • Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.
  • Impact-resistant nylon face and thermoplastic back body.
  • 8 hole internal screw-pressure-plate back wire terminals accept #10 - #14 AWG solid or stranded copper or copper-clad conductors.
  • Terminal compartments isolated from each other for positive conductor containment.
  • Tri-drive terminal and mounting screws.
  • Auto-ground clip assures positive ground.
  • Smooth face version features an impact-resistant nylon face for ease of cleaning and less dirt build-up.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
  • Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
Certifications
  • cULus Listed
  • Federal Spec Listed
