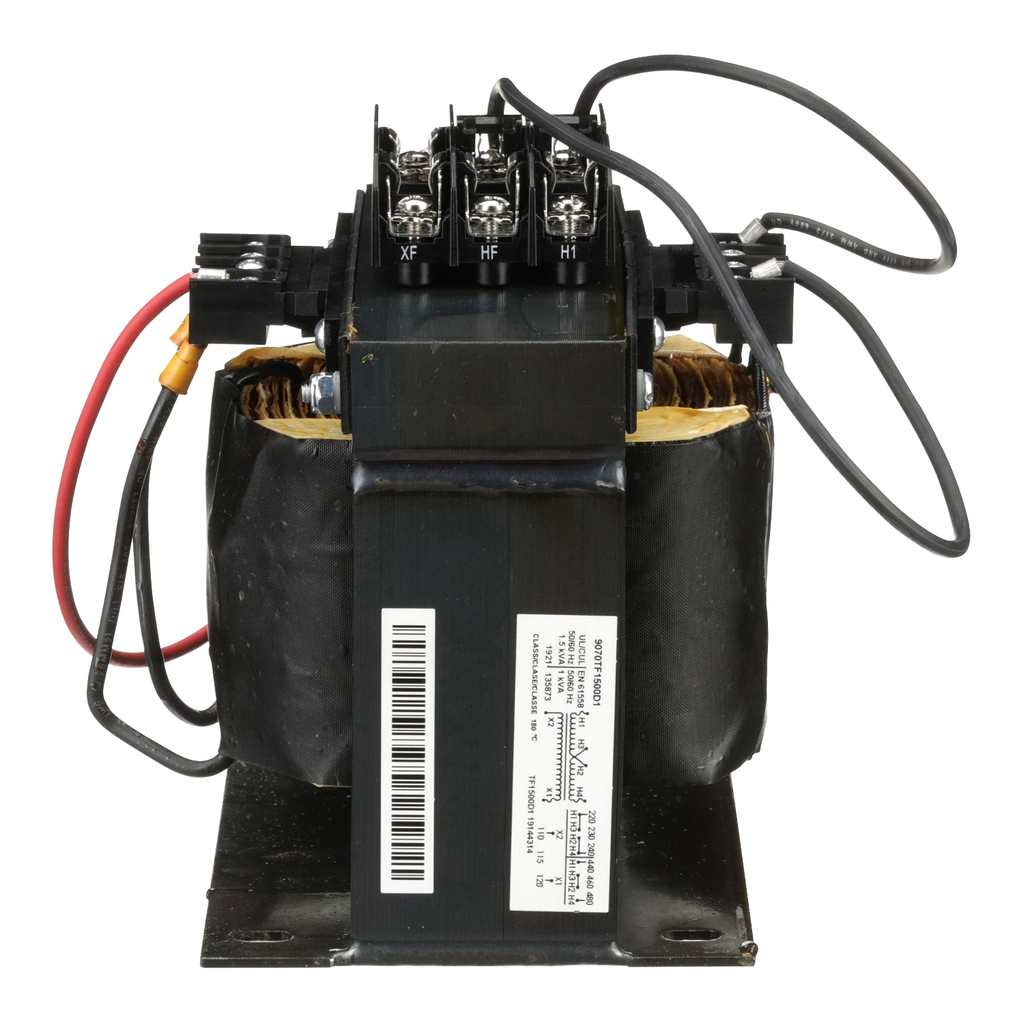

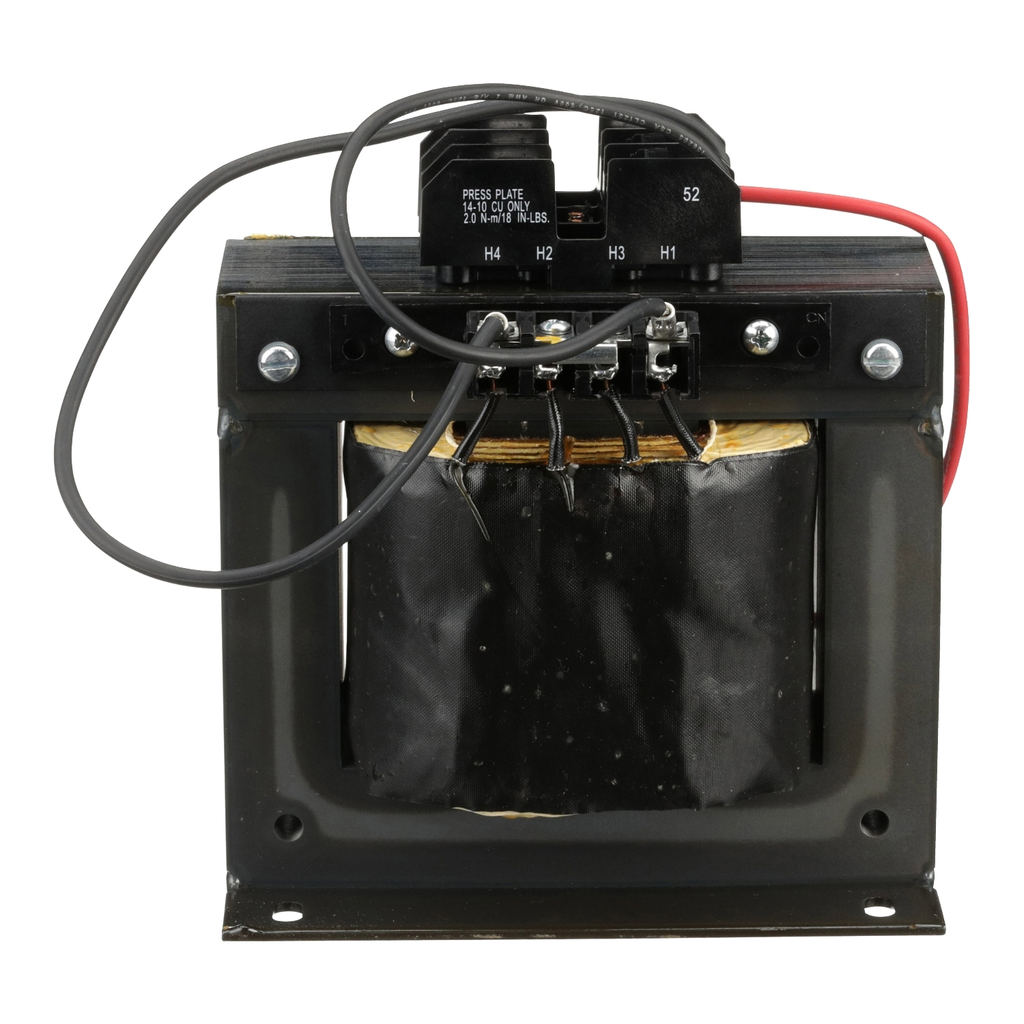

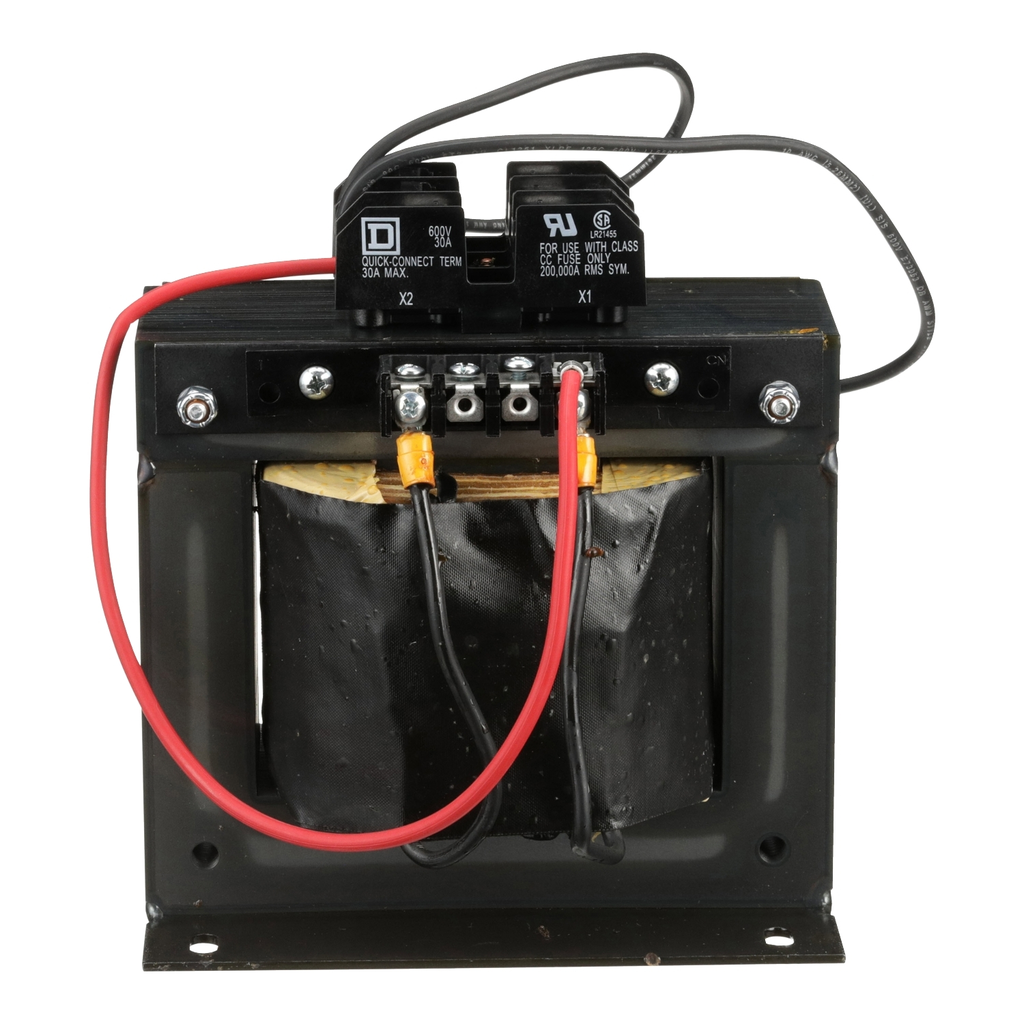

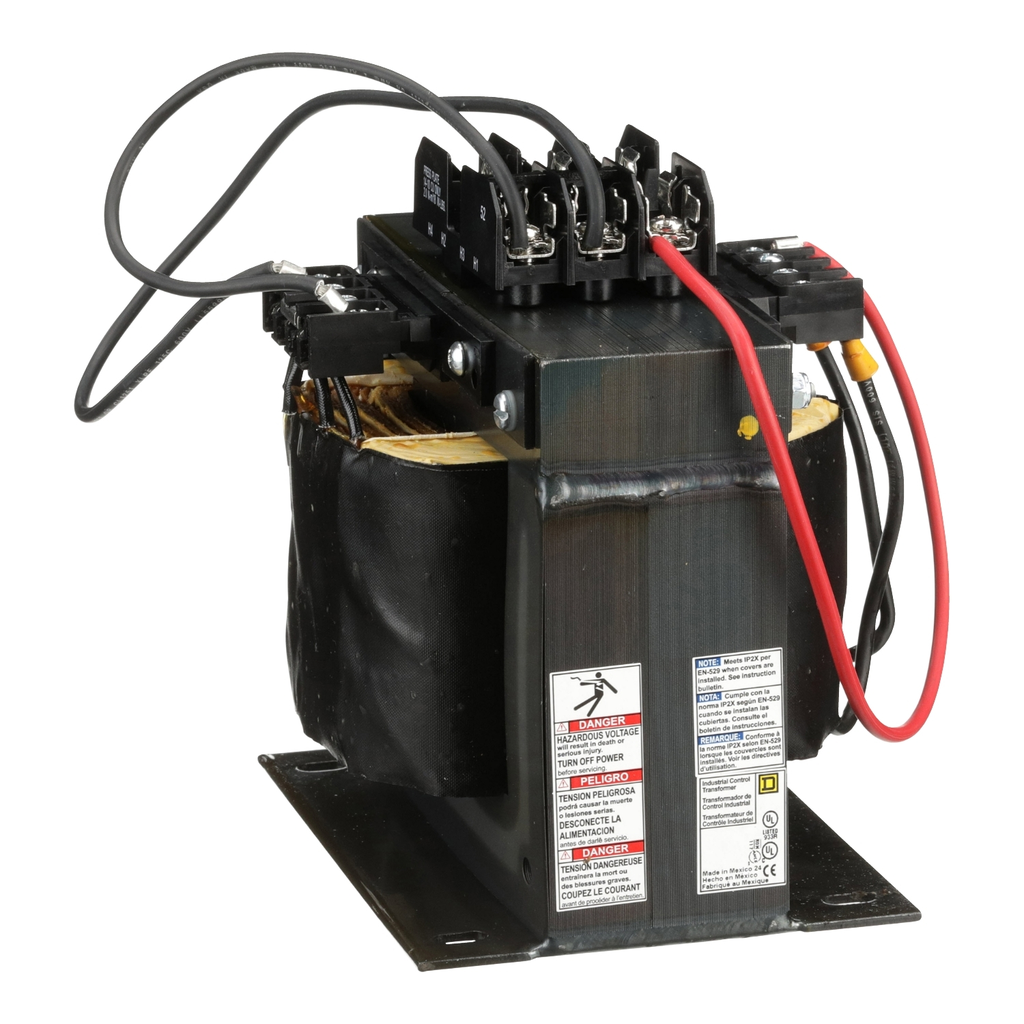

Square D 9070TF1500D1 1500 VA 240 x 480 VAC Primary 120 VAC Secondary 1-Phase Control Transformer

We offer both product lines with factory installed overcurrent protection fuse blocks. Type TF and EOF transformers consist of two primary fuse blocks and one secondary fuse block, a configuration that meets the majority of overcurrent needs by panel builders and machinery OEMs. Since the fuse blocks are pre-wired and mounted on top of the transformer, the Type TF and EOF transformers have the same footprint as the Type T and Type EO units, respectively. This design frees up space normally used for separate fuse blocks. We also have an extensive fuse block offering for custom applications. See the overcurrent section of this catalog for full details. This Industrial Control Transformer has a power rating of 1500VA and is 1 phase. This transformer has a 220 x 440V primary voltage and 110V secondary voltage. This transformer complies to UL, CE & CSA standards. Dimensions for this product are 7.46 in (H), 7.06 in (W), 5.92 in (D). This transformer has screw clamp terminals connections. The material used for this product is copper used in the winding.This product has a compatability for FSC2. This transformer has screw clamp terminals connections. The material used for this product is copper used in the winding.This product has a compatability for FSC2. The material used for this product is copper used in the winding. This product has a compatability for FSC2.
