Burndy YGIBS283382N Copper Compression Connector, Cable to Steel, 2 AWG - 4/0 AWG, Angled Flange, 025" - 0338" Thickness, 2 holes, 1/2" Stud

Manufacturer: Burndy | Catalog # YGIBS283382N | Cooper Electric Part # 385984
$485.86 /ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
BAA | Buy American Compliant BAA | Buy American Compliant Product Spec Sheet
Copper Compression Connector, Cable to Steel, 2 AWG - 4/0 AWG, Angled Flange, 0.25" - 0.338" Thickness, 2 holes, 1/2" Stud.

Technical Information

Applications
For Direct Burial Cables
Bolt Size
1/2-13
Conductor Size
1 AWG
Conductor Type
CU C Str-Size
Connection Type
Tap
Material
Copper
Plated?
No
Plating Type
Unplated
Type
Taps

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Burndy

General Product Info

12-Digit UPC
781810039281
GTiN
00781810039281
Product UPC
78181003928

Dimensions

Height
1.13 Inch
Length
3 Inch
Overall Length
3.00 in
Width
1.13 in

Certifications and Compliance

BAA | Buy American Compliant
Y
Country of Origin
USA
CSA
Yes
Features

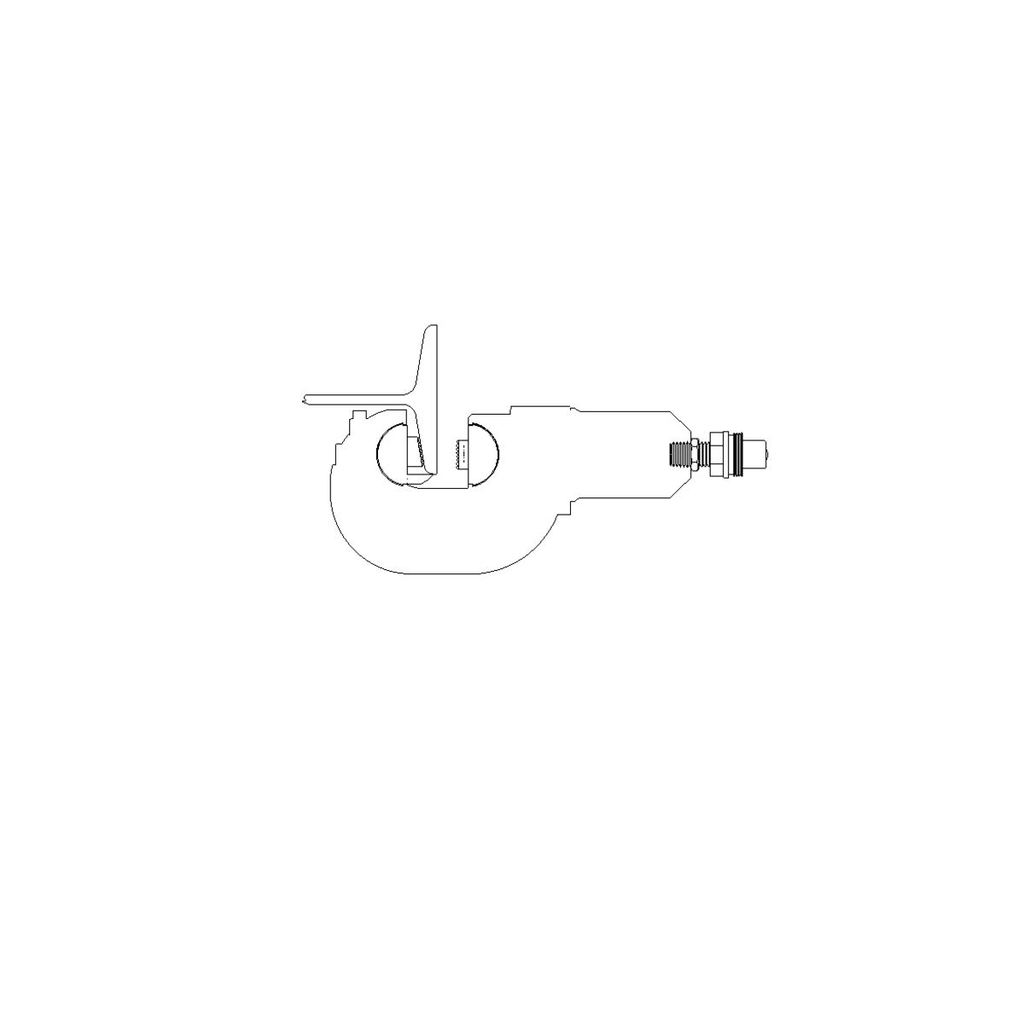

  • An Irreversible Compression Ground Connection Which Allows Attachment To A Structural Steel Standard (Angled) Or Wide Flange (Parallel) Beam, Installed With A Required 5-Piece Die Set, Catalog PIBEAMKIT Or UIBEAMKIT, Die Index 1105, GROUNDLINK Connectors Are Made Of High-Conductivity Wrought Copper And Come Pre-Filled With PENETROX E Compound And Strip Sealed, Order Terminal Mounting Hardware Separately, I Beam Thickness Range: 0.25 - 0.312 IN, Suggested Compression Terminal: YGHA2C-2N, YGHA25-2N, Mounting Hardware Order Separately: TMHG-42, Length: 3 IN, I Beam Style: Standard Beam (Flange Angled), Terminal Pad Thickness: 0.19 - 0.26 IN, Die Index: 1105 Element A
