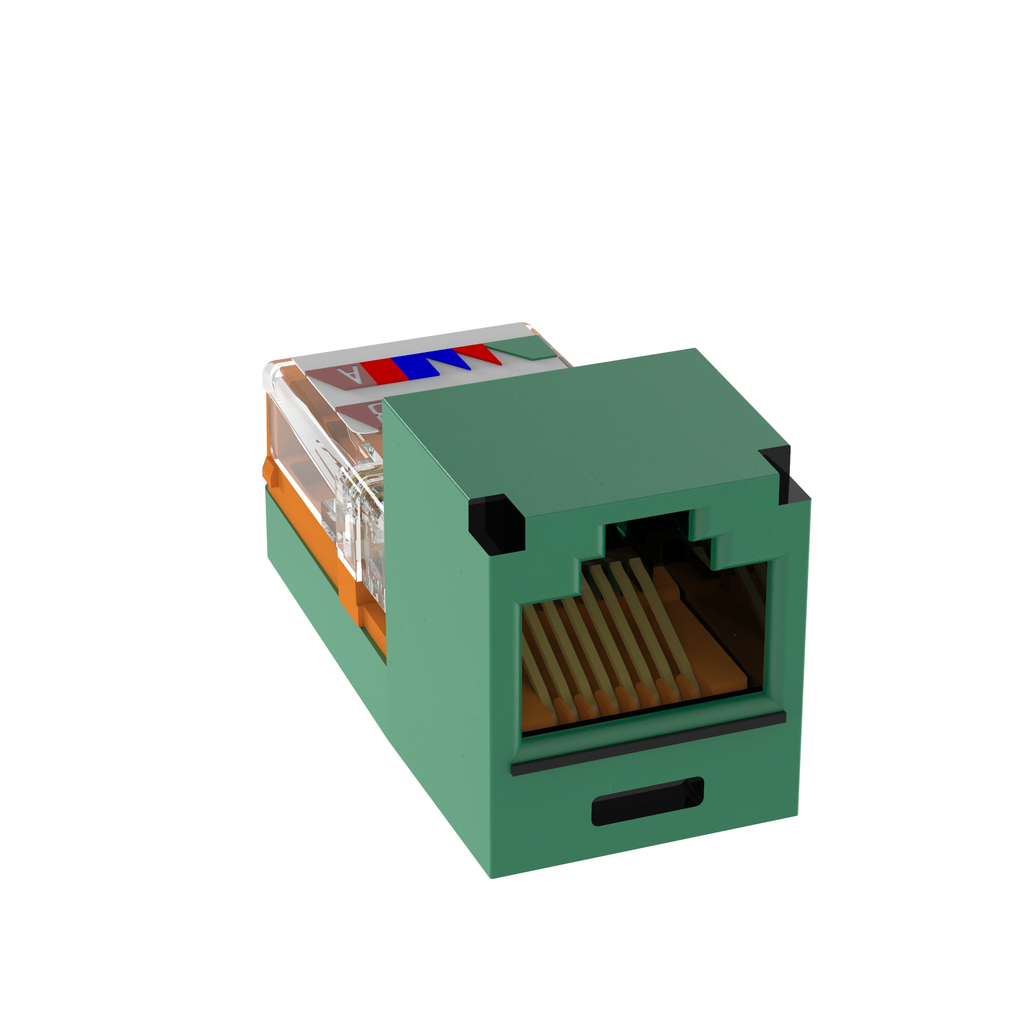

Product image for Panduit CJ588GRY UTP RJ45 Cat 5e Leadframe Jack Module, Green
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Panduit CJ588GRY UTP RJ45 Cat 5e Leadframe Jack Module, Green

Manufacturer: Panduit Corp | Catalog # CJ588GRY | Cooper Electric Part # 385975
$18.72/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Buy American Compliant Buy American Compliant Product Spec Sheet Installation / Instruction Manual Engineering Drawing
The Mini-Com® Cat 5e UTP RJ45 Leadframe Jack Module is designed to terminate 4-pair, 22-24 AWG twisted pair cable. Each module is 100% factory tested for continuity. Contacts are plated with 50 microinches of gold for superior performance. Jack modules are compatible with Mini-Com Modular Patch Panels and Faceplates. The jack module is green.

Technical Information

Applications
Unshielded
Cable Type
Category 5e
Material
ABS Plastic
Max Operating Temperature
149 degrees F
Min Operating Temperature
-10 degrees C
Number of Positions
8
Performance Level
Category 5e
Type
Universal, Unshielded

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Mini-Com

General Product Info

12-Digit UPC
074983034895
Color
Green
GTiN
00074983034895
Product UPC
07498303489

Dimensions

Depth
1.37 Inch
Height
0.72 Inch
Overall Length
34.8 mm
Width
15.7 mm

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
China
Standards and Certifications
  • Standards Met: Exceeds Channel and Component Requirements of ANSI/TIA-568-C.2 Category 5e and ISO 11801 Class D Standards at Swept Frequencies 1 to 100 MHz. Meets all Applicable ANSI/TIA-968-A Requirements, Meets Requirements of IEEE 802.3af and IEEE 802.3at for PoE Applications, Meets IEC 60603-7, UL 1863 Approved, RoHS Compliant
