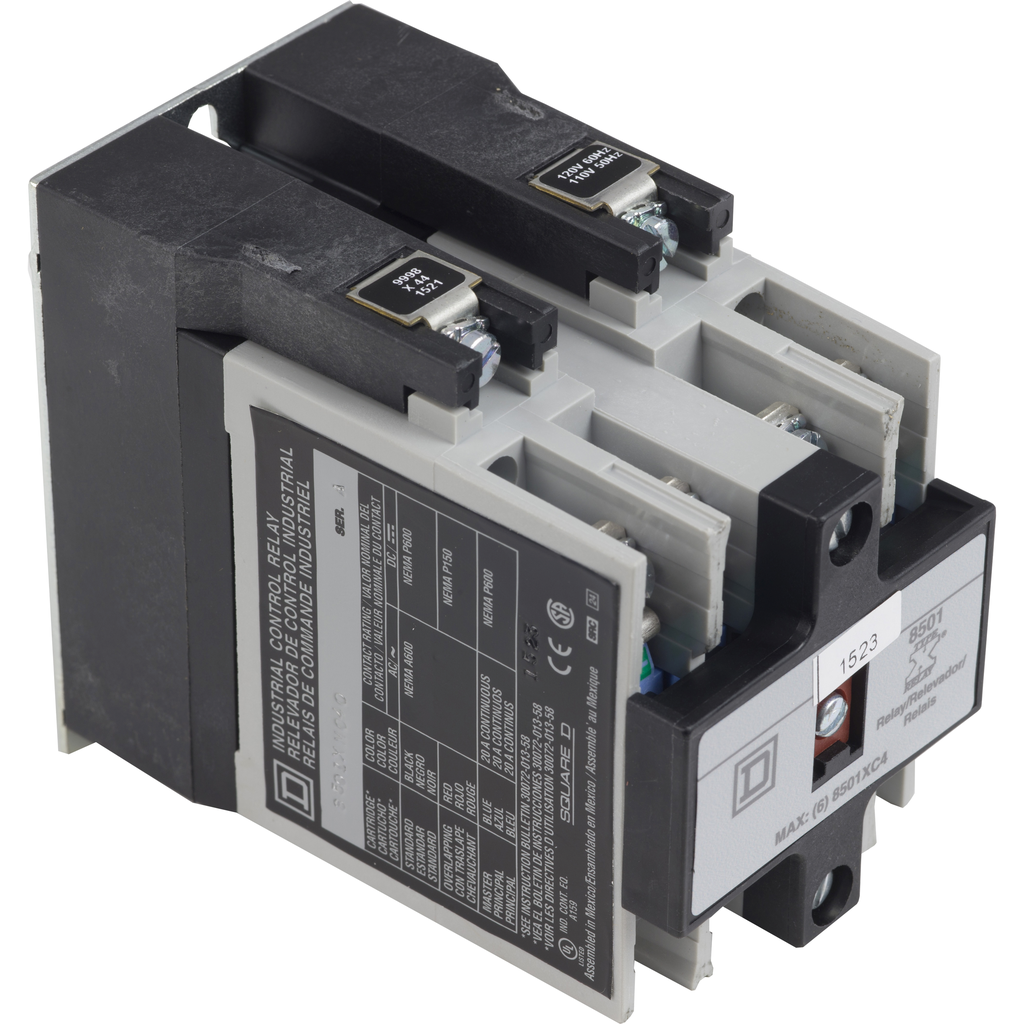

Square D 8501XMO20V02 110/120 VAC 20/5 Amp 2-Pole 2NO Panel Mount AC Operated Master Relay

Manufacturer: Square-D / Schneider | Catalog # 8501XMO20V02 | Cooper Electric Part # 385930
$256.28 /ea
ea
Log in or register to view your price, purchase history, and more!
2NO 4NO 6NO
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
NEMA Control Relay, Type X, master, 10A resistive at 600 VAC, 2 normally open contacts, 110/120 VAC 50/60 Hz coil

Technical Information

Amperage
5/20 Amp
Coil Voltage
110 V AC 50 Hz;120 V AC 60 Hz
Contact Configuration
2 NO 2 master contact cartridges
Contact Rating
20 A AC,600 V AC
Control Circuit Voltage
120 V
Current
20 Amp
Line Rated Current
20 A
Mounting Type
Panel
Number of Poles
2 Pole
Operating Temperature
-40160 degrees F (-4071 degrees C)
Size
3.95 in
TC Connection
Screw clamp terminals
Type
Relay;Master
Voltage
600 Volt

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Square D

General Product Info

12-Digit UPC
785901018186
GTiN
00785901018186
Product UPC
78590101818

Dimensions

Depth
3.95 Inch
Height
3-1/2 Inch
Warranty Length
18 mth
Width
2.23 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CE,CSA,UL Listed
Country of Origin
Mexico
Contacts Type And Composition
  • 2 NO 2 master contact cartridges
CAD
  • https://download.schneider-electric.com/files?p_Doc_Ref=8501XMO20V02_2D&p_File_name=8501XMO20V02_2D.dwg
  • https://download.schneider-electric.com/files?p_Doc_Ref=8501XMO20V02_2D&p_File_name=8501XMO20V02_2D.dxf
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Carbon Footprint Of The Installation Phase A5
  • 0.2396336190194762
  • 0.2 kg CO2 eq.
Carbon Footprint Of The End Of Life Phase C1 To C4
  • 2 kg CO2 eq.
  • 1.6485925308260578
Operating Time
  • 15 ms - pick-up
  • 16 ms - drop-out
Maximum Switching Voltage
  • 600 V AC
UC Control Circuit Voltage
  • 110 V AC 50 Hz
  • 120 V AC 60 Hz
Carbon Footprint Of The Manufacturing Phase A1 To A3
  • 6 kg CO2 eq.
  • 5.773983463801209
Accessories
  • 8501XC4
  • 8501XB20
  • 8501XB40
  • 8501XS1
  • 8501XTD1
  • 8501XTE1
  • 9998X44
Carbon Footprint Of The Use Phase B2 B3 B4 B6
  • 172 kg CO2 eq.
  • 171.93
Line Rated Current
  • 20 A AC
Accessory Products
  • 8501XC4
  • 8501XB20
  • 8501XB40
  • 8501XS1
  • 8501XTD1
  • 8501XTE1
  • 9998X44
Carbon Footprint Of The Distribution Phase A4
  • 0.12278054302216254
  • 0.1 kg CO2 eq.
