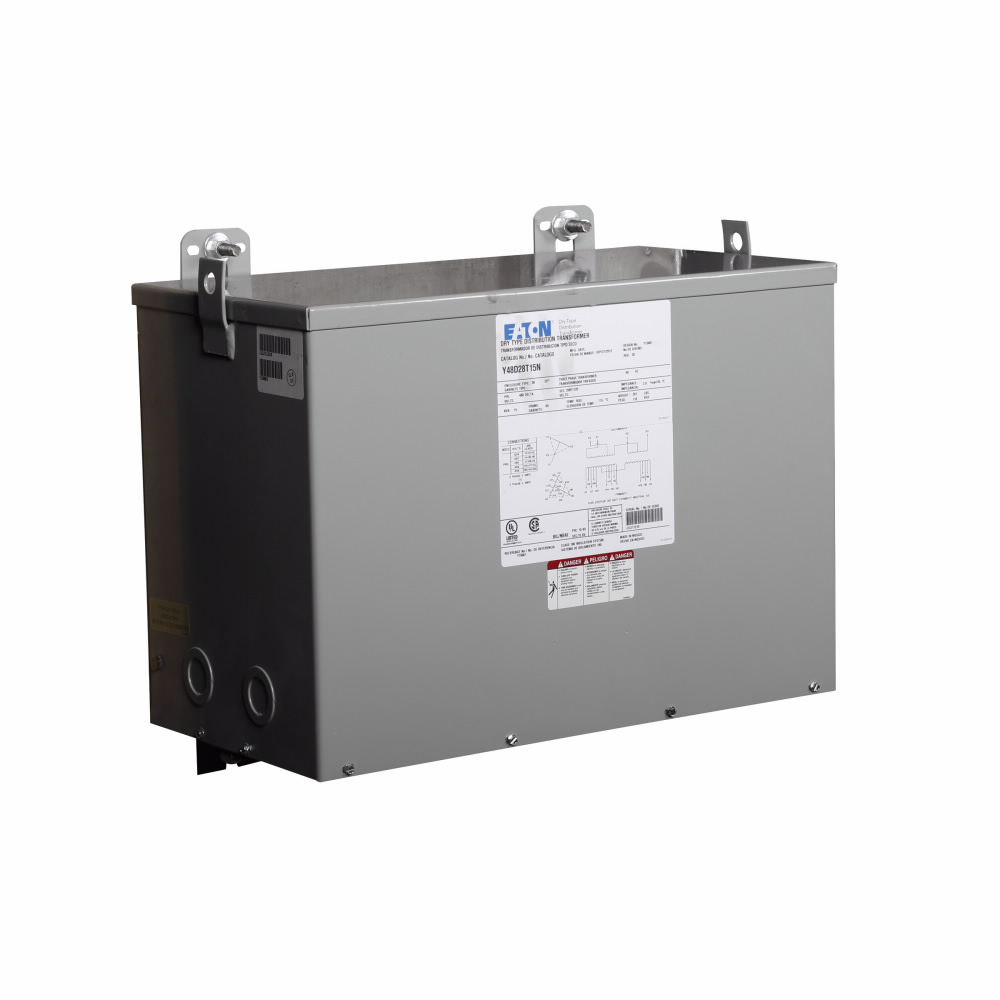

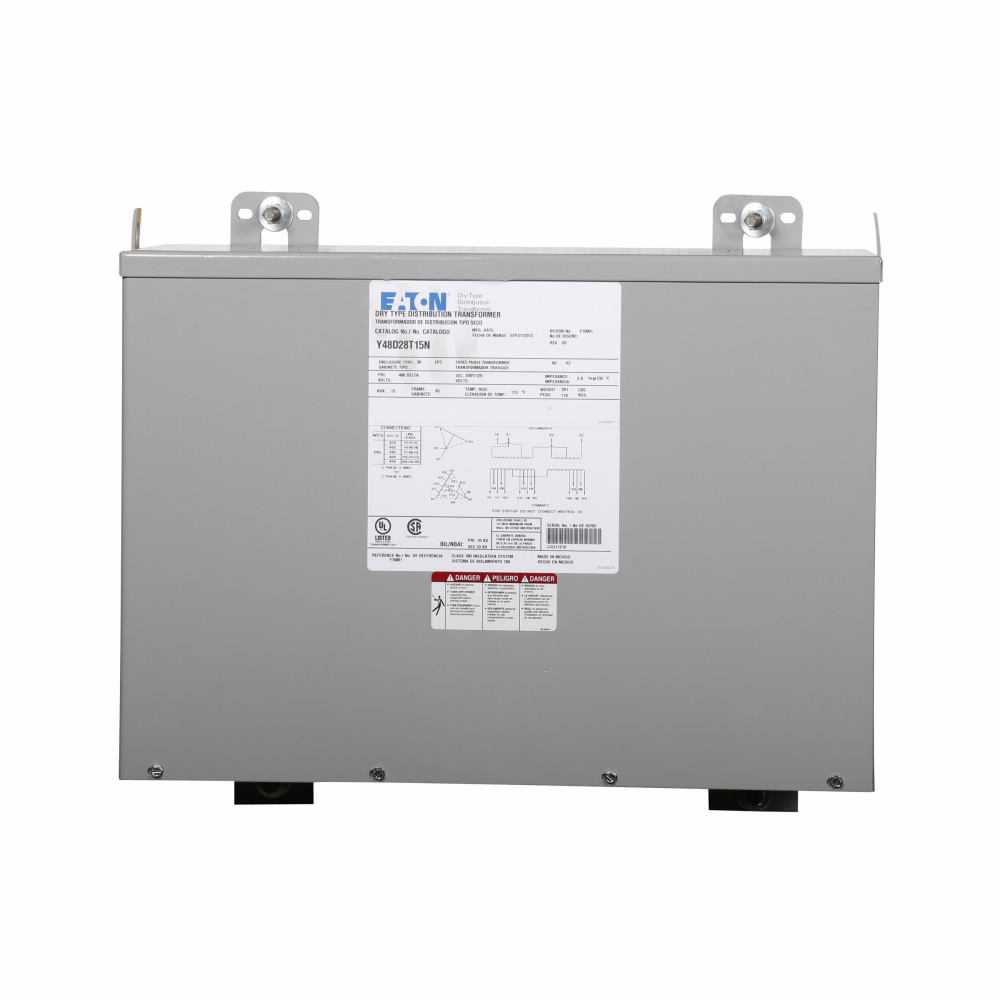

Product image for Cutler-Hammer LY48D24T15CU Marine duty encapsulated transformer, marine duty encapsulated transformer, EPTM, copper, NEMA 3R, 95, 60 Hz, three-phase, 480 V, 240 V, 2 at +2.5% FCAN, 2 at -2.5% FCBN, 115
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Image thumbnail 6
Image thumbnail 7
Email

Cutler-Hammer LY48D24T15CU Marine duty encapsulated transformer, marine duty encapsulated transformer, EPTM, copper, NEMA 3R, 95, 60 Hz, three-phase, 480 V, 240 V, 2 at +2.5% FCAN, 2 at -2.5% FCBN, 115

Manufacturer: Cutler-Hammer / Eaton | Catalog # LY48D24T15CU | Cooper Electric Part # 385321
$5,637.85/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page
Eaton Marine duty encapsulated transformer, marine duty encapsulated transformer, EPTM, copper, NEMA 3R, 95, 60 Hz, three-phase, 480 V, 240 V, 2 at +2.5% FCAN, 2 at -2.5% FCBN, 115 .C rise, 15 KVA, indoor-outdoor

Technical Information

Actuator
Lever
Applications
Commercial / Institutional Buildings / Structures - Commercial / Institutional Buildings / Structures - Other
Coil Material
Copper
Enclosure
3R
Enclosure Material
Stainless Steel
Frame
95
Frequency
60 Hz
NEMA Size
3R
Number of Phases
3 Phase
Primary Voltage
480 V
Secondary Voltage
240 V
Tap Size
2 at +2.5% FCAN, 2 at -2.5% FCBN
Temperature Rating
115 degrees C
Type
Encapsulated,Marine Duty,Transformer

Manufacturer Information

Brand
Eaton

General Product Info

12-Digit UPC
786680032066
Color
Black
GTiN
00786680032066
Product UPC
78668003206
Weight
296 lb

Dimensions

Height
17.38 Inch
Length
10.52 Inch
