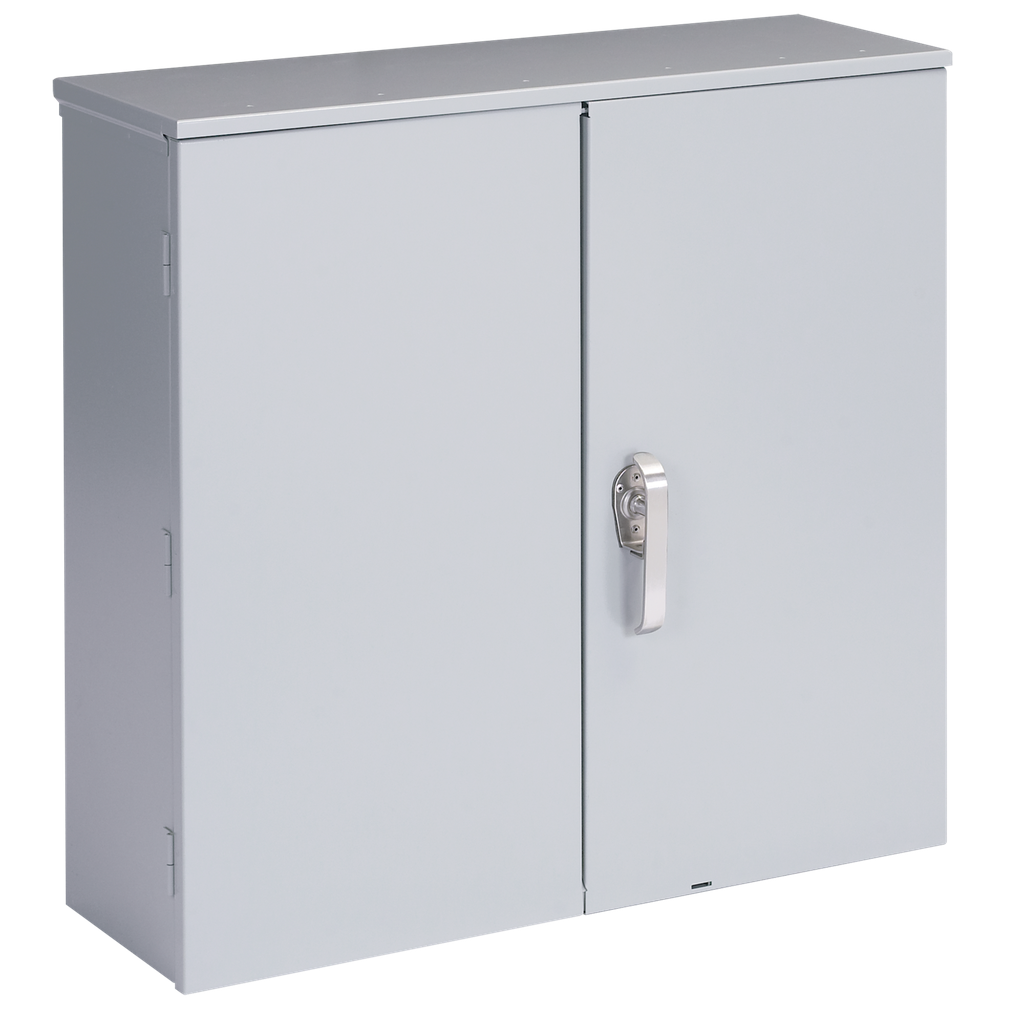

Product image for Hoffman A800NECT 3-Phase 400-1200 Amp with Mechanical Lugs, Type 3R, Gray, Steel
Email

Hoffman A800NECT 3-Phase 400-1200 Amp with Mechanical Lugs, Type 3R, Gray, Steel

Manufacturer: Hoffman | Catalog # A800NECT | Cooper Electric Part # 384653
$2,117.04/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
CT Cabinet, 3-Phase 400-1200 Amp with Lugs, Type 3R, are used in indoor or outdoor applications. These cabinets provide an assembly solution for three-phase service from 400-1200 amp line load terminations for each phase and neutral. Hardware to mount a bar-style current transformer is included.

Technical Information

Applications
Power Distribution
Body Thickness
1.9 mm
Color Coding
ANSI 61
Enclosure
3R
Material
Steel
Standard
CUL Listed Per CSA C22.2 No 94; Type 3R; File No. E27525,IEC 60529, IP 32,NEMA Type 3R,UL 414 Listed; Type 3R; File No. E240312,UL 50, 50E Listed; Type 3R; File No. E27525
Type
Utility / Canadian Cabinets and Splitters

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
Hoffman

General Product Info

12-Digit UPC
783510149239
Color
Gray
Finish
Galvanized
GTiN
00783510149239
Product UPC
78351014923
Weight
149 lb

Dimensions

Depth
12 Inch
Height
15-3/4 Inch
Length
44-1/4 Inch
Width
36 in
Features
  • Double door with 3-point latch includes padlock feature
  • Lift-off hinges for removable doors
  • Mechanical lugs provided for three-phase line-load connections plus neutral
  • Ground lug
  • Catalog number A1200NECT includes panel-mounting provisions for voltage transformer (VT)
  • Embossed mounting holes
  • No gasketing or knockouts
  • Enclosures are finished with paint over plated surfaces
