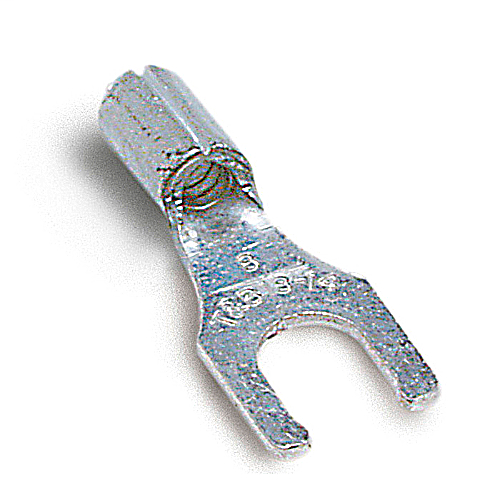

Product image for Thomas & Betts C10-8FL #8 Bolt Hole 12-10 AWG Wire Range Metallic Non-Insulated Locking Fork Terminal
Image thumbnail 0
Image thumbnail 1
Email

Thomas & Betts C10-8FL #8 Bolt Hole 12-10 AWG Wire Range Metallic Non-Insulated Locking Fork Terminal

Manufacturer: ABB | Thomas & Betts | Catalog # C10-8FL | Cooper Electric Part # 383559
$208.00/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
Non-Insulated Locking Fork Terminal, Length .85 Inches, Width .37 Inches, Bolt Hole #8, Wire Range #12-#10 AWG, Copper, Tin Plated

Technical Information

Barrel Type
Brazed Seam, Serrated
Conductor Size
12-10 AWG
Flamability Class
Rated V-0 Per UL94
Insulation Type
Non-Insulated
Material
Copper
Stud Size
#8
Temperature Rating
150 degrees C
Terminal Type
C
Type
Non-Insulated, Locking, Short Sleeve
Voltage
600 Volt
Wire Size
12-10 AWG

Manufacturer Information

Brand
Thomas & Betts (T&B)
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210806754
Color
Metallic
Finish
Electro Tin Plated
GTiN
05414363934950
Product UPC
78621080675

Dimensions

Height
3 Inch
Thickness
.04 in
Width
1.63 in
Certifications
  • UL
  • CSA
Features
  • Locking fork terminals have a specially designed tongue that lets them go on like a fork and stay on like a ring.
