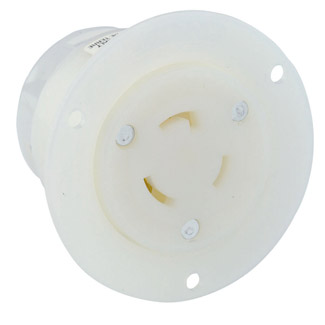

Product image for LEV 2316 WH OUTLET FLANGED 2PO 3WI
Image thumbnail 0
Image thumbnail 1
Email

LEV 2316 WH OUTLET FLANGED 2PO 3WI

Manufacturer: Leviton Mfg Co | Catalog # 2316 | Cooper Electric Part # 382771
$97.26/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Safety Data Sheet
20 Amp, 125 Volt, NEMA L5-20R, 2P, 3W, Flanged Outlet Locking Receptacle, Industrial Grade, Grounding - WHITE

Technical Information

Amperage
20 Amp
Applications
Commercial
Body Material
Nylon
Conductor Size
18-10 AWG
Connection Type
Back Wired
Contact Material
Brass
Dielectric
2000 V
Dielectric Strength
2000 (Min.)
Face Material
Nylon
Flamability Class
Rated V-2 Per UL 94
Grounding
Grounding
Horsepower
1 hp
Material
Nylon
Mounting Type
Flange
NEMA
WD-6
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Rated Insulation Voltage
2000 V
Screw Material
Brass,Brass
Screw Size
10-32,8-32
Size
2.50 Dia x 1.78 H IN
Standard
ANSI C-73
TC Connection
Back & Side Wired
Temperature Rating
-40 to 60 degrees C
Temperature Rise
200 %
Terminal Size
14-8 AWG
Termination Type
Back Wire
Type
Locking
Voltage
125 Volt
Wire Count
3
Wire Size
16-8 AWG

Manufacturer Information

Brand
Leviton
Sub Brand
V-0-Max™

General Product Info

12-Digit UPC
078477801000
Color
White
Environmental Conditions
Flammability (Rated V-2 Per UL94)
GTiN
00078477801000
Product UPC
07847780100

Dimensions

Warranty Length
Lifetime Limited

Certifications and Compliance

Country of Origin
Mexico
NEMA

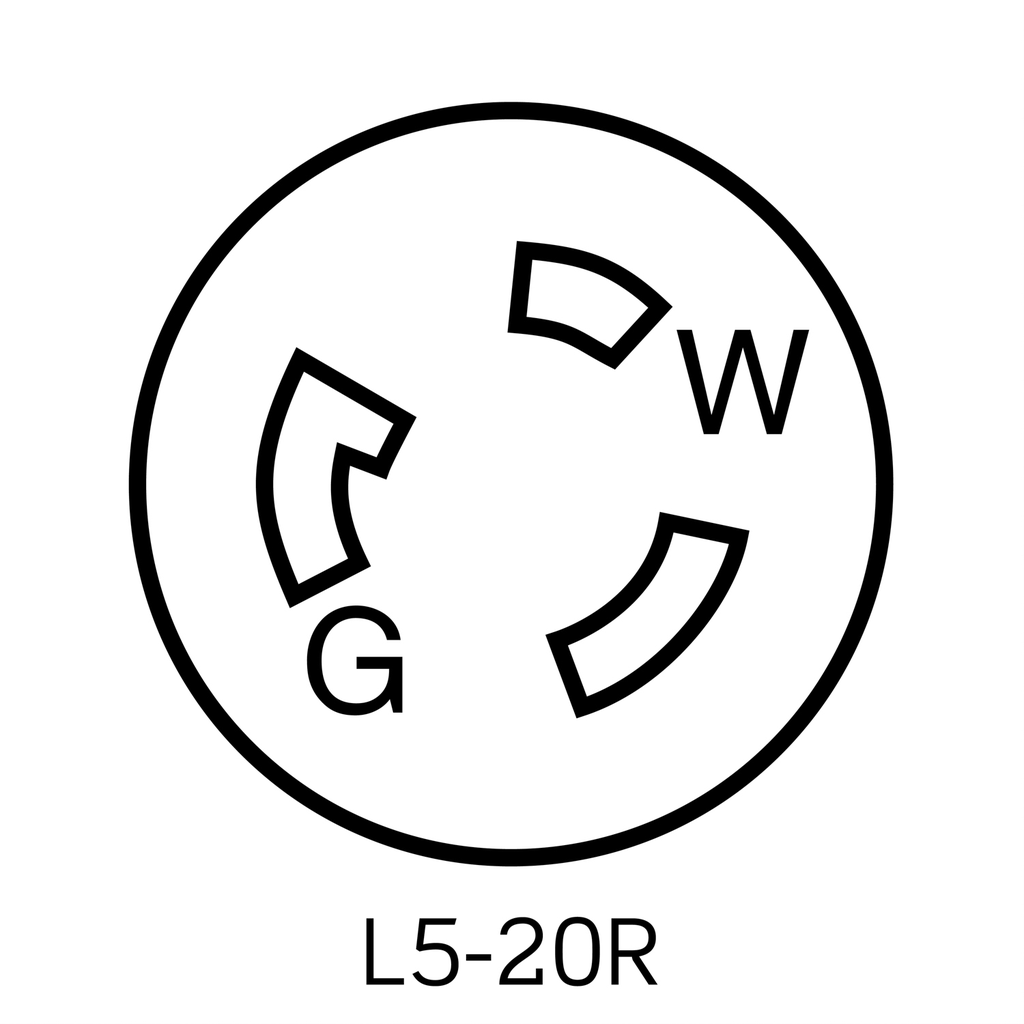

  • L5-20R
Features
  • Levitons industry leading locking devices, such as our Black & White line of industrial grade plugs and connectors and our V-0-Max line of industrial grade flush receptacles, offer superior performance, long lasting reliability and other features that are backed by a lifetime warranty.
