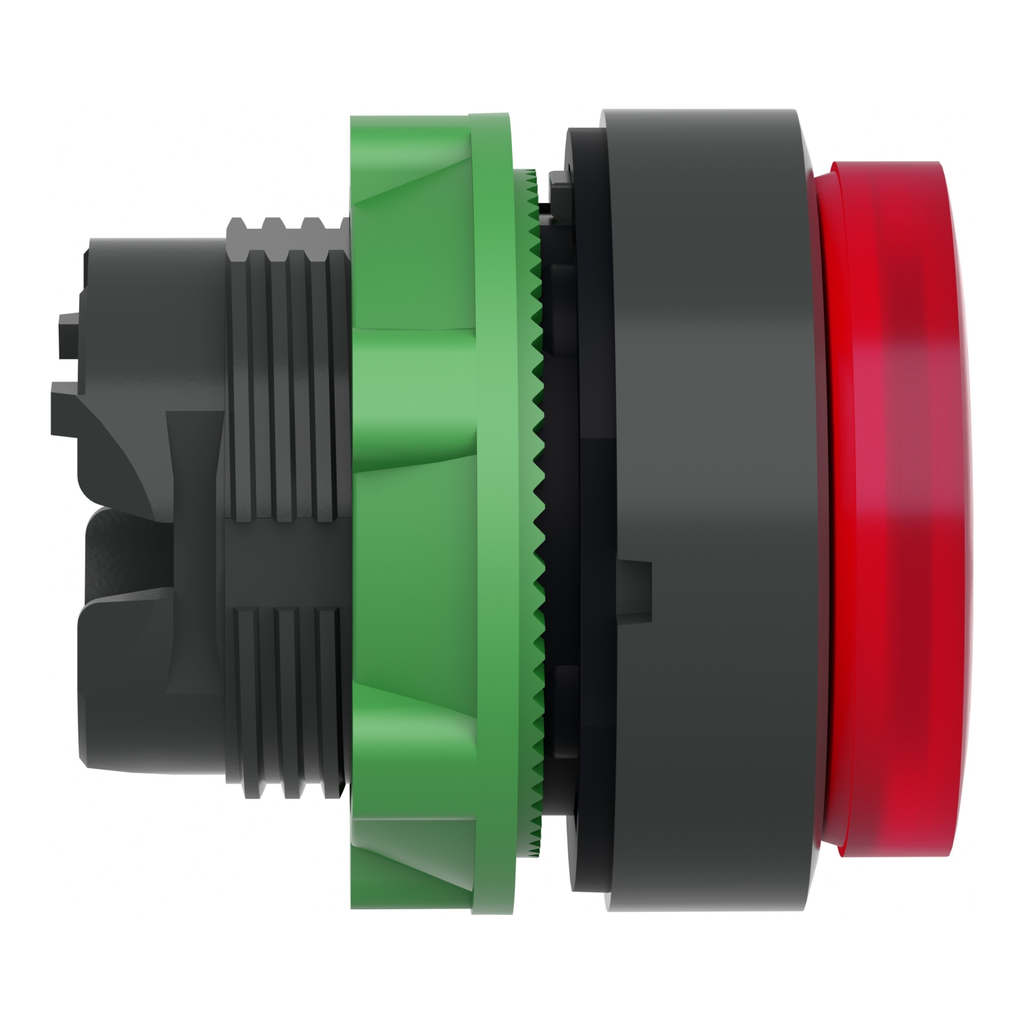

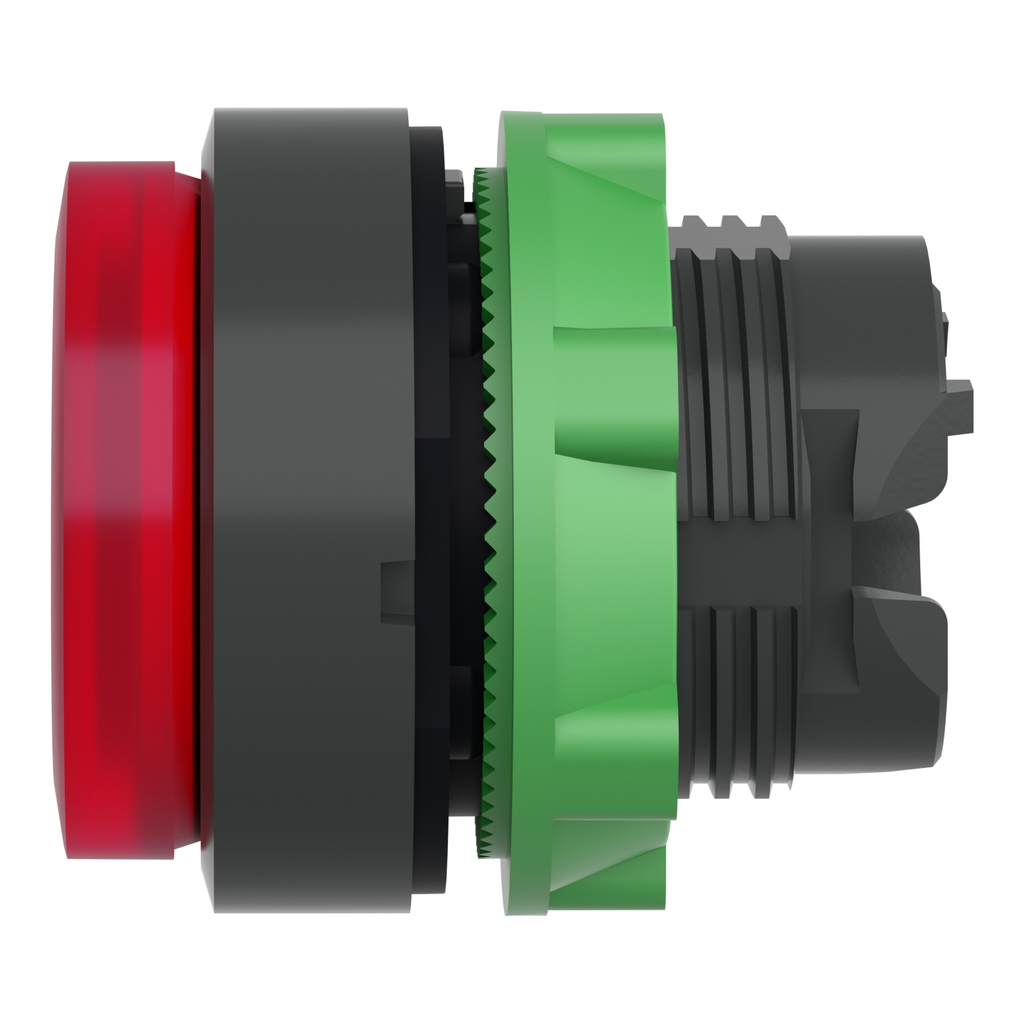

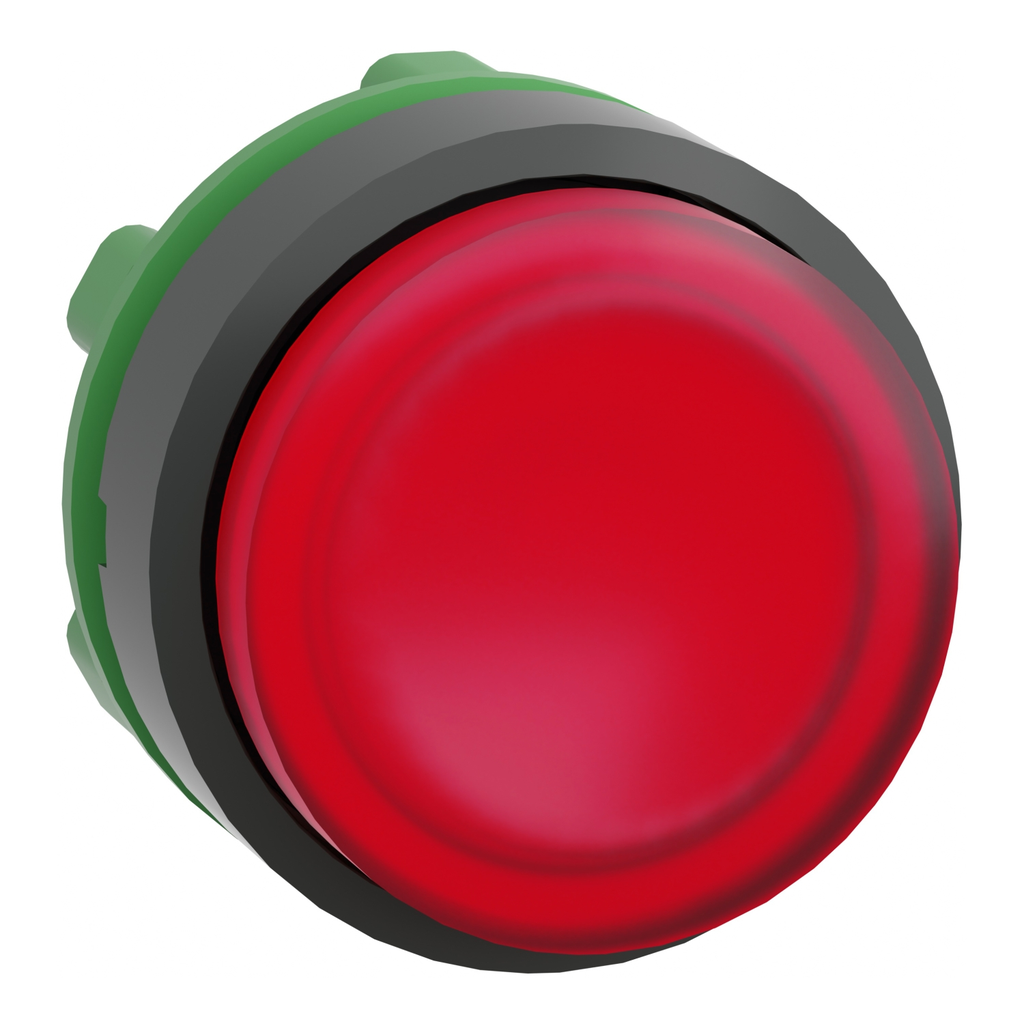

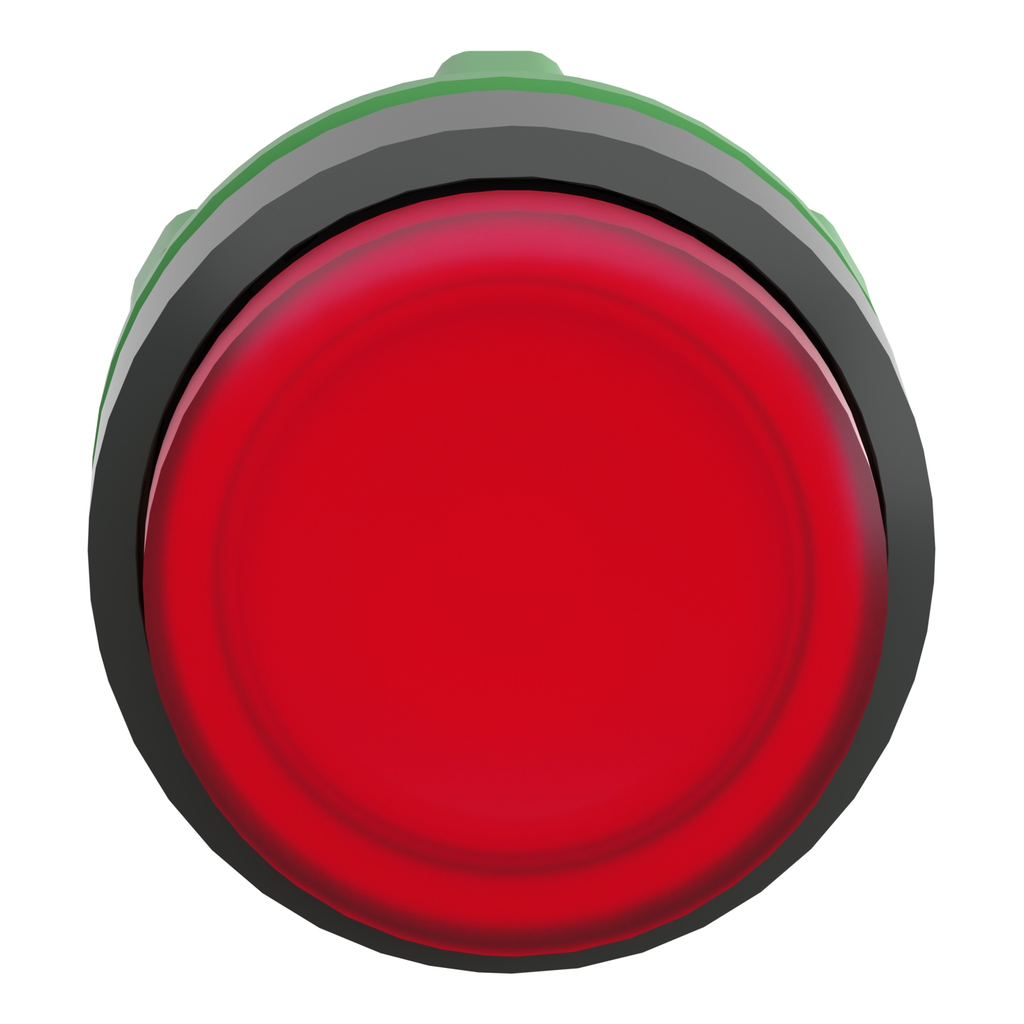

Square D ZB5AW143 22 mm Red Extended Momentary Illuminated Push Button Operator

Manufacturer: Square-D / Schneider | Catalog # ZB5AW143 | Cooper Electric Part # 382340
$9.56/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
This red projecting illuminated button head for universal LED provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to clear color. It is also distinguishable by touch due to projecting element, minimizing errors in machine control. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.

Technical Information

Action
MOMENTARY
Actuator
ILLUMINATED STANDARD BUTTON: EXTENDED
Applications
Integral LED
Bezel Material
Plastic
Enclosure
NEMA 1/2/3/4/4X/13
Head Type
Standard
Indicator
BLACK
Net Weight
0.018 kg
Operating Temperature
-40-70 Adegrees C
Size
0.87 in
Standard
CSA C22.2 No 14,EN/IEC 60947-1,EN/IEC 60947-5-1,EN/IEC 60947-5-4,GB 14048.5,JIS C8201-1,JIS C8201-5-1,UL 508
Storage Temperature
-40-70 degrees C
Type
Head for illuminated push-button

Manufacturer Information

Brand
Schneider Electric
Sub Brand
ZB5

General Product Info

12-Digit UPC
338911090989
Color
Red
Environmental Conditions
IP 65
GTiN
03389110909869
Product UPC
78590135525
Weight
0.018 kg

Dimensions

Height
29 mm
Warranty Length
18 mth
Width
29 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
BV,CSA,DNV,GL,LROS (Lloyds Register Of Shipping),UL Listed
Country of Origin
France
Overvoltage Category
  • class II conforming to IEC 60536
Electrical Composition Code
  • M1 6 single front mounting integral LED
  • M2 6 single and double front mounting integral LED
  • M2
CAD
  • https://download.schneider-electric.com/files?p_Doc_Ref=ZB5AW143_NEW_2024
  • https://download.schneider-electric.com/files?p_Doc_Ref=ZB5AW143_CAD
IP Degree Of Protection
  • IP66 IEC 60529
  • IP69
  • IP69K
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Carbon Footprint Of The Installation Phase A5
  • 0.004712121212121212
  • 0 kg CO2 eq.
Carbon Footprint Of The End Of Life Phase C1 To C4
  • 0 kg CO2 eq.
  • 0.0392969696969697
Standards
  • UL 508
  • IEC 60947-1
  • CSA C22.2 No 14
  • IEC 60947-5-1
  • GB 14048.5
  • IEC 60947-5-4
  • JIS C8201-5-1
  • JIS C8201-1
Station Name
  • XALD 1...5 cut-outs
  • XALK 2...5 cut-outs
Carbon Footprint Of The Manufacturing Phase A1 To A3
  • 0.1 kg CO2 eq.
  • 0.11850000000000001
Nema Degree Of Protection
  • NEMA 13
  • NEMA 4X
Accessories
  • ZB5AZ905
  • ZBY2101
  • ZBYLEG503001
  • ZBYP2101
Vibration Resistance
  • 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Market Segmentation
  • Commercial
  • Industrial
Persona Type Names
  • Charge Point Operator
  • End User
  • Contractor
  • Original Equipment Manufacturer
  • OEM - Control Panelbuilder
  • Panel Builder
  • Electrician
  • System Integrator
  • IT Channel Partner
Carbon Footprint Of The Use Phase B2 B3 B4 B6
  • 0 kg CO2 eq.
  • 0
Accessory Products
  • ZB5AZ905
  • ZBY2101
  • ZBYLEG503001
  • ZBYP2101
Persona Type Ids
  • BM9
  • EU
  • LC
  • OM
  • OM8
  • PB
  • SC
  • SI
  • VR
Customizable
  • no
  • 1
Carbon Footprint Of The Distribution Phase A4
  • 0.004900303030303031
  • 0 kg CO2 eq.
Resistance To High Pressure Washer
  • 7000000 Pa 55 °C 0.1 m
Market Segmentation Id
  • COMMERCIAL
  • INDUSTRIAL
Operator Profile
  • red projecting, unmarked
Shock Resistance
  • 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
  • 50 gn 11 ms) half sine wave ac
