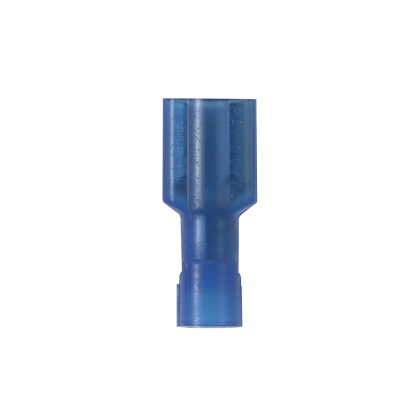

Product image for Panduit DNF14-205FIB-C Loose Piece Disconnect
Email

Panduit DNF14-205FIB-C Loose Piece Disconnect

Manufacturer: Panduit Corp | Catalog # DNF14-205FIB-C | Cooper Electric Part # 380840
$361.80/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Buy American Compliant Buy American Compliant Product Spec Sheet Product Catalog Page Engineering Drawing
The vibration resistant female disconnect is made of brass and is tin-plated. It is fully insulated in a blue, standard receptacle housing. It has a tab size of 0.187/0.205 x 0.020" (4.8/5.2 x 0.8 mm) and supports a wire range of 16-14 AWG (1.5-2.5 mm.). It is 0.78" (19.8 mm) long and 0.31" (7.9 mm) wide. The disconnect has a funnel entry barrel configuration and butted seam barrel. It comes in bottles of 100.

Technical Information

Barrel Type
Butted Seam
Color Coding
Blue
Conductor Size
14 AWG
Material
Brass
Max Operating Temperature
105 degrees C
Standard
CSA,E2186,UL
TC Connection
Funnel
Temperature Rating
221 degrees F
Type
Disconnect
Voltage
600 Volt
Wire Size
16-14 AWG

Packaging

Pkg Qty
100

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Term®

General Product Info

12-Digit UPC
074983826698
Color
Blue
Finish
Rust-Proof Plating, Vinyl Coated
GTiN
00074983826698
Product UPC
07498382669
UNSPSC
39121409

Dimensions

Height
0.22 Inch
Overall Length
0.78 in
Width
0.35 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
Mexico
Standards and Certifications
  • Standards Met: UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
