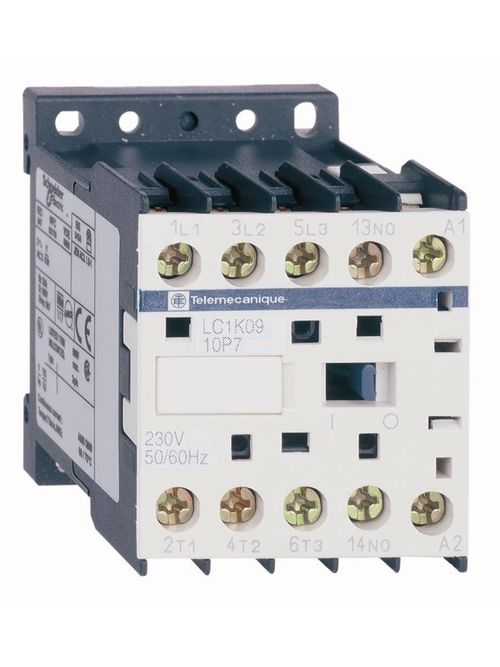

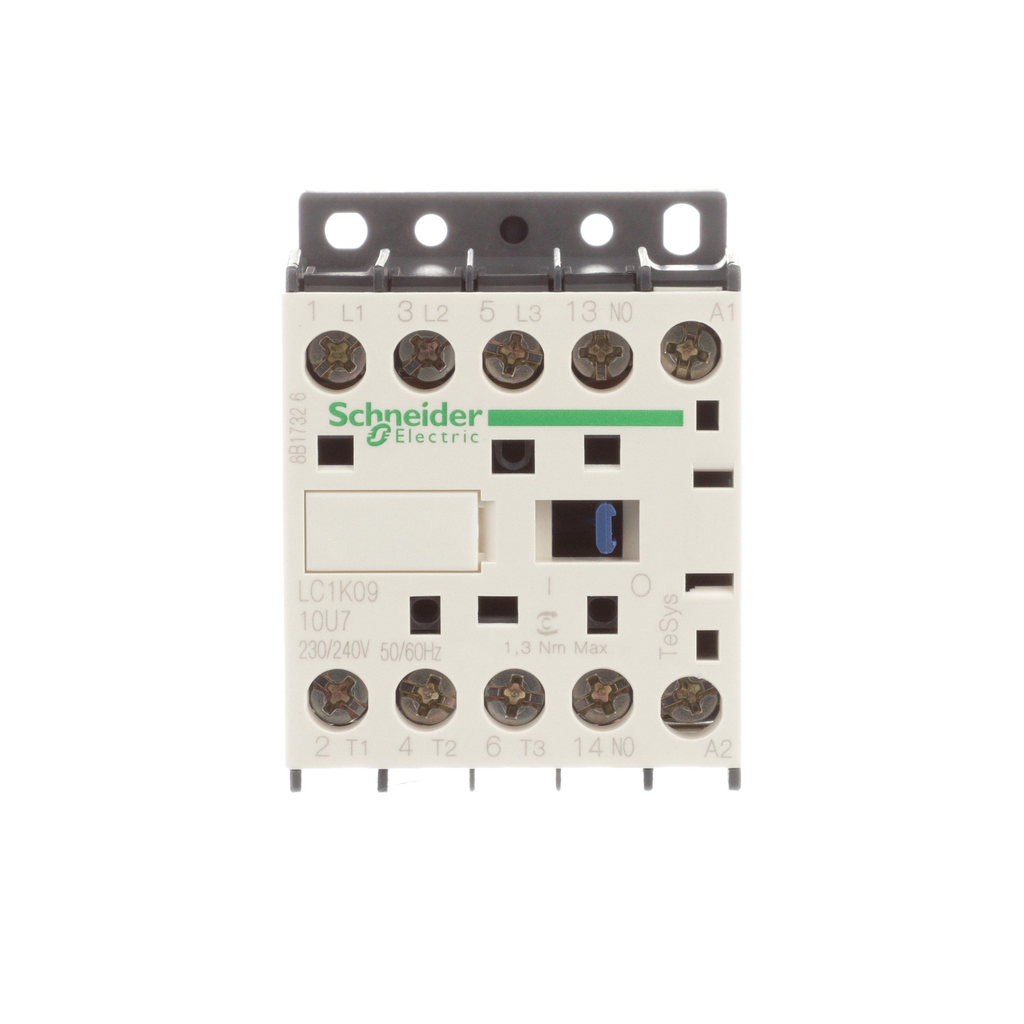

Product image for Square D LC1K0910U7 600 VAC 9 Amp 3-Pole 1NO Screw Terminal Full Voltage Non-Reversing IEC Contactor
Image thumbnail 0
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Image thumbnail 6
Image thumbnail 7
Email

Square D LC1K0910U7 600 VAC 9 Amp 3-Pole 1NO Screw Terminal Full Voltage Non-Reversing IEC Contactor

Manufacturer: Square-D / Schneider | Catalog # LC1K0910U7 | Cooper Electric Part # 380092
$103.35/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Opens Thursday 8:00am ET
20 available

For Delivery

Order by Thursday 5:00pm ET for delivery Friday
Not in local stock *
Check another branch
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3

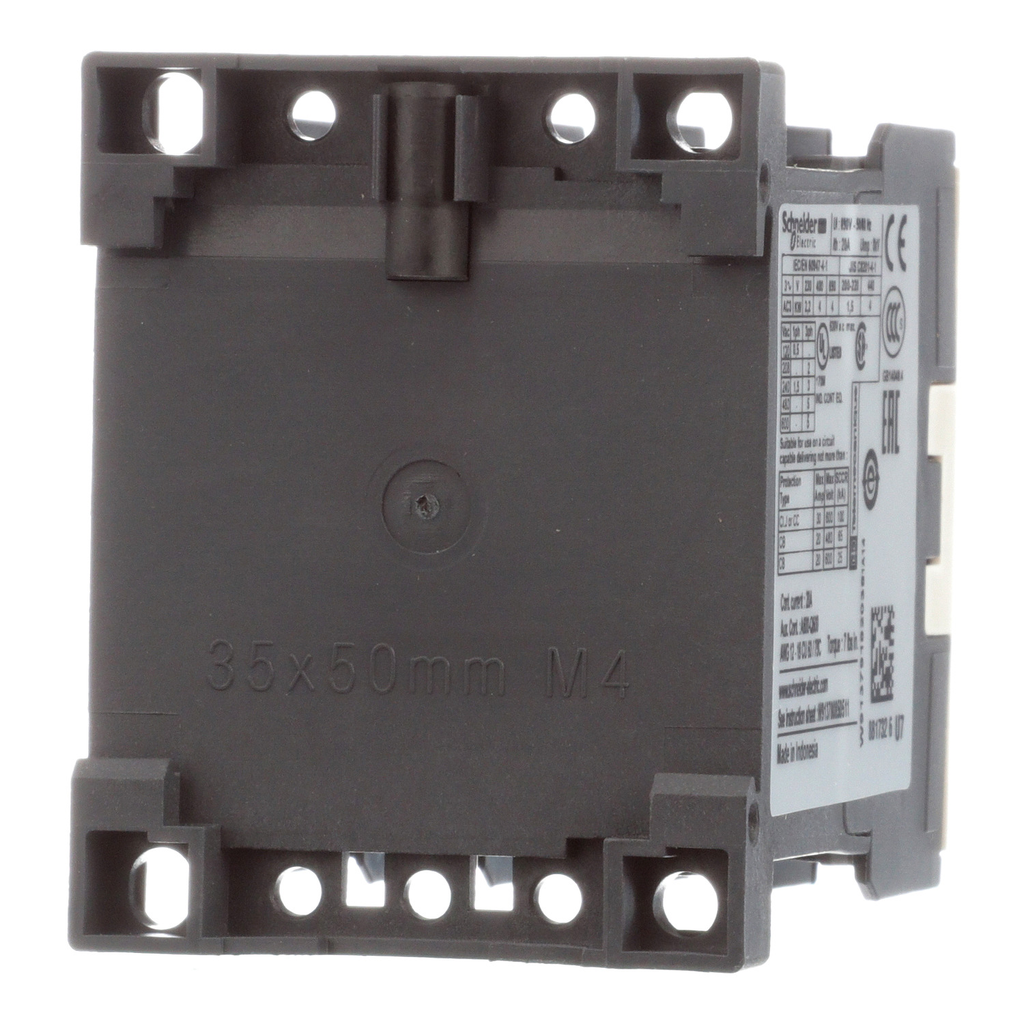

LC1K0910U7 is a compact 3-pole TeSys K contactor from Schneider Electric for motor applications. Rated 9A AC-3 4kW@400V, it includes a 240V 50/60Hz AC coil and 1NO auxiliary contact. LC1K0910U7 is a 3-pole TeSys K contactor from Schneider Electric for simple motor applications rated up to 4kW@400V. Very compact, DIN-rail compatible, with connections by screw clamp terminals, it includes a 240V 50/60Hz AC coil and 1NO built-in auxiliary contact. Available worldwide, it complies with multi-standards (IEC, UL, CSA, CCC, EAC, Marine) and is certified Green Premium (RoHs/Reach). Very compact, 45mm wide, for DIN-rail and panel mounting. Provides a control circuit compatible with 50Hz and 60Hz supplies and 1NO built-in auxiliary contact. Optimized for simple power applications. Can be completed with auxiliary contact blocks (LA1K, LA2K) and thermal relays (LR2K).

Technical Information

Applications
CONTROL,RESISTIVE LOAD-MOTOR CONTROL
Coil Voltage
230 to 240@50/60Hz V
Contact Configuration
1 NO,3 NO
Contact Rating
20 A 50 AC POWER CIRCUIT-10 A 50 AC SIGNALLING CIRCUIT
Impedance
3 MOhm - Ith 20 A 50 Hz For Power Circuit
Operating Cycles
3600 cyc/h
Range
TeSys
Size
3P
Standard
CSA C22.2 No 60947-4-1,EN/IEC 60947-4-1,GB/T 14048.4,JIS C8201-4-1,UL 60947-4-1
Type
Contactor

Manufacturer Information

Brand
Schneider Electric
Sub Brand
TESYS K

General Product Info

12-Digit UPC
389110490346
GTiN
03389110490343
Product UPC
78590188297

Dimensions

Depth
57 mm
Height
58 mm
Warranty Length
18 mth
Width
45 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Certifications
CB Scheme,CCC,CE,CSA,EAC,UKCA,UL
Country of Origin
Indonesia
Prop 65
  • WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • LA1KN22
  • LA1KN11
  • LA1KN40
  • LA4KA1U
  • LA1KN31
  • LA1KN20
  • LA1KN04
  • LA4KE1UG
  • LA1KN02
  • LA1KN13
  • LA9D90
  • LA1KN22M
  • LA1KN11M
  • LA2KT2E
  • LA2KT2U
Cross Sell Products
  • GV2ME14
  • LR2K0314
  • LR2K0316
  • GV2LE14
