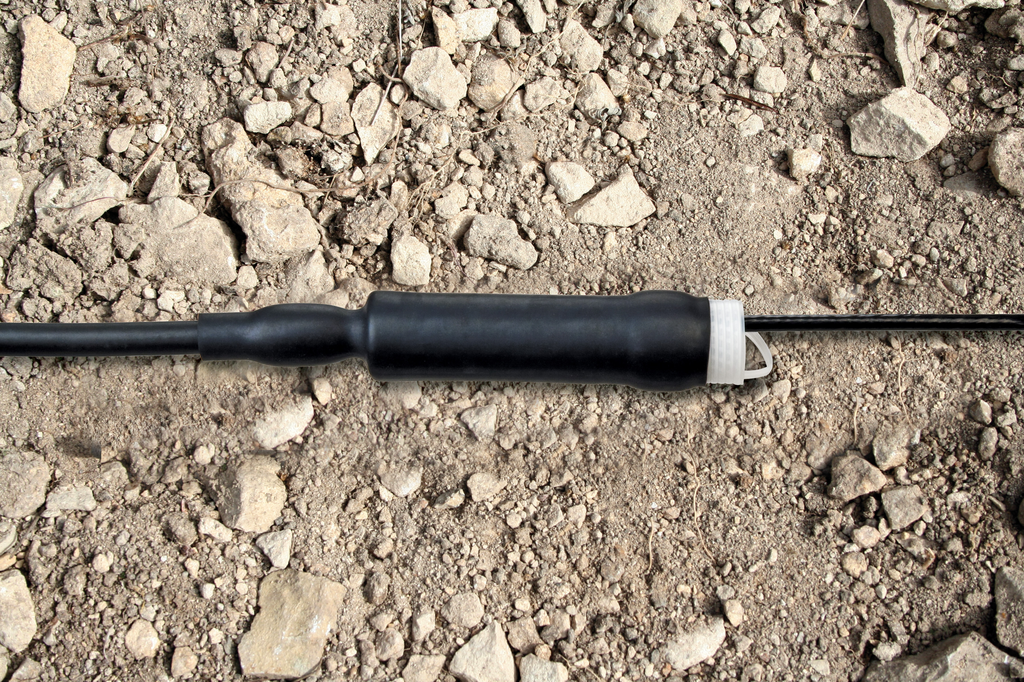

Product image for 3M QSLV-M(2-500) Low Voltage Cold Shrink Insulators
Email

3M QSLV-M(2-500) Low Voltage Cold Shrink Insulators

Manufacturer: 3M | Catalog # 7000058805 | Cooper Electric Part # 378917
$114.10/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Closes 5:00pm ET
0 available

For Delivery

Not in local stock *
Check another branch
*Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Safety Data Sheet
The 3M™ Cold Shrink Quick Splice Low Voltage provides quick, reliable insulation and protection for secondary low-voltage splices. The 8-2/0 tube fits 2 AWG to 500 kcmil. Mastic rings at each end provide remarkably wide wire range.

Technical Information

Cable Type
Power Cable
Conductor Size
400 kcmil
Material
Aluminum
Number of Conductors
3
Size
1 AWG; 1/0 AWG; 2 AWG; 2/0 AWG; 250 kcmil; 3/0 AWG; 300 kcmil; 350 kcmil; 4/0 AWG; 400 kcmil; 500 kcmil
Splice Type
Inline
Type
Cold Shrink Splice
Voltage
1 kV

Manufacturer Information

Brand
3M

General Product Info

12-Digit UPC
051128572375
Color
Black
GTiN
00051128572375
Product Type
Splice
Product UPC
05112857237

Dimensions

Diameter
41 mm
Overall Length
108.0 mm

Certifications and Compliance

Country of Origin
USA
Features
  • Sleeve is made of EPDM rubber which contains no chlorides nor sulfur, sealing mastic provides a water-resistant sealing
  • The third, center segment of the core remains inside the cold shrink tube, acting as a support structure
  • Open-ended tubular sleeves with a sealing mastic on each end for range taking and water resistant tight seal
  • Factory-expanded for easy installation
  • For direct-bury, secondary low-voltage, non-shielded cable splices
  • Rated for up to 1 kV applications
