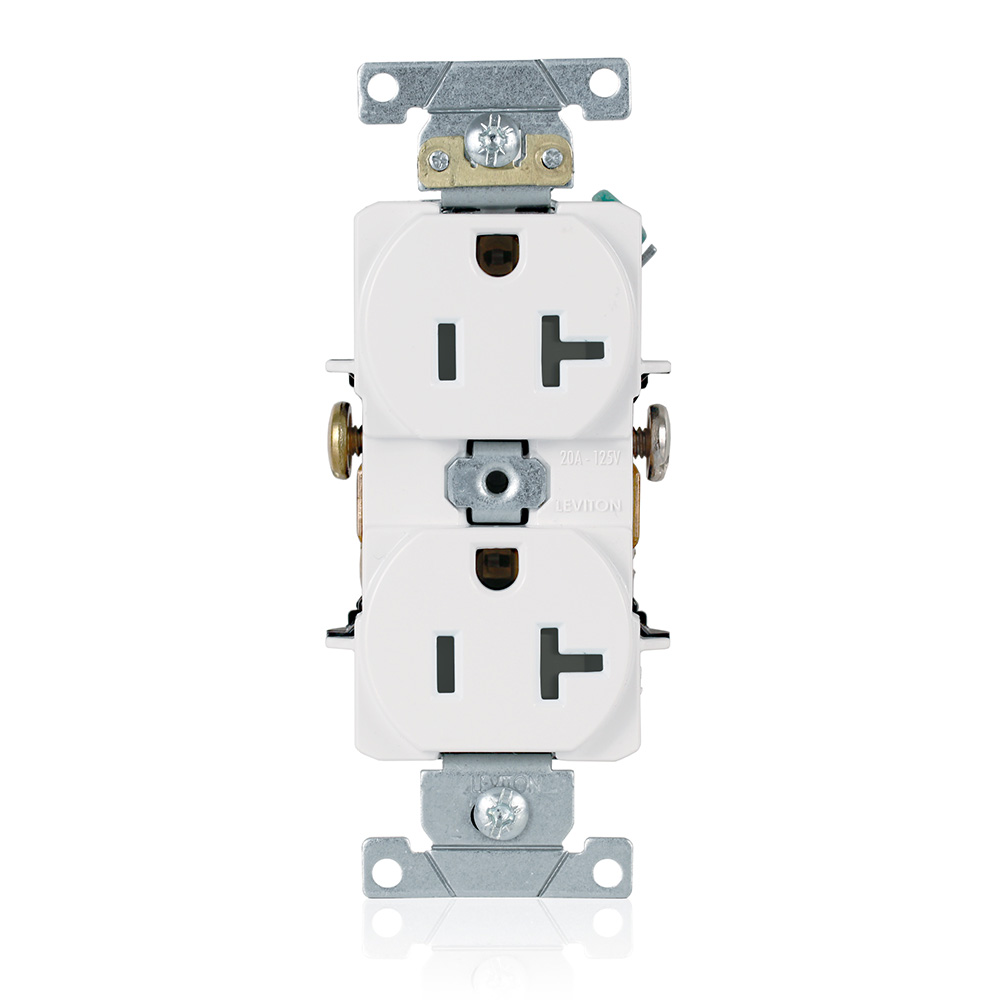

Product image for Leviton 5342-W 20 Amp 125 Volt NEMA 5-20R 2-Pole 3 Wire Heavy Duty Specification Grade Straight Blade White Duplex Recptacle
Image thumbnail 0

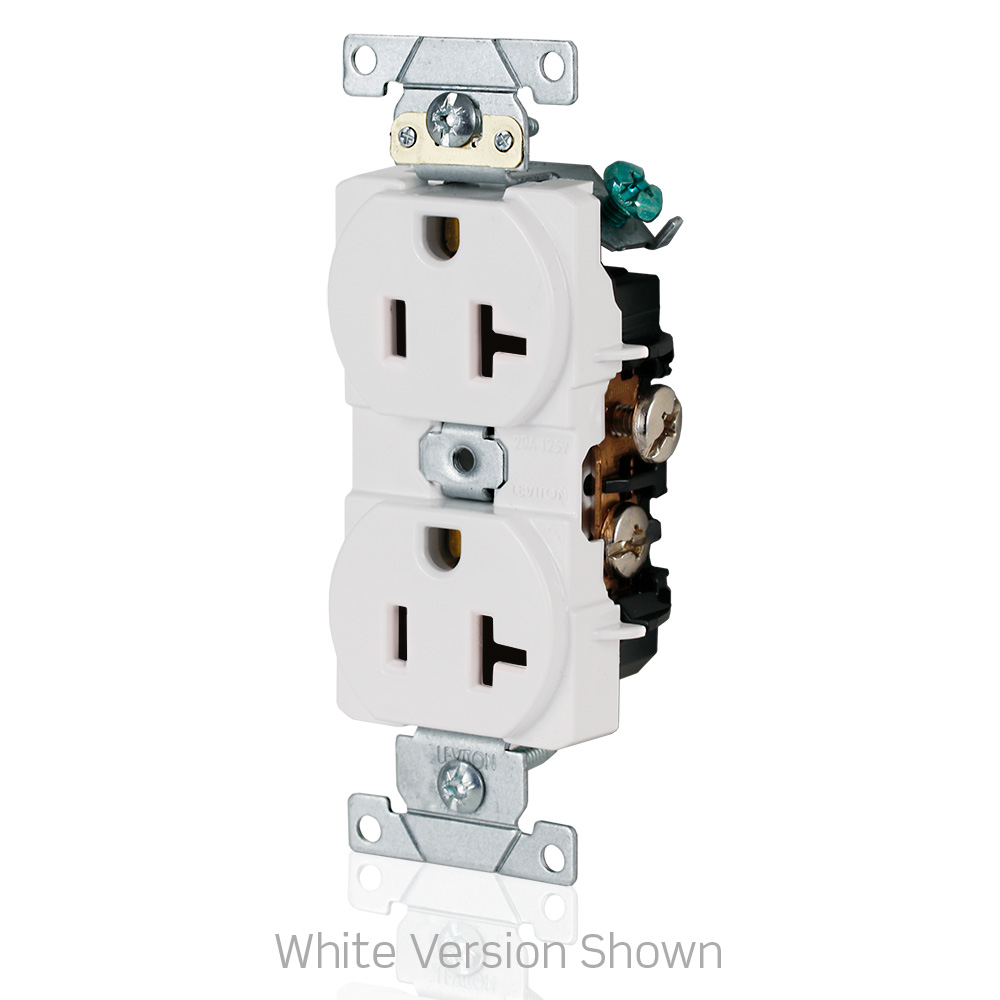

Image thumbnail 1
Email

Leviton 5342-W 20 Amp 125 Volt NEMA 5-20R 2-Pole 3 Wire Heavy Duty Specification Grade Straight Blade White Duplex Recptacle

Manufacturer: Leviton Mfg Co | Catalog # 5342-W | Cooper Electric Part # 377955
$29.61/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Safety Data Sheet Product Brochure
Duplex Receptacle Outlet, Heavy-Duty Industrial Specification Grade, Smooth Face, 20 Amp, 125 Volt, Side Wire,NEMA 5-20R, 2-Pole, 3-Wire, Self-Grounding - White

Technical Information

Amperage
20 Amp
Applications
For Commercial Application
Body Material
Thermoplastic Nylon
Conductor Size
14-10 AWG
Connection Type
Side Wired
Device Type
Duplex Receptacle Outlet
Dielectric
2000 V
Dielectric Strength
2000 V (Min)
Enclosure
WD-6
Face Material
Nylon
Flamability Class
Rated V-2 Per UL 94
Grade
Heavy-Duty Industrial Specification
Grounding
Self-Grounding
Horsepower
1 hp
Material
Polybutylene
Mounting Type
Wall Box
NEMA
WD-1
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
46 H x 1.55 W x 1.12 D IN
Standard
ANSI C-73
TC Connection
Push-In and Side Wired
Temperature Rating
-40 degrees C to 60 degrees C
Temperature Rise
200 %
Termination Type
Side Wire
Torque
14 lb-in
Type
Duplex Outlet,Straight Blade
Voltage
125 Volt
Wire Count
3
Wire Size
14-10 AWG

Manufacturer Information

Brand
Leviton
Sub Brand
INDUSTRIAL RECEPTACLES

General Product Info

12-Digit UPC
078477788165
Color
White
Environmental Conditions
Flammability (Rated V-2 Per UL94)
GTiN
00078477788165
Product UPC
07847778816

Dimensions

Warranty Length
10 yr

Certifications and Compliance

Country of Origin
Mexico
Features
  • Levitons line of Extra Heavy-Duty Industrial Grade receptacles are designed and manufactured to withstand the harsh conditions typically associated with industrial environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, hospital grade, etc., these Industrial Grade devices are the electrical contractor's choice for use in factories, schools, hospitals and commercial office buildings.
Color Variations
  • Brown
NEMA
  • 5-20R
