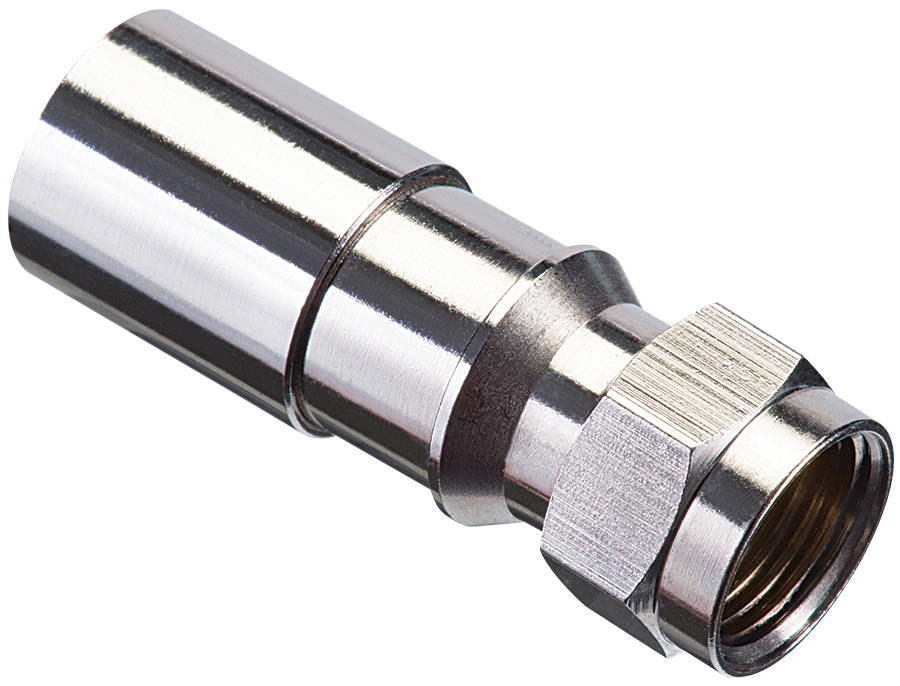

Ideal 92-651 RG6 Reg Tri Quad Compression Connector 10/Pack

Manufacturer: Ideal Industries | Catalog # 92-651 | Cooper Electric Part # 376622
$113.00/c (100 ea)
ea
Order in multiples of 10 (pack qty)
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet
The IDEAL RTQ™ XR™ series of F connectors offer a single connector solution to cover a range of coax types, including plenum rated versions. A patented compression sleeve design allows Regular (dual), Tri, and Quad shield cables all to be terminated within a single connector. All RTQ connectors have an all brass exterior and an inner O-ring to provide a robust, weather proof connection suitable for just about any application - indoors or outdoors.RG 59/6/6Q sized connectors are available for use in applications and installations from 5MHz to 3GHz, including CATV, satellite, HDTV and other A/V based applications. An internal sealing compression sleeve prevents moisture from entering the backside of the connector and aids in cable retention.All RTQ™ connectors require an industry standard 1/4. x 1/4. cable preparation and are permanently attached to the cable when using an IDEAL OmniSeal™ Pro or LinearX® compression tool.

Technical Information

Cable Type
RG-6/6Q RTQ™ and Plenum 6/6Q RTQ™
Connection Type
Compression
Impedance
75 ?
Material
Brass

Manufacturer Information

Brand
Ideal Industries

General Product Info

12-Digit UPC
783250926510
Color
Nickel Plated
GTiN
00783250926510
Product UPC
78325092651

Certifications and Compliance

CA Prop65 Warning
WARNING: Cancer and Reproductive Harm -  www.P65Warnings.ca.gov.
Features
  • Accepts RG-6/ RG-6 Quad/ RG-6 Plenum/ RG-6 Plenum Quad coax cables
  • Accepts RG-6/RG-6 Quad/RG-6 Plenum/RG-6 Plenum Quad coax cables
  • 1) Prepare RG-6 coax with a 1/4 x 1/4 strip, fold back the braiding. For RG-6 Quad, remove the outer foil layer and fold back both layers of braiding.
  • 2) Slide the connector on to the cable until the white dielectric is flush with the bottom of the nut.
  • 3) Place connector in IDEAL compression tool with standard F compression length setting and terminate.
  • 4) During termination, the body will compress(get shorter) and permanently secure the coax inside of the connector.
  • 5) Attach connector to device.
  • RTQ™ XR™ design allows Regular/Tri/Quad shield and plenum cables to work in a single connector no need to carry cable specific connectors
  • Designed for use in cable and satellite TV installations
  • WeatherProof™ - internal O-ring and patented back seal prevent moisture migration for indoor/outdoor use
  • Industry standard 21mm compressed length works with non-IDEAL compression tools
  • All brass, with nickel plated bodies
  • Designed for optimal performance on 75? coaxial cables
  • >40 pounds cable retention on all models
  • 7/16 nut diameter with 3/8-32 thread
