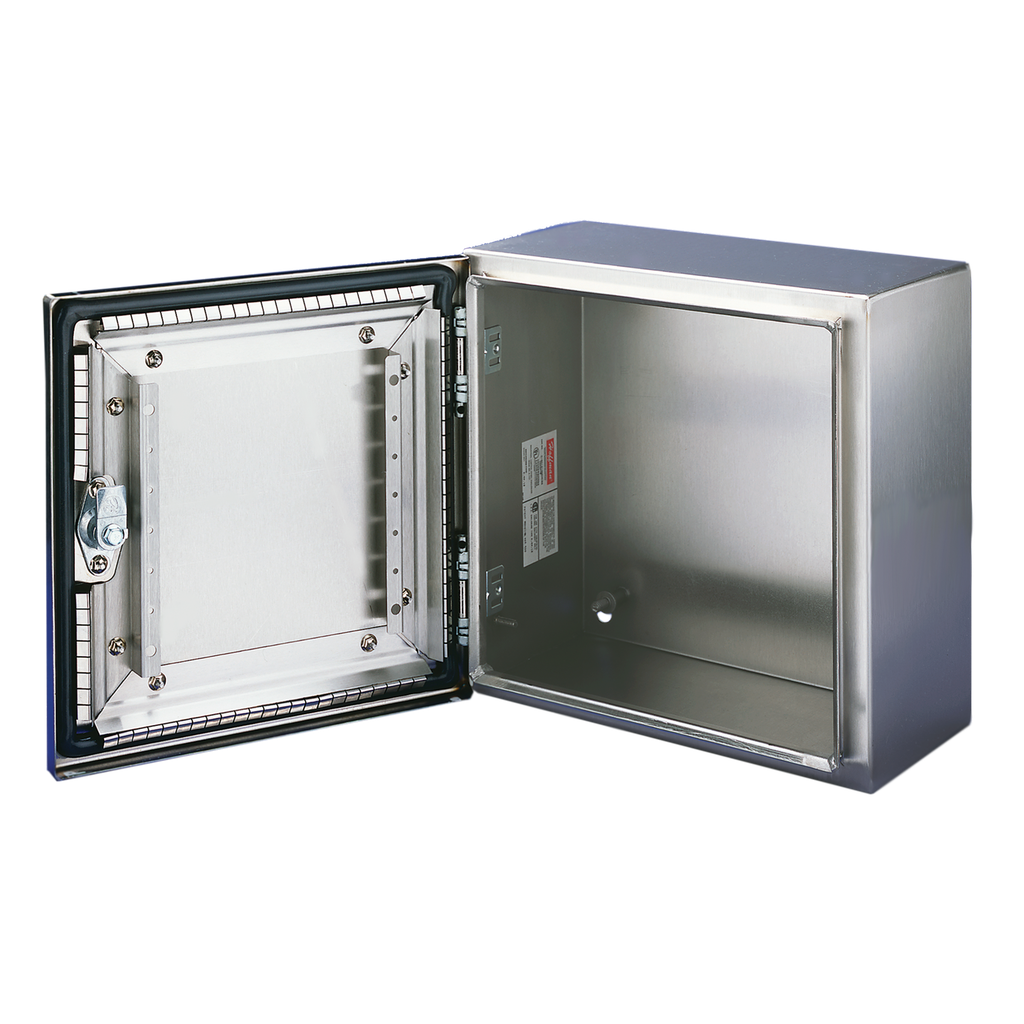

Product image for Hoffman CSD362412EMCSS CONCEPT EMC, Type 4X, 36" x 24" x 12", SS Type 304
Email

Hoffman CSD362412EMCSS CONCEPT EMC, Type 4X, 36" x 24" x 12", SS Type 304

Manufacturer: Hoffman | Catalog # CSD362412EMCSS | Cooper Electric Part # 376482
$7,296.88/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
Use Concept EMC Enclosures with their convenient quarter-turn latches in corrosive indoor or outdoor applications to contain stray electromagnetic interference (EMI) signals produced by internal components and to shield those components from external EMI/RFI interference.

Technical Information

Applications
Controls and Drives; Corrosive Environments
Body Gauge
16
Body Thickness
1.59 mm
Door Gauge
14
IP Rating
66
Material
Stainless Steel
Number of Latches
2
Size
36.00x24.00x12.00 in
Standard
CSA File No. 42186: Type 4, 4X, 12,CUL Listed Per CSA C22.2 No 94; Type 4, 4X, 12; File No. E61997,IEC 60529, IP66,Mounting Brackets Required To Meet UL/CSA External Mounting Requirements.,NEMA/EEMAC Type 4, 4X, 12, 13,UL 508A Listed; Type 4, 4X, 12; File No. E61997,VDE IP66
Type
Stainless Steel Wall Mounted Industrial Enclosures

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
Concept

General Product Info

12-Digit UPC
783510260392
Color
Unpainted
Finish
Brushed
GTiN
00783510260392
Product UPC
78351026039
Weight
69 lb

Dimensions

Depth
12 Inch
Height
36 Inch
Length
41 Inch
Width
24 in
Features
  • Seams continuously welded and ground smooth
  • Minimum-width body flange provides maximum body opening
  • External formed 90-degree body flange
  • Panel mounting studs fit optional Concept panels and other accessories
  • Mounting holes in back of body for direct mounting or for optional external mounting brackets
  • Stainless steel hidden hinges
  • Easy-to-remove clip-style hinge pins
  • Removable corner formed door
  • Seamless foam-in-place gasket adjacent to spring finger EMC gasket
  • Quarter-turn latches with flush slotted insert
  • Self-grounding latch system with double seal
  • Integral body grounding stud
  • Furnished hardware kit includes panel mounting nuts, grounding hardware and sealing washers for wall-mounting holes
  • Installation instructions
