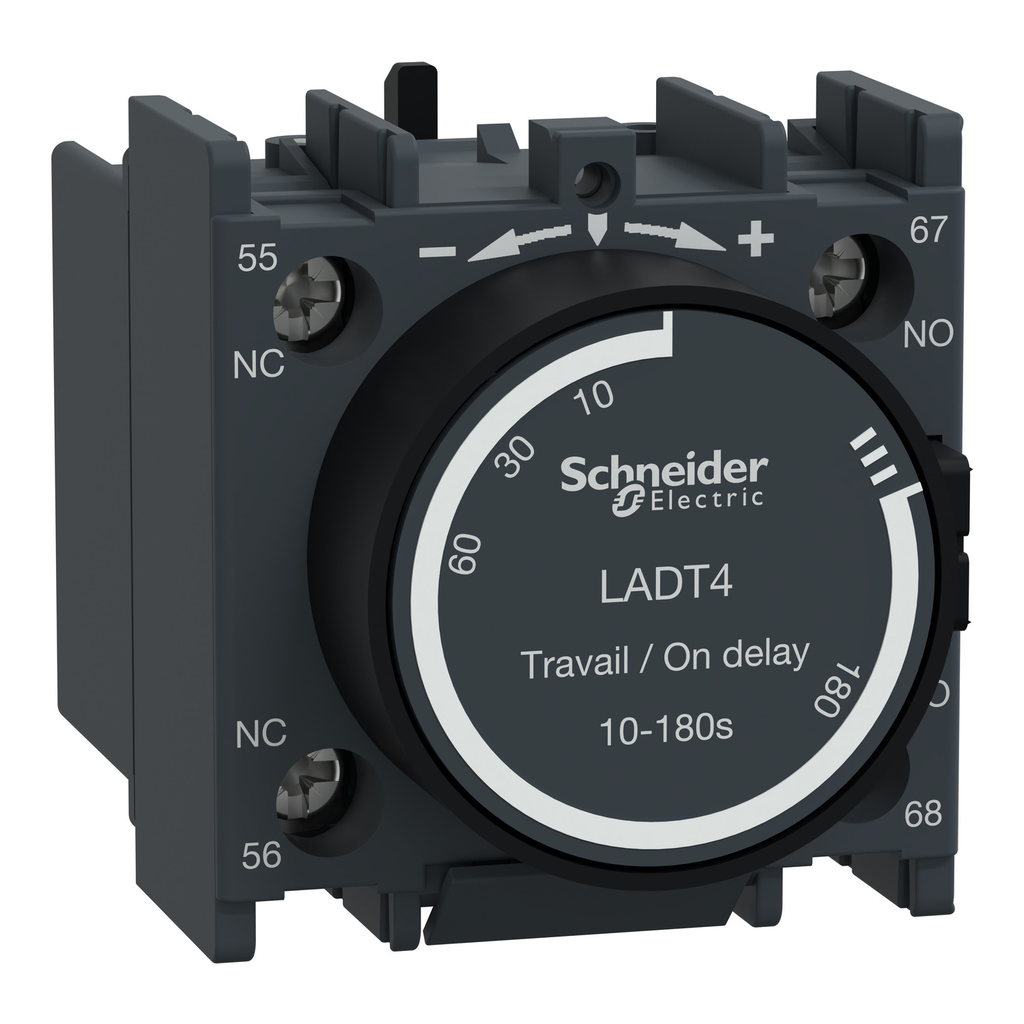

Square D LADT4 690 VAC 1NO 1NC 10 to 180 Second Pneumatic Time Delay Auxiliary Contact Block

Manufacturer: Square-D / Schneider | Catalog # LADT4 | Cooper Electric Part # 375290
$155.63/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3 Product Brochure
TeSys D time delay auxiliary contact block, for contactors LC1D, LC1F and control relays CAD. It provides 1NO+1NC contacts rated up to 10A 690V AC, On-delay setting range 10-180s, connection by screw clamp terminals. Clip-on front mounting, it procures high reliability and durability. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHs/Reach).

Technical Information

Applications
ON-DELAY AUXILIARY
Coil Voltage
690 V AC 25...400 HZ
Contact Configuration
1 NO + 1 NC
Contact Rating
10 A 60 AC
Operating Temperature
-5-60 Adegrees C
Range
TeSys
Size
2.40 in
Standard
EN/IEC 60947-5-1,GB/T 14048.5
Storage Temperature
-60-80 degrees C
TC Connection
SCREW CLAMP TERMINALS 1 1-2.5 MMAFLEXIBLE WITH CABLE END- SCREW CLAMP TERMINALS 1 1-2.5 MMAFLEXIBLE WITHOUT CABLE END- SCREW CLAMP TERMINALS 2 1-2.5 MMAFLEXIBLE WITH CABLE END- SCREW CLAMP TERMINALS 2 1-2.5 MMAFLEXIBLE WITHOUT CABLE END- SCREW CLAMP TERMINALS 1 1-2.5 MMASOLID WITH CABLE END- SCREW CLAMP TERMINALS 1 1-2.5 MMASOLID WITHOUT CABLE END- SCREW CLAMP TERMINALS 2 1-2.5 MMASOLID WITH CABLE END- SCREW CLAMP TERMINALS 2 1-2.5 MMASOLID WITHOUT CABLE END
Type
Time delay auxiliary contact block
Voltage
690 Volt

Manufacturer Information

Brand
Schneider Electric
Sub Brand
TeSys D;TeSys Deca

General Product Info

12-Digit UPC
389110385970
Color
Gray
GTiN
03389110385977
Product UPC
78590121383

Dimensions

Depth
61 mm
Height
48 mm
Warranty Length
18 mth
Width
44 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: Cancer - www.P65Warnings.ca.gov
Certifications
CCC,CSA,EAC,IECEE CB Scheme,UKCA,UL
Country of Origin
France
Prop 65
  • WARNING: Cancer - www.P65Warnings.ca.gov
Compatible Products
