STI LCC200 2IN PLASTIC PIPE

Manufacturer: Specified Technologies Inc | Catalog # LCC200 | Cooper Electric Part # 375275
$19.78/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Closes 5:00pm ET
3 available

For Delivery

Order by 5:00pm ET for delivery tomorrow
Not in local stock *
Check another branch
Product Spec Sheet

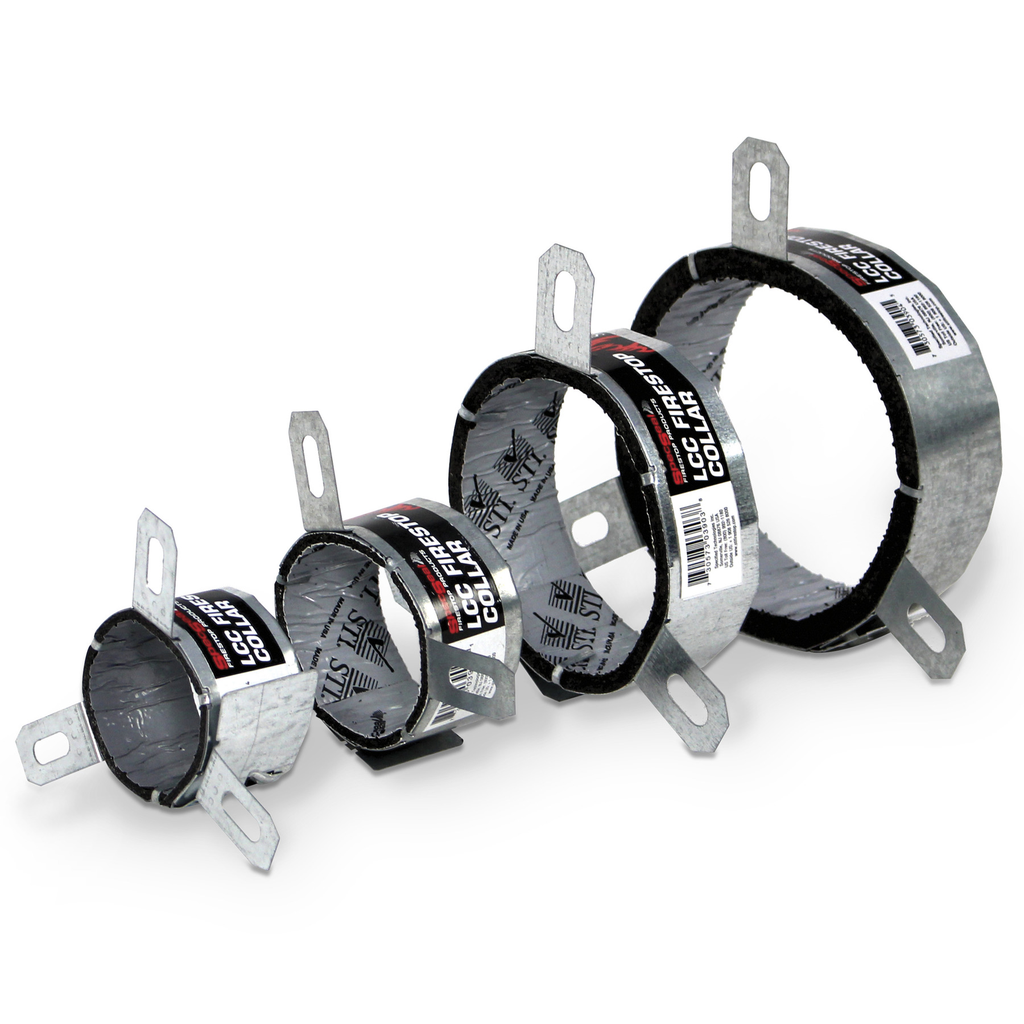

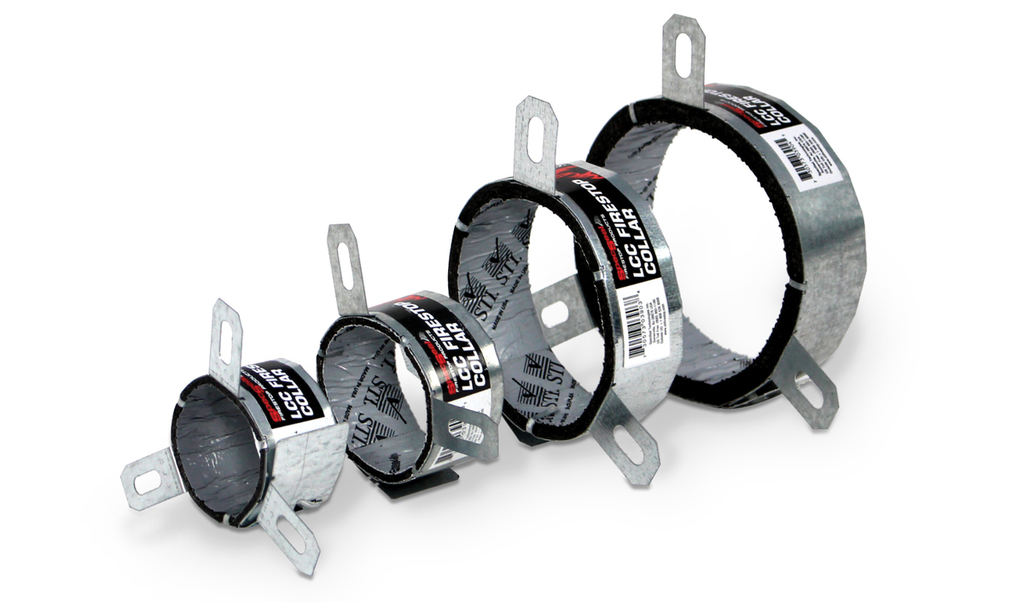

SpecSeal LCC Firestop Collars are factory-manufactured firestop devices sized to plastic pipes of up to 4 in. Trade Size. LCC Collars consist of a restraining collar with a factory applied intumescent ensuring the correct amount of material is applied every time. Simplify the process of firestopping combustible piping by taking the guess work out of estimation with SpecSeal LCC Firestop Collars.

Technical Information

Material
Steel
Type
Firestop Collar

Manufacturer Information

Brand
SpecSeal

General Product Info

12-Digit UPC
730573039021
Color
Silver
Product UPC
73057303902
Weight
0.24 lb

Dimensions

Height
1-1/2 Inch
Length
4.4 Inch
Width
2.8 in

Certifications and Compliance

Country of Origin
USA
Features
  • The firestop system shall be a factory assembled firestop collar utilizing a molded, flexible intumescent insert. The intumescent insert shall provide a minimum of 30x free expansion and shall contain no water soluble expansion ingredients. The specified material shall be approved for a wide range of applications including PVC, PVC Foam Core (ccPVC), CPVC, RNC, PP, FRPP, FRP, HDPE, PE, PVDF, ABS and ABS Foam Core (ccABS) when used by itself or in combination with other products from the same manufacturer. The collar shall be UL Certified and tested to the requirements of ASTM E814 (UL1479) and CAN/ULC-S115.
  • Sized for 1-1/2 in., 2 in., 3 in., & 4 in. trade size combustible pipes., Rapid expansion=closes off burning pipes quickly., Economical: lower installed cost than fabricating your own., High volume char: expands up to 60 times.
  • Rapid expansion - closes off burning pipes quickly
  • Small profile - use it in all the tight spots
  • Flexible & durable - no loose flakes (eye hazards)
  • Water resistant - no water soluble or hygroscopic ingredients
  • Economical - lower installed cost
  • High volume char - expands up to 60 times
  • Sized for 1-1/2\", 2\", 3\", & 4\" Trade Size Combustible Pipes
  • Tested in a variety of construction types
Standards and Certifications
  • ASTM E814
  • UL 1479
  • CAN/ULC S115
  • ASTM E814 (UL1479)
  • CAN/ULC-S115
  • FM Approved: YES
  • UL Certified Firestop: YES
  • FBC System Compatible: No
Applications
  • Plastic Pipe
Properties
  • Finished Product
  • Intumescent
  • Low VOC
  • No Expiration
  • Permanent
Construction Type
  • LCC Collars are suitable for use in all common constructions including concrete floors, concrete over steel deck, concrete walls, concrete block walls, gypsum board walls, as well as wood floor assemblies.
Industry
  • Residential
  • Commercial
  • Industrial
  • Construction
  • Government
Recommended Use
  • SpecSeal LCC Collars are suitable for use in all common constructions including concrete floors, concrete over steel deck, concrete walls, concrete block walls, gypsum board walls, as well as wood floor assemblies.
