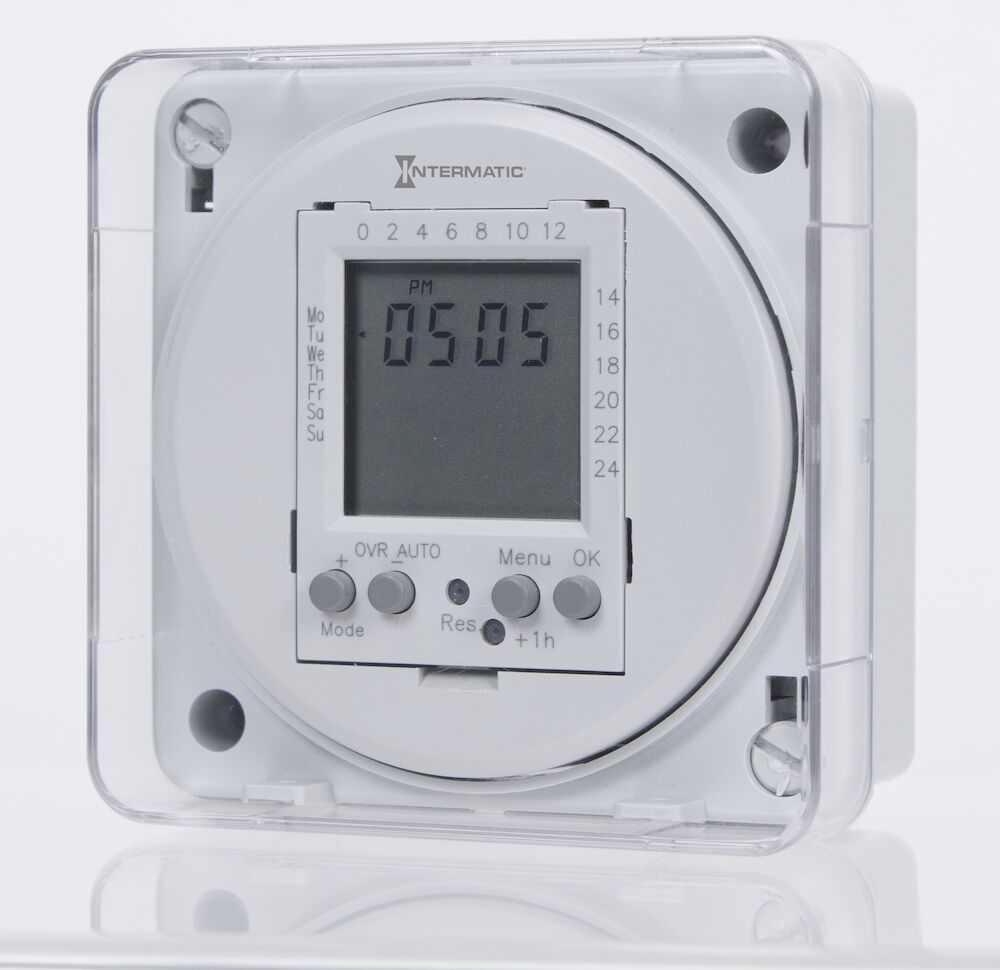

Product image for Intermatic FM1D20E-24 7-Day 24 VAC 50/60 Hz 24 VDC 16 Amp 2-Circuit Flush Mount Timer Module
Image thumbnail 0

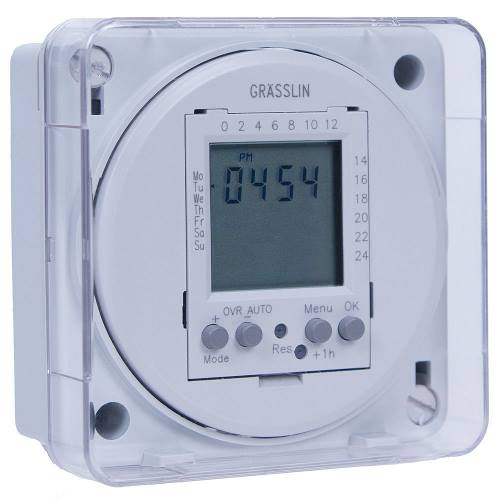

Image thumbnail 1

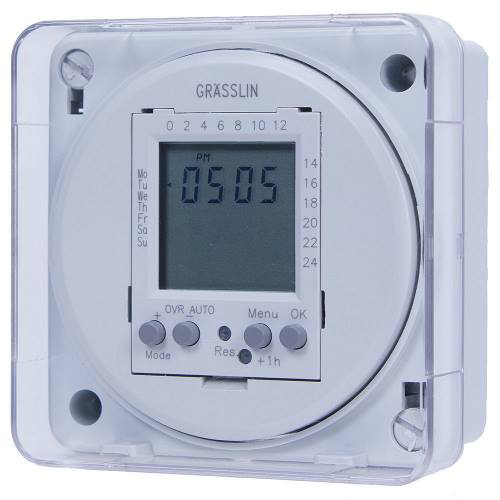

Image thumbnail 2
Email

Intermatic FM1D20E-24 7-Day 24 VAC 50/60 Hz 24 VDC 16 Amp 2-Circuit Flush Mount Timer Module

Manufacturer: Intermatic, Inc | Catalog # FM1D20E-24 | Cooper Electric Part # 374973
$331.07/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
The FM1D20 Series Electronic Time Controls are for ventilating, heating, cooling, lighting or other electrical loads in commercial and industrial applications. These one-channel time switches are programmable for 24-hour or 7-day schedules. They are intended for either panel, surface, flush, or DIN rail mounting. Flush and surface/DIN rail (A & E models) are completely enclosed in a plastic housing and include a terminal cover, dust cover and subbase for installation and hard wiring.

Technical Information

Action
SPDT
Applications
Aeration,Air Movement & Ventilation,Generator Exercising,Refrigeration Merchandiser,Septic Treatment
Connection Type
1/4 In Quick Connect
Contact Configuration
1 NO/1 NC
Contact Rating
16 AMP @ 277 VAC (Resistive NO), 12 AMP @ 120 VAC (Ballast NO), 8 AMP @ 240 VAC (Ballast NO), 16 AMP @ 277 VAC (Resistive NC), 8 AMP @ 24 VDC (NC)
Frequency
50/60 Hz
Input Voltage
24 V
Max Operating Temperature
131 degrees F
Min Operating Temperature
-13 degrees F
Mounting Type
Flush Mount
Number of Circuits
1
Number of Poles
1 Pole
Operating Temperature
131 degrees F
Power Consumption
1.4 W
Size
2.83 HEIGHT X 2.83 WIDTH IN, 72 HEIGHT X 72 WIDTH MM
Standard
CULus Recognized E10694,California TITLE 24 Compliant,HVACR,Title CA 20 Listed
Switch Type
SPDT
TC Connection
1/4 IN Quick Connect
Type
One Channel Electronic
Voltage
24 VAC//VDC
Wattage
1000 Watt

Manufacturer Information

Brand
Intermatic
Sub Brand
Grasslin

General Product Info

12-Digit UPC
078275121676
GTiN
00078275121676
Product UPC
07827512167

Dimensions

Depth
2.06 Inch
Height
2.83 Inch
Warranty Length
1 yr
Width
2.83 in

Certifications and Compliance

Country of Origin
China
Compliance
  • RU Certification File Number -> #E10694
Features
  • 24-Hour or 7-day applications
  • 20 Setpoint programs
  • Three preset adjustable block programs
  • Easy-to-follow menu driven programming
  • Manual override with status indication
  • Battery backup
  • Large LCD
  • Daylight Saving Time adjustment
  • A & E models come with clear dust cover
