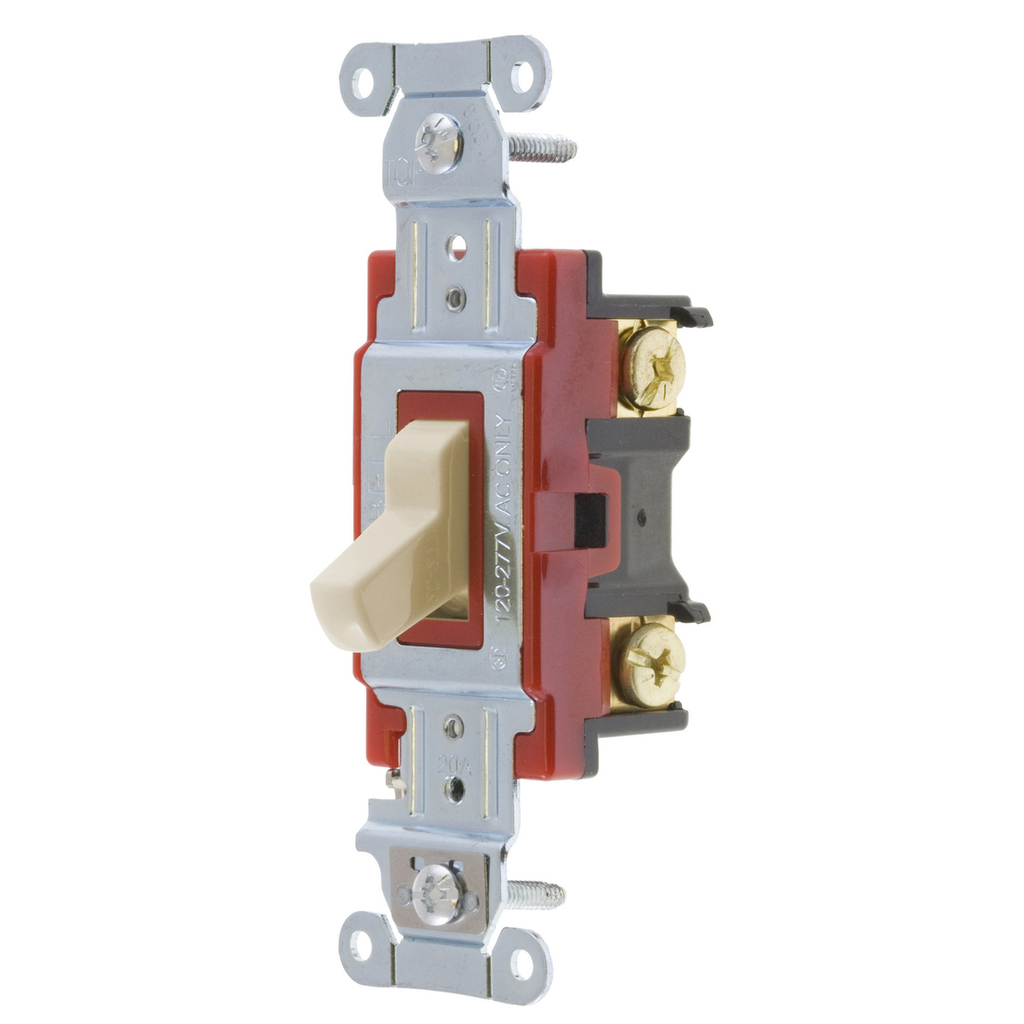

Hubbell 1224AL Hubbell-PRO 4-Way Toggle Switch 20A 120/277V, Almond

Manufacturer: Hubbell Wiring Device | Catalog # 1224AL | Cooper Electric Part # 374646
$22.66/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
Switches and Lighting Controls, Hubbell- PRO Series, Toggle Switches, General Purpose AC, Four Way, 20A 120/277V AC, Back and Side Wired , Almond

Technical Information

Actuator
Toggle
Amperage
20 Amp
Applications
Heavy Duty Industrial
Conductor Size
14-10 AWG
Contact Configuration
Two Position
Contact Rating
Per UL 20
Current
20 Amp
Enclosure
None
Grade
Industrial
Material
Thermoplastic
Number of Poles
2 Pole
Operating Cycles
50000
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
UL
Style
Four Way
TC Connection
Back and Side Wired
Type
General Purpose, Standard, Heavy Duty, 4-Way, 2-Position
Voltage
120-277 Volt
Wattage
5540 Watt
Wire Size
14-10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
AC Toggle Switches

General Product Info

12-Digit UPC
783585110035
Color
Almond
GTiN
00783585110035
Product Series
Heavy Duty
Product UPC
78358511003
Weight
0.2 lb

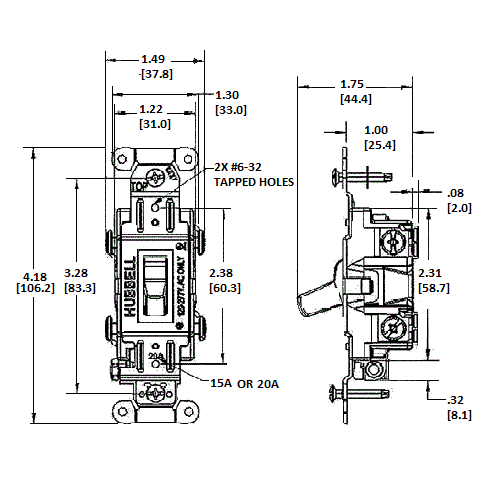

Dimensions

Height
1.83 Inch
Length
4.18 Inch
Width
1.49 in

Certifications and Compliance

Country of Origin
USA
Features
  • Steel, zinc plated bridge is corrosion resistant
  • Color Coded by Amperage makes inspection easy even when installed
  • Strip gauge for accurate wiring
