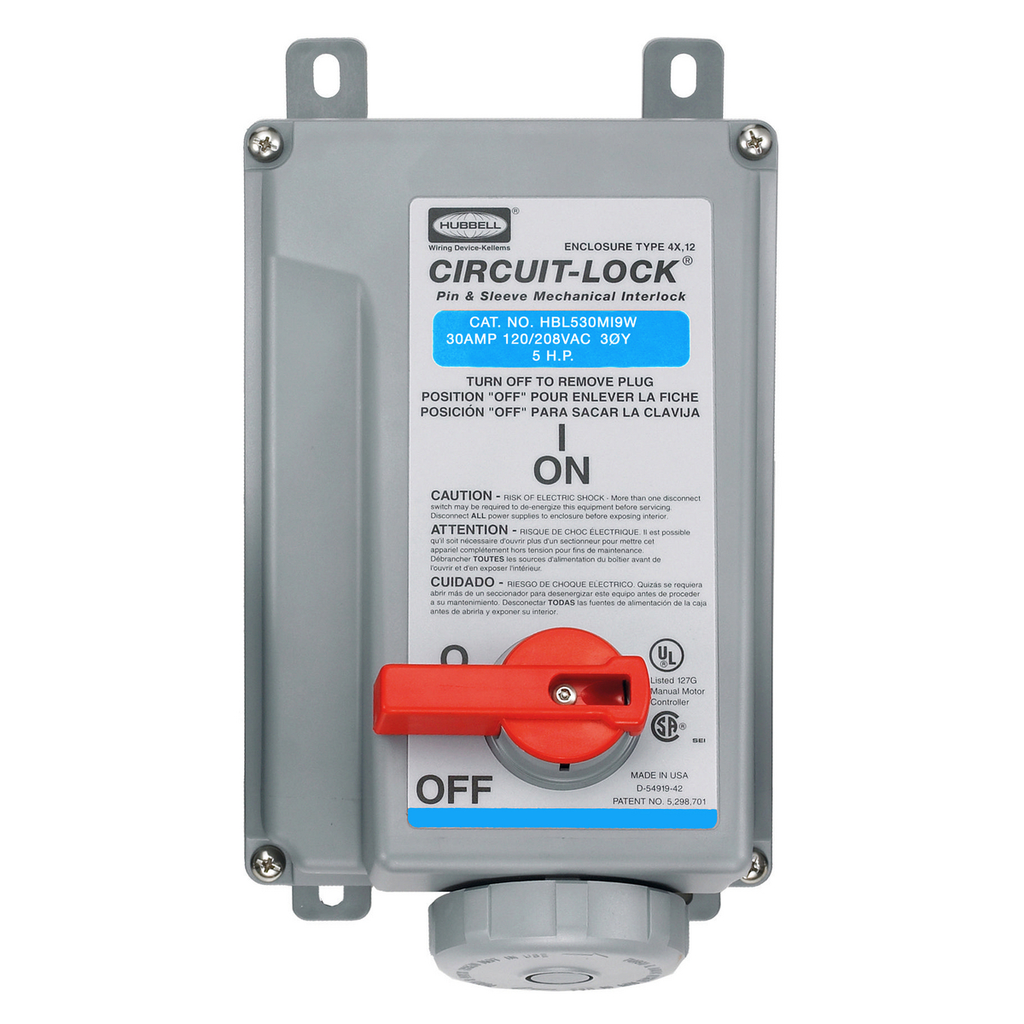

Product image for Hubbell HBL530MI9W Pin & Sleeve IEC Unfused Circuit-Lock® Mechanical Interlock, 30A 4P5W, 3ØY 120/208V, IP67, NEMA 4X, 12
Email

Hubbell HBL530MI9W Pin & Sleeve IEC Unfused Circuit-Lock® Mechanical Interlock, 30A 4P5W, 3ØY 120/208V, IP67, NEMA 4X, 12

Manufacturer: Hubbell Wiring Device | Catalog # HBL530MI9W | Cooper Electric Part # 373877
$2,422.13/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Installation / Instruction Manual Product Brochure
Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Female, Mechanically Interlocked Receptacle, 30A 3-Phase Wye 120/208V AC , 4-Pole 5-Wire Grounding, Terminal Screws

Technical Information

Amperage
30 Amp
Applications
For High Ampacity Watertight Connections
Conductor Size
12-8 AWG
Connection Type
Pressure Screw
Current
30 Amp
Material
Thermoplastic
Number of Phases
3 Phase
Number of Poles
4 Pole
Number of Wires
5 Wire
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
UL
Style
Standard Service
TC Connection
Pressure Plate
Terminal Type
Screw
Type
Single, IEC 309 Pin and Sleeve Device, Standard, 4-Pole, 5-Wire
Voltage
120/208 Volt
Wattage
6240 Watt
Wire Count
5
Wire Size
12-8 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Pin and Sleeve Devices

General Product Info

12-Digit UPC
783585406145
Color
Blue
Environmental Conditions
Watertight
GTiN
00783585406145
Product Series
Unfused Circuit,Lock
Product UPC
78358540614
Weight
6.4 lb

Dimensions

Height
7.4 Inch
Length
12-1/2 Inch
Width
7.9 in

Certifications and Compliance

Certifications
CSA Certified,CSA Certified.,UL Listed,UL Listed
Country of Origin
USA
Features
  • Large gears enclosed in a gear box
  • Lockable handle to meet OSHA Lockout/Tagout regulations
  • Pre-wired IEC Pin and Sleeve receptacle
  • Watertight
