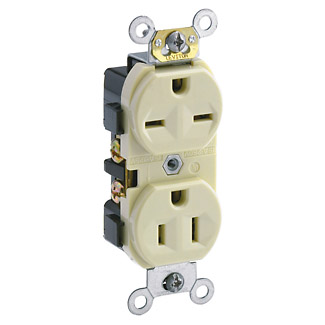

Product image for Leviton 5031-I 15 Amp 125/250 Volt NEMA 5-15R_6-15R 2-Pole 3 Wire Narrow Body Straight Blade Ivory Duplex Receptacle
Email

Leviton 5031-I 15 Amp 125/250 Volt NEMA 5-15R_6-15R 2-Pole 3 Wire Narrow Body Straight Blade Ivory Duplex Receptacle

Manufacturer: Leviton Mfg Co | Catalog # 5031-I | Cooper Electric Part # 3726
$25.48/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Safety Data Sheet Product Brochure
Duplex Receptacle Outlet, Commercial Specification Grade, Dual Voltage, Indented Face, 15 Amp, 125/250 Volt, Side Wire, NEMA 5-15R_6-15R, 2-Pole, 3-Wire, Self-Grounding - Ivory

Technical Information

Amperage
15 Amp
Applications
Commercial
AT Rated Voltage
1/2 hp
Body Material
Nylon
Conductor Size
14-10 AWG
Connection Type
Back and Side Wired
Device Type
Duplex Receptacle Outlet
Dielectric
2000 V
Dielectric Strength
2000 V Minimum
Face Material
Nylon
Flamability Class
Rated V-2 Per UL 94
Grade
Commercial
Grounding
Self-Grounding
Material
Nylon
Mounting Type
Wall Box
NEMA
WD-2,WD-6
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
46 H x 1.56 W x 19 D IN
Standard
ANSI C-73
TC Connection
Back & Side Wired
Temperature Rating
-40 degrees C to 60 degrees C
Temperature Rise
150 %
Termination Type
Side Wire
Type
Duplex Outlet,Straight Blade
Voltage
125 Volt
Wire Count
3
Wire Size
14-10 AWG

Manufacturer Information

Brand
Leviton
Sub Brand
Commercial Receptacles

General Product Info

12-Digit UPC
078477208007
Color
Ivory
Environmental Conditions
Flammability (Rated V-2 Per UL94)
GTiN
00078477208007
Product UPC
07847720800

Dimensions

Warranty Length
10 yr

Certifications and Compliance

Country of Origin
Mexico
NEMA
  • 5-15R_6-15R
Features
  • Levitons line of Heavy-Duty Specification Grade receptacles are designed and manufactured to withstand the most demanding environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, etc., these Commercial Grade devices are the electrical contractor's choice for use in hotels, schools, hospitals and commercial office buildings.
Color Variations
  • Brown
