3M 560-BULK 500/Bag 5000/Box Insulation Displacement Connector (7000005878)

Manufacturer: 3M | Catalog # 7000005878 | Cooper Electric Part # 371820
$0.38/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Product Brochure

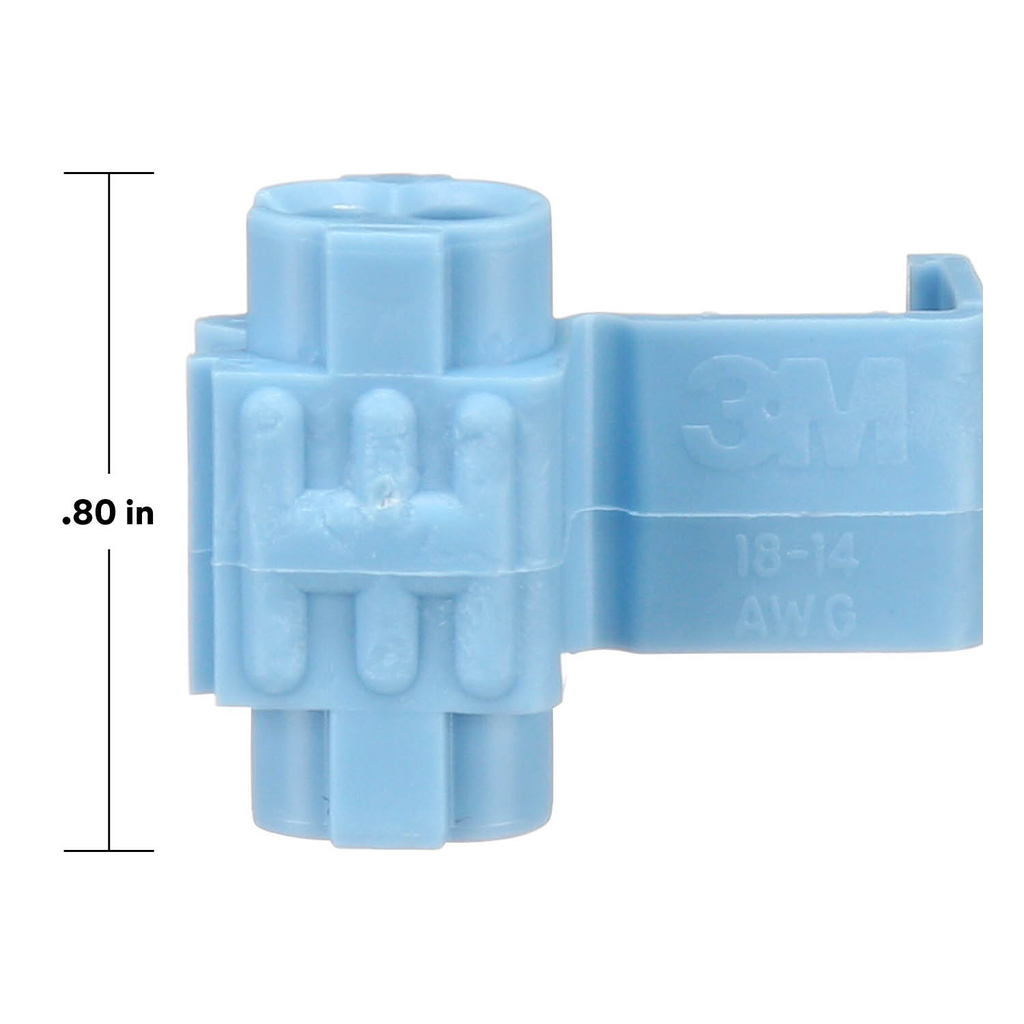

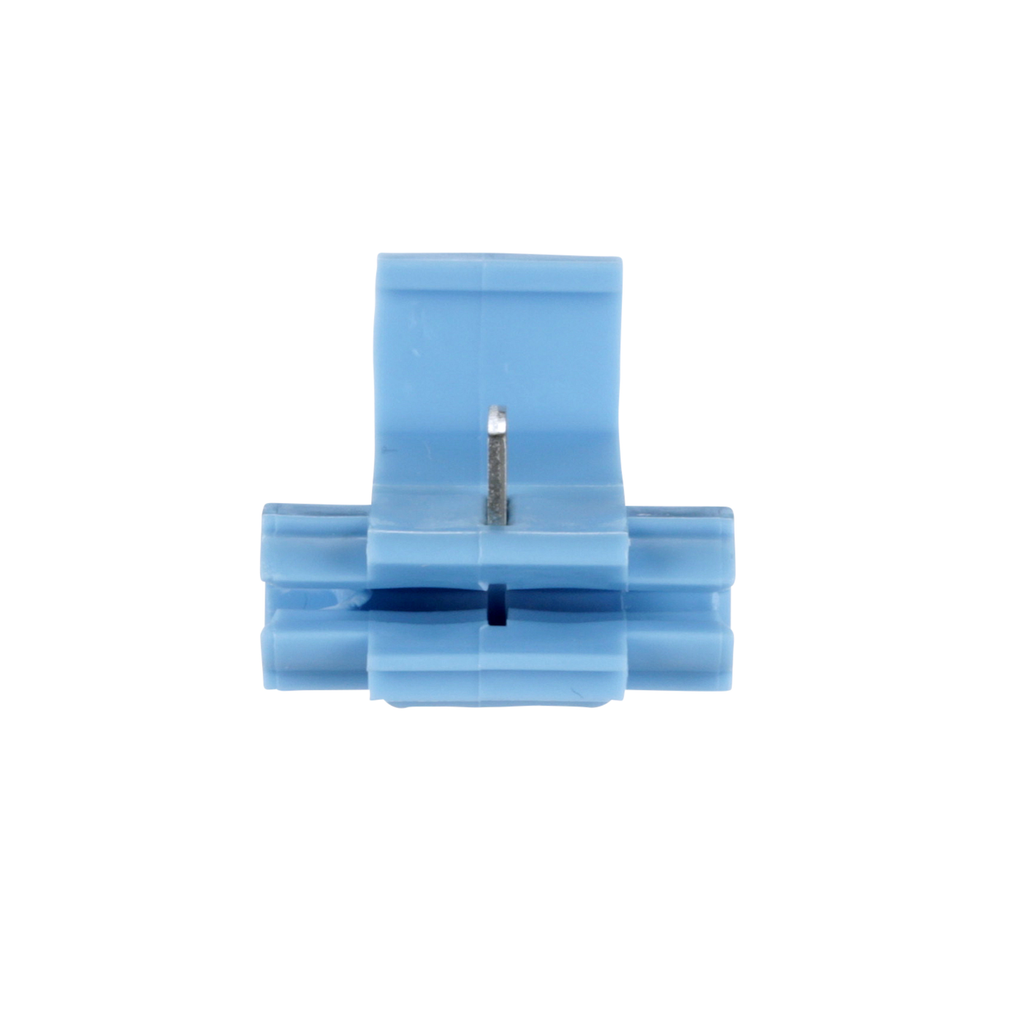

3M™ Scotchlok™ Electrical Insulation Displacement Connector electrically connects a (tap) wire end to a through (run) wire and insulates the connection. It is flame retardant and is used for tape and parallel splicing. This connector features a maximum insulation O.D. diameter of 0.145 inches (3.68 mm) and an operating temperature of 194 degrees Fahrenheit (90 degrees Celsius). The suggested application tool for the 3M™ Scotchlok™ Electrical Insulation Displacement Connector, 560B, is the 3M™ Scotchlok™ Crimping Tool, E-9BM.

Technical Information

Cable Size
18-16 AWG Run/Tap
Conductor Size
14 AWG
Connection Type
Double Run Or Tap
Flame Retardant
Yes
Material
Plastic
Max Operating Temperature
105.0 degrees C
Temperature Rating
221 F
Type
Insulation Displacement
Voltage
600 Volt
Wire Size
18-16 AWG / 14 AWG Stranded

Manufacturer Information

Brand
Scotchlok
Sub Brand
Scotchlok

General Product Info

12-Digit UPC
054007008408
Color
Blue
GTiN
00054007008408
Housing Material
Plastic
Product Type
Connector
Product UPC
05400700840
Used With
E-9BM Crimping Tool

Certifications and Compliance

Country of Origin
USA
Features
  • TAP RUN CONNECTOR: Used to electrically connect a (tap) wire end to a through (run) wire and insulate the connection
  • UL LISTED: UL Listed, UL File No. E23438

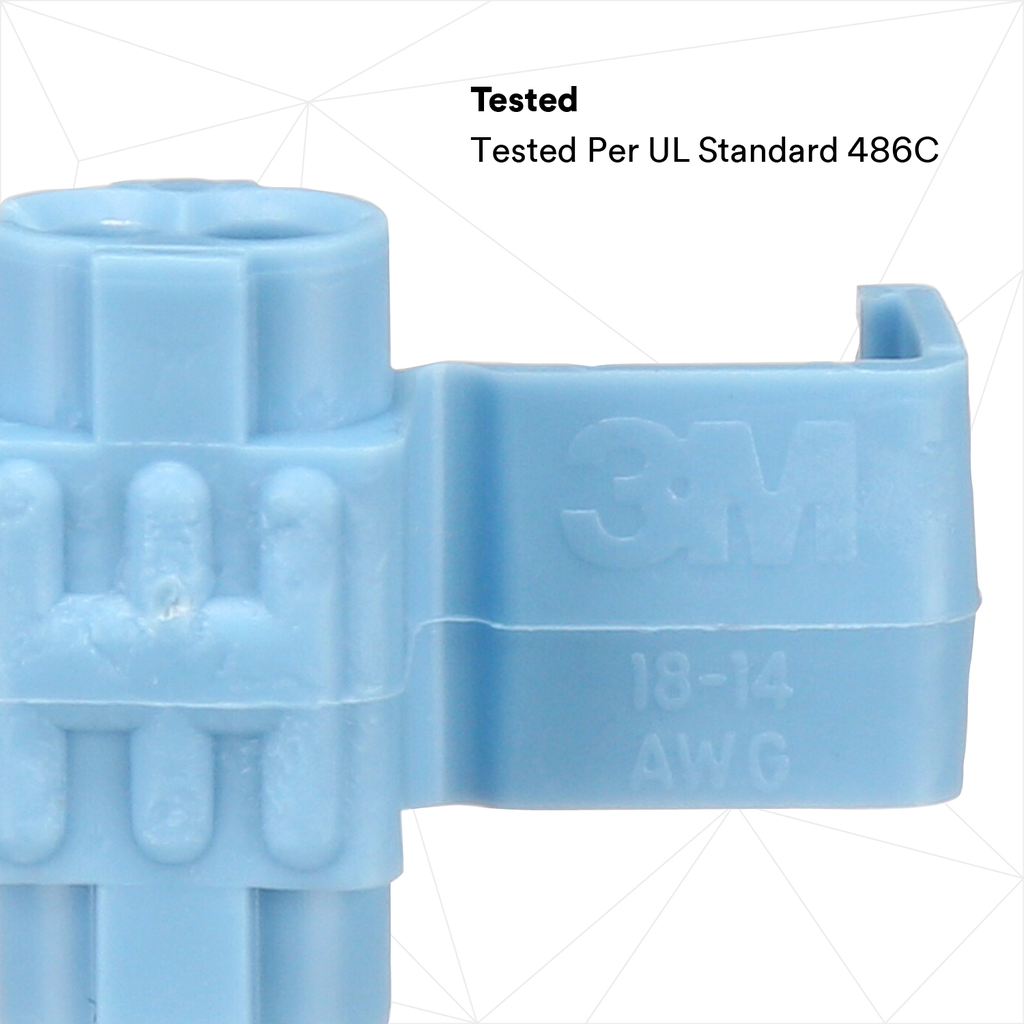

  • TESTED: Tested Per UL Standard 486C
  • CSA CERTIFIED: CSA Standard C22.2 No. 0, 188-M1983 CSA File No. LR15503
  • UL listed for AWG only
