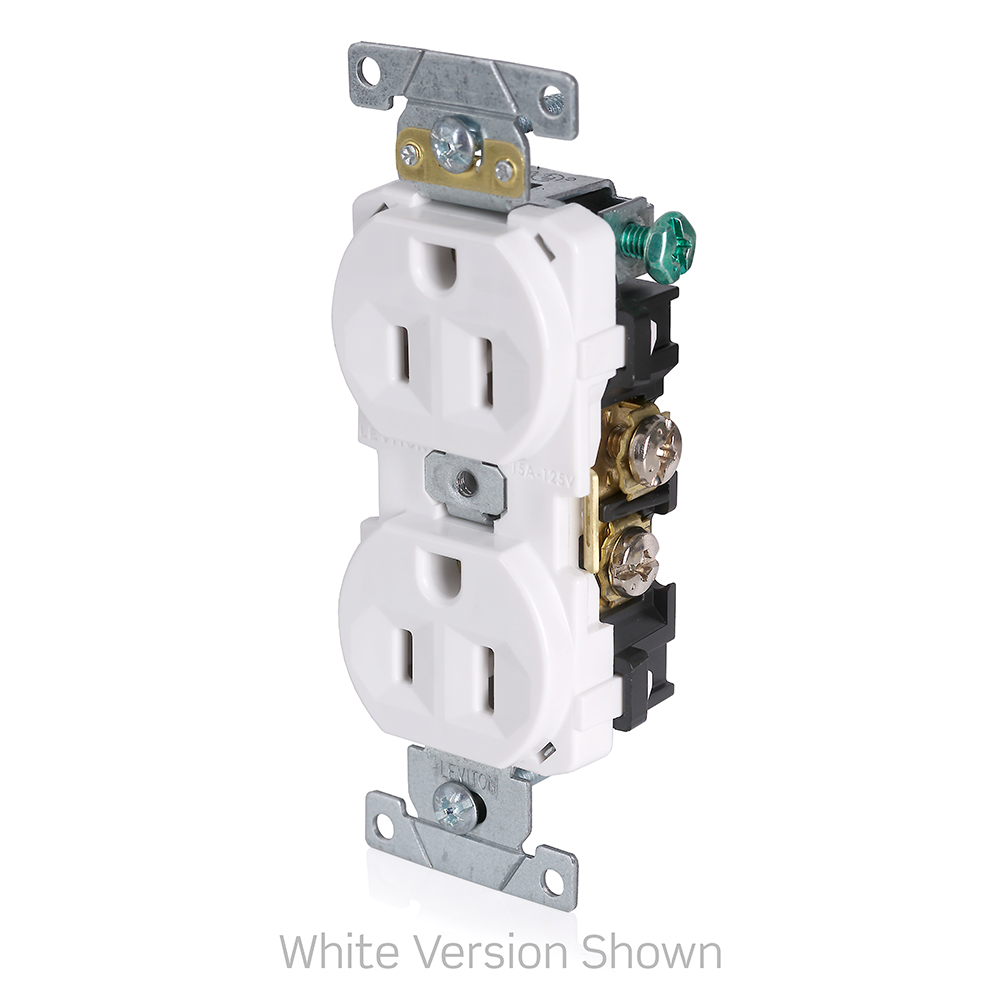

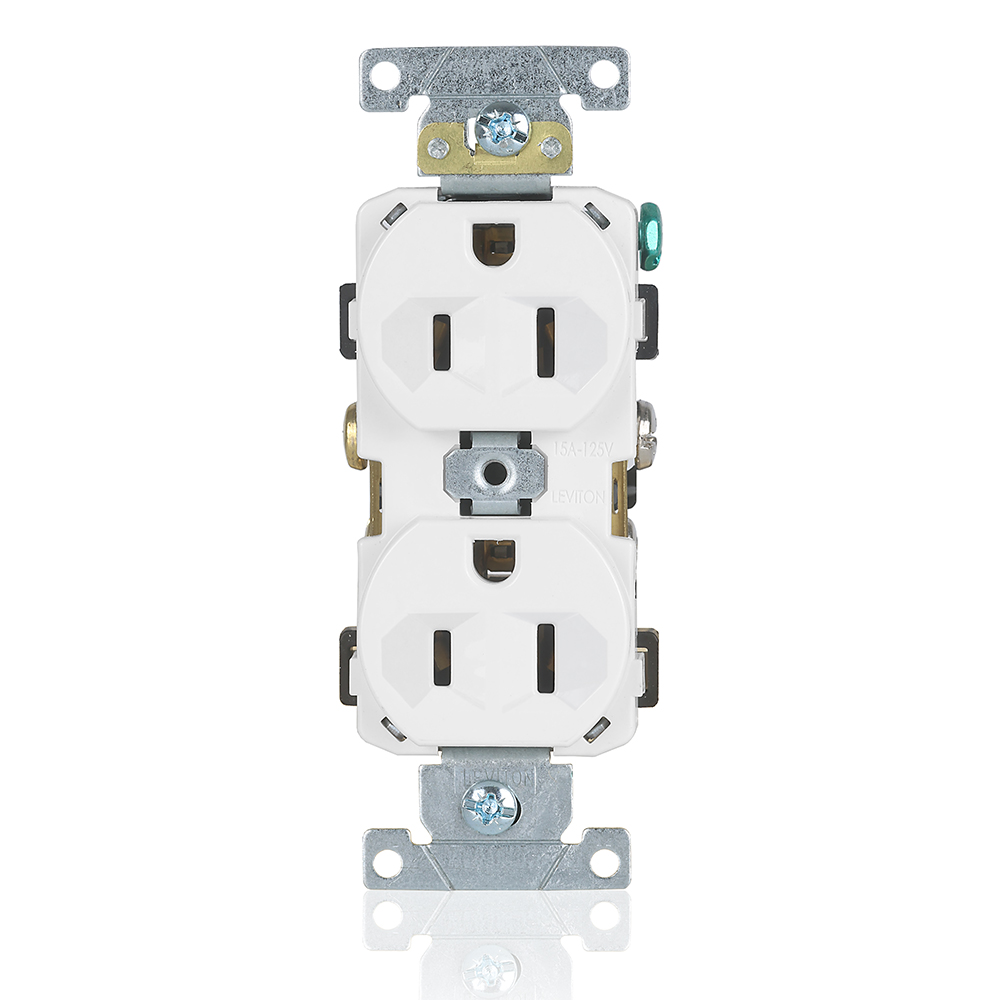

Leviton BR15-W 15amp Commercial Grade White Duplex Receptacle

Manufacturer: Leviton Mfg Co | Catalog # BR15-W | Cooper Electric Part # 370133
$10.96/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Safety Data Sheet Product Brochure
15-Amp, 125-Volt, Narrow Body Duplex Receptacle, Straight Blade, Commercial Grade, Self Grounding, White

Technical Information

Amperage
15 Amp
Applications
Commercial
Body Material
Polypropylene
Conductor Size
14-10 AWG
Connection Type
Back and Side Wire
Device Type
Duplex Receptacle Outlet
Dielectric
2000 V
Dielectric Strength
2000 V
Enclosure
WD-6
Face Material
Nylon
Grade
Commercial
Grounding
Self-Grounding
Horsepower
1/2 hp
Material
Nylon
Mounting Type
Wallbox, Flush
NEMA
WD-1
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
46 H x 1.56 W x 19 D IN
Standard
ANSI C-73
TC Connection
Back & Side Wired
Temperature Rating
-40 degrees C to 60 degrees C
Temperature Rise
200 %
Termination Type
Back Wire,Side Wire
Type
Outlet
Voltage
125 Volt
Wire Count
3
Wire Size
14-10 AWG

Manufacturer Information

Brand
Leviton
Sub Brand
Commercial Receptacles

General Product Info

12-Digit UPC
078477819777
Color
White
Environmental Conditions
UL 94 Requirements, V2 Rated Flammability
Finish
Matte
GTiN
00078477819777
Product UPC
07847781977

Dimensions

Warranty Length
10 yr

Certifications and Compliance

Country of Origin
Mexico
Color Variations
  • Brown
NEMA
  • 5-15R
