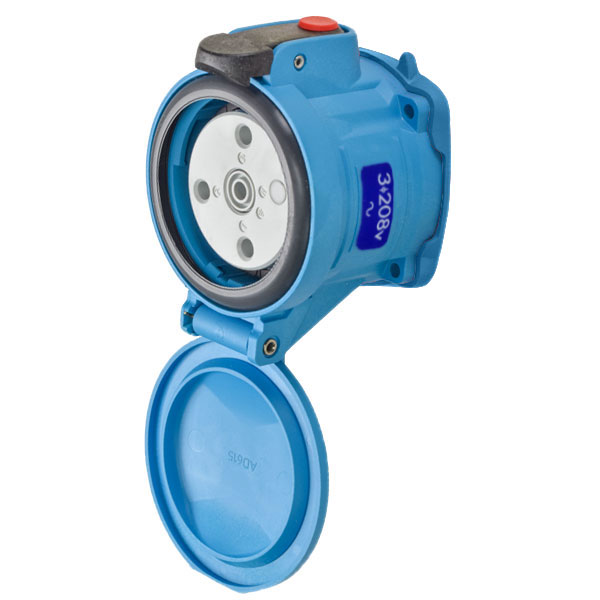

Product image for Meltric 63-64163 DSN60 Receptacle, Poly, Blue, Size 3, Type 4X & IP69, 3P+G, 60A, 208 VAC, 60 Hz
Email

Meltric 63-64163 DSN60 Receptacle, Poly, Blue, Size 3, Type 4X & IP69, 3P+G, 60A, 208 VAC, 60 Hz

Manufacturer: Meltric | Catalog # 63-64163 | Cooper Electric Part # 368519
$607.41/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Receptacle, With Ground, Horsepower Rating 7 1/2 HP at 208 V, Short Circuit Rating 100 KAMP, Standard: UL, CSA, NOM, IEC, CE, NFPA 70E, Number Of Poles: 3, Number Of Wires: 4, Wire Size: 12 to 4AWG, Amperage Rating: 60AMP, Voltage Rating: 208V, Phase: 3PH

Technical Information

Amperage
60 Amp
Conductor Size
14-4 AWG
Contact Configuration
3P+G
Current
60 Amp
Frequency
60 Hz
Horsepower
7.5 hp
IP Rating
66,67,69
Material
Poly
Max Operating Temperature
140 degrees F
Number of Poles
3 Pole
Number of Wires
4 Wire
Short Circuit Current Ratng
125 A
Size
3
Strip Length
3/4 in
Type
Receptacle
Voltage
208 Volt
Wire Size
12-4 AWG

Manufacturer Information

Brand
Meltric
Sub Brand
Decontactor

General Product Info

12-Digit UPC
784474547734
Color
Blue
Environmental Conditions
-40 to 140 F
GTiN
00784474547734
Product Series
12
Product UPC
78447454773

Certifications and Compliance

CSA
155873,C22.2 No. 182.1-13,CCSAus
