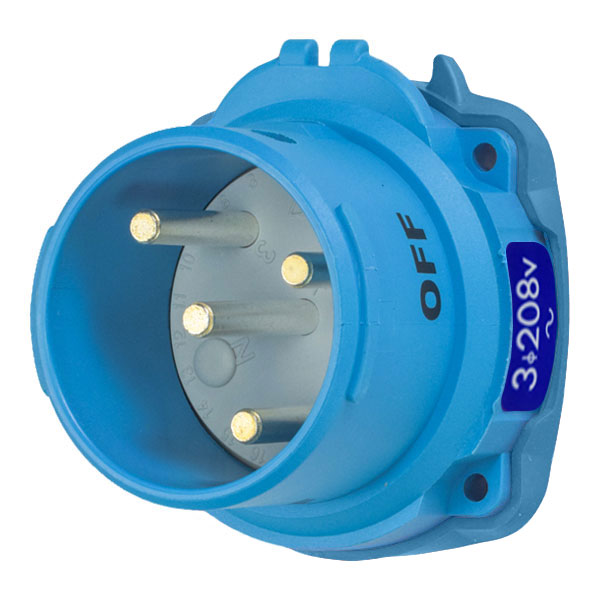

Product image for Meltric 63-68163 DSN60 Inlet, Poly, Blue, Size 3, Type 4X & IP69, 3P+G, 60A, 208 VAC, 60 Hz
Email

Meltric 63-68163 DSN60 Inlet, Poly, Blue, Size 3, Type 4X & IP69, 3P+G, 60A, 208 VAC, 60 Hz

Manufacturer: Meltric | Catalog # 63-68163 | Cooper Electric Part # 368517
$319.68/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Inlet, Enclosure NEMA 4X, IP66/IP67, Wiring Capacity 12 To 4 AWG, Horsepower Rating 7 1/2 HP At 208 V 3 Phase, Polarity 3 Pole, Ground, Short Circuit Rating 100 KAMP, Standard: UL, CSA, NOM, IEC, CE, NFPA 70E, Size: 3.07 DIA X 2.13IN, Amperage Rating: 60A

Technical Information

Amperage
60 Amp
Contact Configuration
3P+G
Current
60 Amp
Frequency
60 Hz
Horsepower
7.5 hp
IP Rating
66,67,69
Material
Poly
Max Operating Temperature
140 degrees F
Short Circuit Current Ratng
125 A
Size
3
Strip Length
7/8 in
Temperature Rating
-40 to 140 DEG F
Type
Inlet
Voltage
208 Volt

Manufacturer Information

Brand
Meltric
Sub Brand
Decontactor

General Product Info

12-Digit UPC
784474547727
Color
Blue
GTiN
00784474547727
Product Series
12
Product UPC
78447454772

Certifications and Compliance

CSA
155873,C22.2 No. 182.1-13,CCSAus
