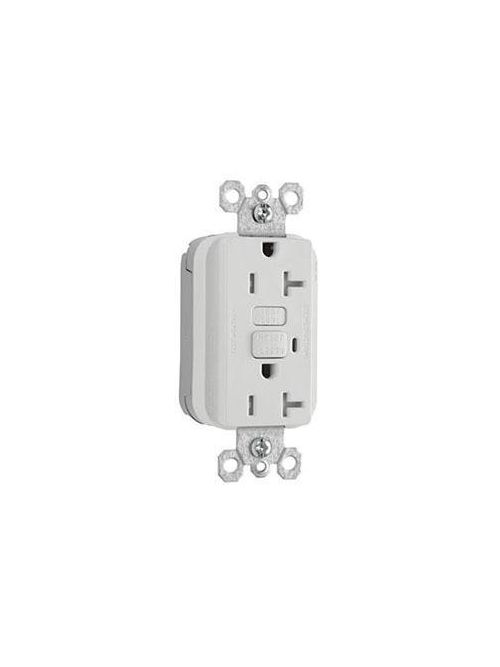

Product image for P&S PT2095TRW DISC SUB PT2097TRW
Image thumbnail 0
Image thumbnail 1
Email

P&S PT2095TRW DISC SUB PT2097TRW

Manufacturer: Pass & Seymour / Legrand | Catalog # PT2095-TRW | Cooper Electric Part # 368094
$46.29/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
From the innovator of the product category, comes a full range of Pass & Seymour GFCI receptacles to enhance safety, shorten installation times and increase productivity on the jobsite. Our PlugTail™ GFCI receptacles are the fastest-installing GFCI ever. Now you can beat tough deadlines on any commercial job.

Technical Information

Amperage
20 Amp
Grade
Specification
NEMA
5-20R
Style
Decorator
Type
PlugTail
Voltage
125 Volt

Manufacturer Information

Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007167573
Color
White
GTiN
00785007167573
Product Series
PlugTail
Product UPC
78500716757

Dimensions

Depth
1.2 Inch
Height
4.2 Inch
Length
4.2 Inch
Width
1.72 in
Features & Benefits
  • Protects children: patented shutter system helps prevent improper insertion of foreign objects.
  • Mounting screws are shipped captive in the device and wall plate for easier installation.
  • No exposed terminals create a finger safe application before, during, and after installation.
  • High-impact-resistant thermoplastic construction.
  • Trip indicator light (red LED).
  • 10kA short circuit rating.
  • GFCI works with the existing 3 wire PlugTail Connectors creating a non-feed-thru application for facility owners. At rough-in just install the same right angle connector for GFCI and receptacle openings.
  • SafeLock™ Protection: if critical components are damaged and ground fault protection is lost, power to receptacle is disconnected.
  • Class A rated GFCI.
  • Tri-drive screws.
  • FSUL Listed (Federal Specification WC596).
  • Zinc-plated steel mounting strap.
  • Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections to PlugTail Connector.
  • Faster, more reliable installation.
  • Meets 2008 National Electrical Code® Tamper-Resistant requirements.
  • Dual-direction test and reset buttons.
  • Exceeds UL943 voltage surge requirements; survives 100x the required UL 3kA/6kV voltage surge test cycles.
  • For covering patents, see www.legrand.us/patents.
  • Supplied with matching TP26 nylon wall plate.
  • Button colors match the device face.
Available Options
  • PlugTail™ Spec Grade Tamper-Resistant 20A Duplex GFCI, Black
  • PlugTail™ Spec Grade Tamper-Resistant 20A Duplex GFCI, Red
  • PlugTail™ Spec Grade Tamper-Resistant 20A Duplex GFCI, Gray
  • PlugTail™ Spec Grade Tamper-Resistant 20A Duplex GFCI, Ivory
  • PlugTail™ Spec Grade Tamper-Resistant 20A Duplex GFCI, Light Almond
  • PlugTail™ Spec Grade Tamper-Resistant 20A Duplex GFCI, Brown
