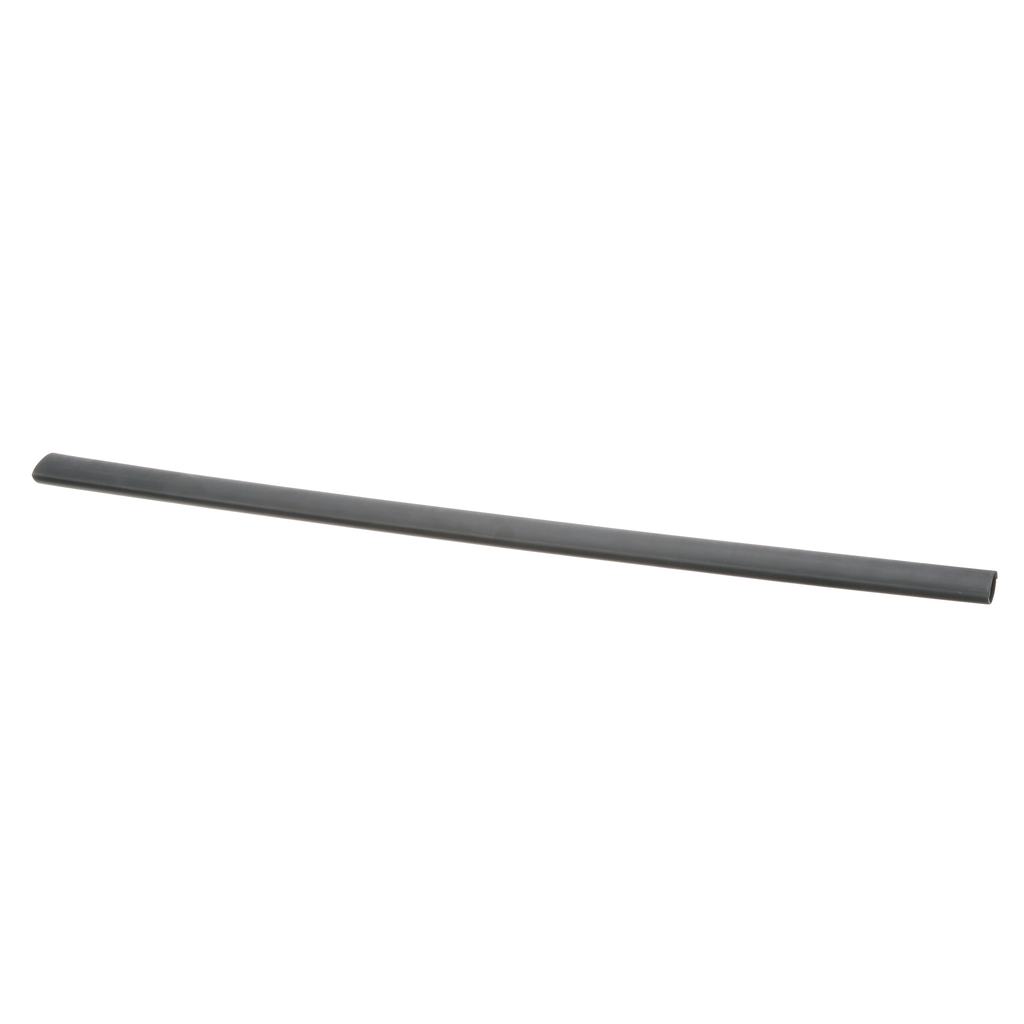

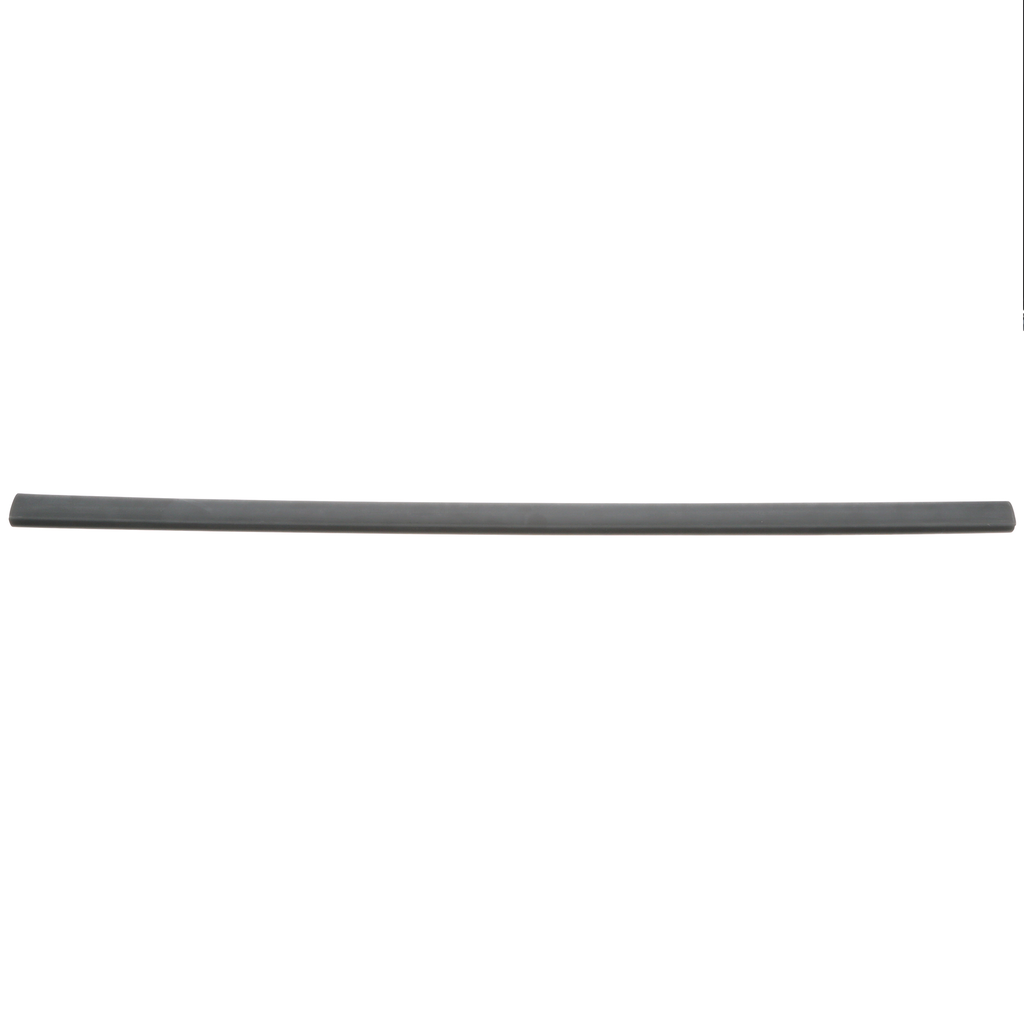

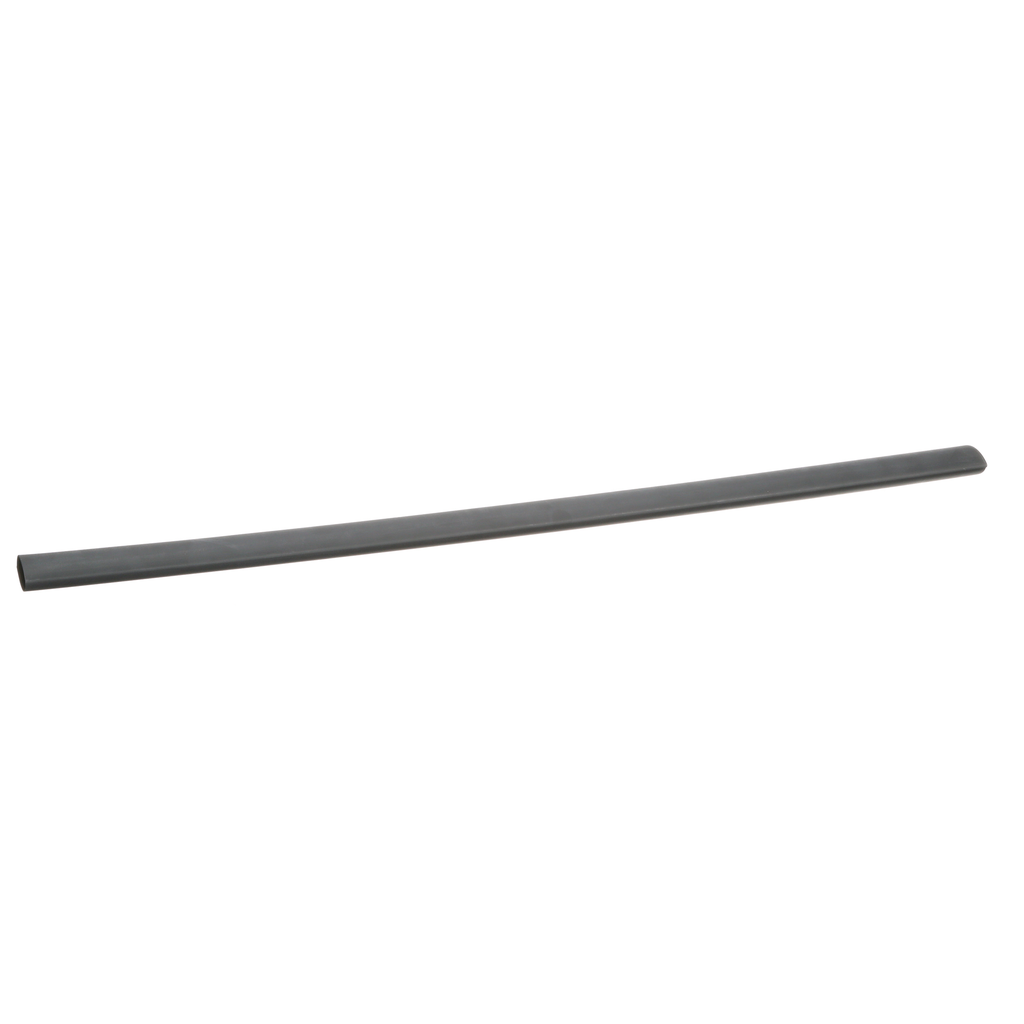

Product image for Panduit HSTTA100-48-5 Heat Shrink, Black, Adhesive. Lined PO, 4' L, 1" to .32" ID
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

Panduit HSTTA100-48-5 Heat Shrink, Black, Adhesive. Lined PO, 4' L, 1" to .32" ID

Manufacturer: Panduit Corp | Catalog # HSTTA100-48-5 | Cooper Electric Part # 363929
$111.39/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Buy American Compliant Buy American Compliant Product Spec Sheet Product Catalog Page Installation / Instruction Manual Safety Data Sheet Engineering Drawing
The HSTTA100-48-5 Heat Shrink features an adhesive lined inner wall that seals and provides excellent protection against moisture. Applications include insulating and protecting wires/cables in damp locations. Voltage rating: 600 V. Shrink ratio: 3:1. Temperature range: -67.F to 230.F (-55.C to 110.C). Cross-linked Polyolefin. 1" (25.4 mm) diameter, 4' (1.2 m) length. Color Black. 5 per package.

Technical Information

Material
Polyolefin
Max Operating Temperature
110 degrees C
Min Operating Temperature
-55 degrees C
Shrink Ratio
3:1
Standard
Yes
Temperature Rating
-55 to 110 degrees C
Type
Flame Retardant

Packaging

Pkg Qty
5

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Damp-Shrink™

General Product Info

12-Digit UPC
074983369959
Color
Black
GTiN
00074983369959
Product UPC
07498336995

Dimensions

Inside Diameter
8.1 mm
Outside Diameter
25.4 mm
Overall Length
4 ft
Thickness
2.5 mm

Certifications and Compliance

Buy American Compliant
Y
CA Prop65 Warning
No
Country of Origin
South Korea
Standards and Certifications
  • Standards Met: UL: E342365; Mil Spec: AMS-DTL-23053/4 Class 3
Prop 65
  • No
