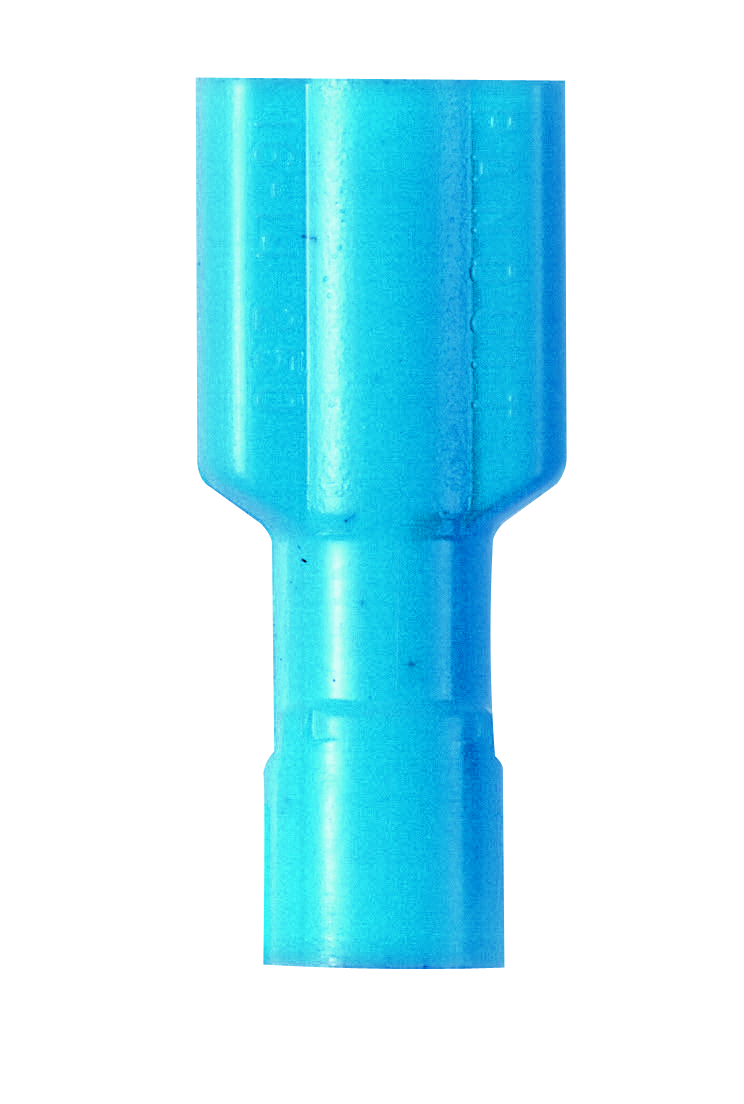

Product image for Panduit DPF14-206FIB-C Premium Nylon Fully Insulated Female Disconnect
Email

Panduit DPF14-206FIB-C Premium Nylon Fully Insulated Female Disconnect

Manufacturer: Panduit Corp | Catalog # DPF14-206FIB-C | Cooper Electric Part # 363864
$382.64/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Buy American Compliant Buy American Compliant Product Spec Sheet Product Catalog Page Engineering Drawing
The vibration resistant DiscoGrip™ female disconnect is made of brass and is tin-plated. It is fully insulated in blue premium nylon housing. It has a tab size of 0.205/0.187 x 0.02" (5.2/4.7 x 0.5 mm) and supports a wire range of 16-14 AWG (1.5-2.5 mm.). It is 0.78" (19.8 mm) long and 0.31" (7.9 mm) wide. The disconnect has a funnel entry barrel configuration and a butted seam barrel. It comes in bottles of 100.

Technical Information

Barrel Type
Butted Seam
Base Material
Brass
Color Coding
Blue
Conductor Size
14 AWG
Insulation Type
Premium Nylon
Material
Brass
Max Operating Temperature
105 degrees C
Max Voltage
600 V
TC Connection
Funnel Entry
Temperature Rating
221 F
Type
Loose Piece Disconnect
Voltage
600 Volt
Wire Size
16-14 AWG

Packaging

Pkg Qty
100

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
DiscoGrip

General Product Info

12-Digit UPC
074983203871
Color
Blue
Finish
Tinned
GTiN
00074983203871
Product Type
Terminals
Product UPC
07498320387

Dimensions

Height
0.22 Inch
Length
0.78 Inch
Overall Length
0.78 in
Width
.31 in

Certifications and Compliance

ARRA Compliant
Yes
Buy American Compliant
Y
CE Compliant
No
Country of Origin
Mexico
Hazmat Flag
No
