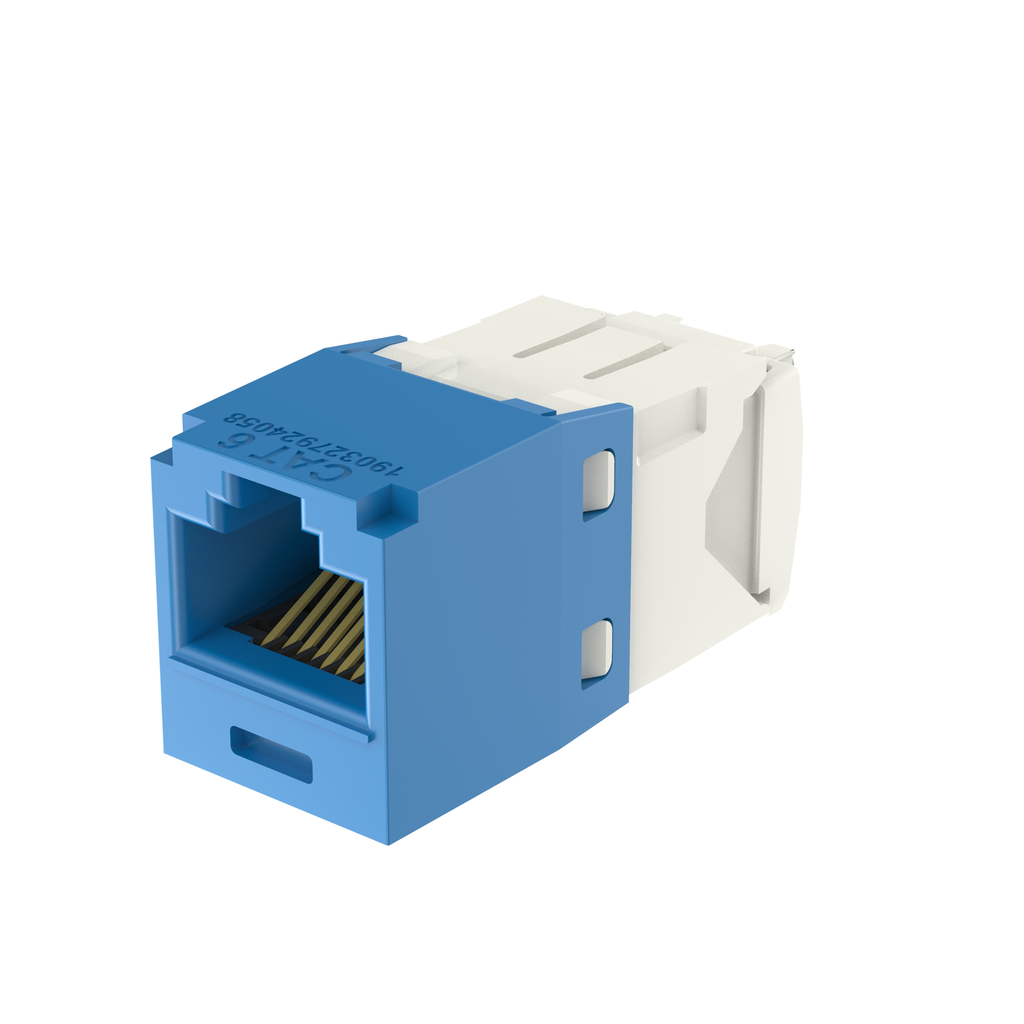

Panduit CJ688TGBU CAT 6 UTP 8-Position 8-Wire Mini-Com Module

Manufacturer: Panduit Corp | Catalog # CJ688TGBU | Cooper Electric Part # 358949
$55.63/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Opens Friday 8:00am ET
125 available

For Delivery

Order by Thursday 5:00pm ET for delivery Friday
Not in local stock *
Check another branch
Buy American Compliant Buy American Compliant Product Spec Sheet Product Catalog Page Installation / Instruction Manual Engineering Drawing Product Brochure
The Mini-Com® Cat 6 UTP RJ45 TG Jack Module is designed to terminate 4-pair, 22-26 AWG twisted pair cable. Each module is 100% factory tested to exceed industry standard performance requirements. TG style termination eliminates the need for a termination tool. Each jack is individually serialized for traceability and is compatible with Mini-Com Modular Patch Panels and Faceplates. The jack module is blue.

Technical Information

Applications
Unshielded
Cable Size
26 - 22 AWG
Cable Type
Category 6
Material
ABS Plastic
Max Operating Temperature
167 degrees F
Min Operating Temperature
-10 degrees C
Number of Positions
8
Performance Level
Category 6
Type
RJ45, Unshielded, Universal

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Mini-Com

General Product Info

12-Digit UPC
074983395460
Color
Blue
GTiN
00074983395460
Product UPC
07498339546
Used With
Round and Solid Cables, Litz Wire Conductor

Dimensions

Depth
1-1/2 Inch
Height
0.71 Inch
Overall Length
38.1 mm
Width
15.7 mm

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA
Standards and Certifications
  • Standards Met: Exceeds component and channel requirements of ANSI/TIA-568.2-D Category 6 and ISO 11801 Class E standards at swept frequencies 1 to 250 MHz for Supporting 10GBASE-T Transmission Over Twisted Pair Cabling Systems in a 4-Connector Configuration up to 100 meters at Swept Frequencies 1 to 250 MHz, Exceeds Component Requirements of ANSI/TIA-568-C.2 Category 6 and ISO 11801 Class E Standards at Swept frequencies 1 to 250 MHz, Meets ANSI/TIA-1096-A, Meets IEC 60603-7 and IEC 60512-99-001, Rated for 2500 Cycles with IEEE 802.3af / 802.3at and Proposed 802.3bt Type 3 and Type 4, UL 1863 and UL 2043, RoHS Compliant
