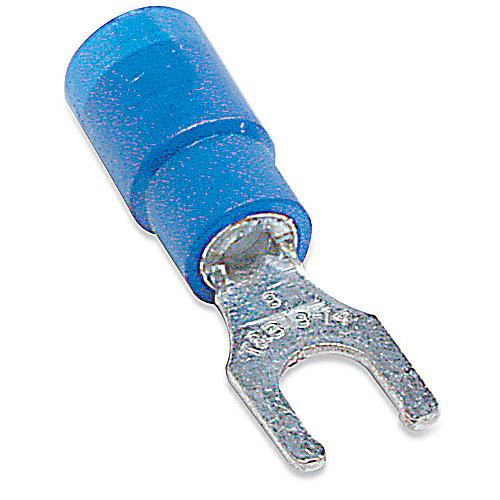

Thomas & Betts 14RB-8FLX 18-14 AWG Wire Range #8 Bolt Hole Expanded Insulated Vinyl Locking Fork Terminal

Manufacturer: ABB | Thomas & Betts | Catalog # 14RB-8FLX | Cooper Electric Part # 358928
$264.68/c (100 ea)
ea
Order in multiples of 100 (pack qty)
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
Expanded Vinyl-Insulated Locking Fork Terminal, Length .97 Inches, Width .31 Inches, Maximum Insulation .200, Bolt Hole #8, Wire Range #18-#14 AWG, Color Blue, Copper, Tin Plated

Technical Information

Conductor Size
18-14 AWG
Flamability Class
Rated V-0 Per UL94
Insulation Material
PVC
Insulation Type
Expanded Insulated Vinyl
Material
Copper
Stud Size
#8
Temperature Rating
105 degrees C
Terminal Type
RB
Type
Locking, Short Sleeve
Voltage
600 Volt
Wire Size
18-14 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210806556
Color
Blue
Finish
Tin Plated
GTiN
05415022344813
Product UPC
78621080655
Used With
Round Conductors

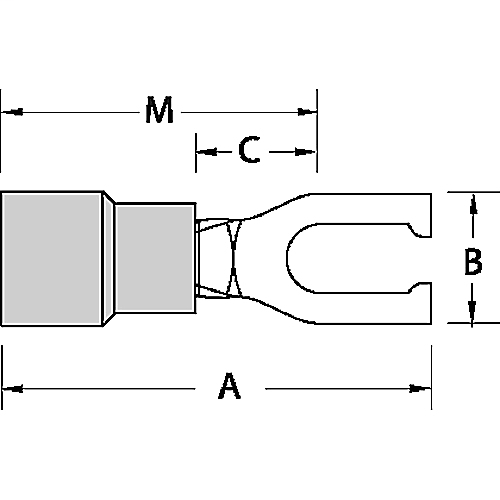

Dimensions

Height
8.9 Inch
Thickness
.03 in
Width
9.6 in
Features
  • Locking fork terminals have a specially designed tongue that lets them go on like a fork and stay on like a ring.
Certifications
  • CSA
  • UL
