Hubbell 1221B Hubbell-PRO Single Pole Toggle Switch, 20A 120/277V, Brown

Manufacturer: Hubbell Wiring Device | Catalog # 1221B | Cooper Electric Part # 357456
$5.86/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Closes 6:00pm ET
68 available

For Delivery

Order by 5:00pm ET for delivery tomorrow
Not in local stock *
Check another branch
Product Spec Sheet Product Catalog Page Installation / Instruction Manual
Switches and Lighting Controls, Hubbell- PRO Series, Toggle Switches, General Purpose AC, Single Pole, 20A 120/277V AC, Back and Side Wired, Brown

Technical Information

Action
Positive Snap
Actuator
Toggle
Amperage
20 Amp
Applications
Heavy Duty Industrial
Conductor Size
14-10 AWG
Contact Configuration
Two Position
Contact Rating
Per UL 20
Current
20 Amp
Enclosure
None
Grade
Industrial
Material
Thermoplastic
Number of Poles
1 Pole
Operating Cycles
50000
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
UL
Style
Single Pole
Switch Type
Single Pole
TC Connection
Back and Side Wired
Type
General Purpose, 2-Position, Standard, Heavy Duty
Voltage
120-277 Volt
Wattage
5540 Watt
Wire Size
14-10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
AC Toggle Switches

General Product Info

12-Digit UPC
783585835266
Color
Brown
Environmental Conditions
Indoor Dry unless protected by additional means
GTiN
00783585835266
Product Series
Heavy Duty
Product UPC
78358583526
Weight
0.15 lb

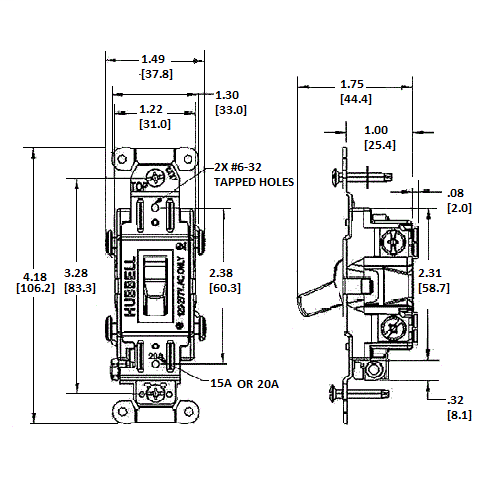

Dimensions

Height
1.83 Inch
Length
4.18 Inch
Width
1.49 in

Certifications and Compliance

Country of Origin
China
Features
  • Steel, zinc plated bridge is corrosion resistant
  • Color Coded by Amperage makes inspection easy even when installed
  • Strip gauge for accurate wiring
