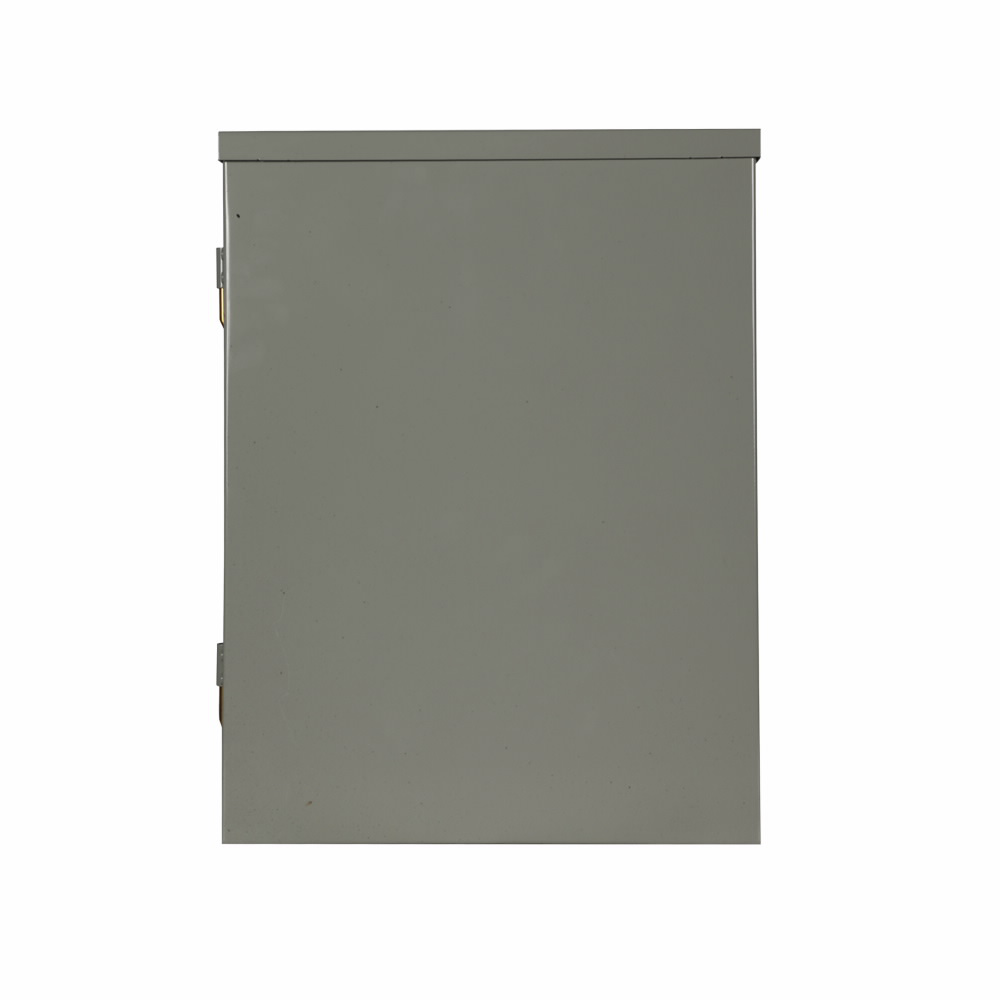

Product image for Eaton Electrical BR1224B100R 120/240 VAC 100 Amp 1-Phase 3-Wire 1 Inch Main Breaker Load Center
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Image thumbnail 6
Image thumbnail 7
Image thumbnail 8
Image thumbnail 9
Email

Eaton Electrical BR1224B100R 120/240 VAC 100 Amp 1-Phase 3-Wire 1 Inch Main Breaker Load Center

Manufacturer: Cutler-Hammer / Eaton | Catalog # BR1224B100R | Cooper Electric Part # 35684
$587.30/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Installation / Instruction Manual Product Brochure
BR style 1-inch loadcenter, main circuit breaker, no feed-thru lugs, 100A, single-phase, 24-pole, 24 circuits, 12 spaces, 120/240V, #4-1/0 AWG Cu/Al at 60.C or 75.C wire, NEMA 3R enclosure, b2r box size

Technical Information

Amperage
100 Amp
Applications
Other
Bus Material
Aluminum
Conductor Size
4-1/0 AWG
Cover Type
Cover included
Enclosure
3R
Enclosure Material
Metal
Interrupt Rating
10 kAIC
NEMA Size
3R
Number of Circuits
24
Number of Phases
1 Phase
Number of Spaces
12
Number of Wires
3 Wire
Size
B2r
Type
Main Circuit Breaker
Voltage
120/240 Volt
Wire Size
4-0 AWG

Manufacturer Information

Brand
Eaton

General Product Info

12-Digit UPC
786676443951
Color
Black
GTiN
00786676443951
Product UPC
78667644395
Weight
22.6 lb

Dimensions

Height
5-1/2 Inch
Length
20.4 Inch
Width
15.1 in
