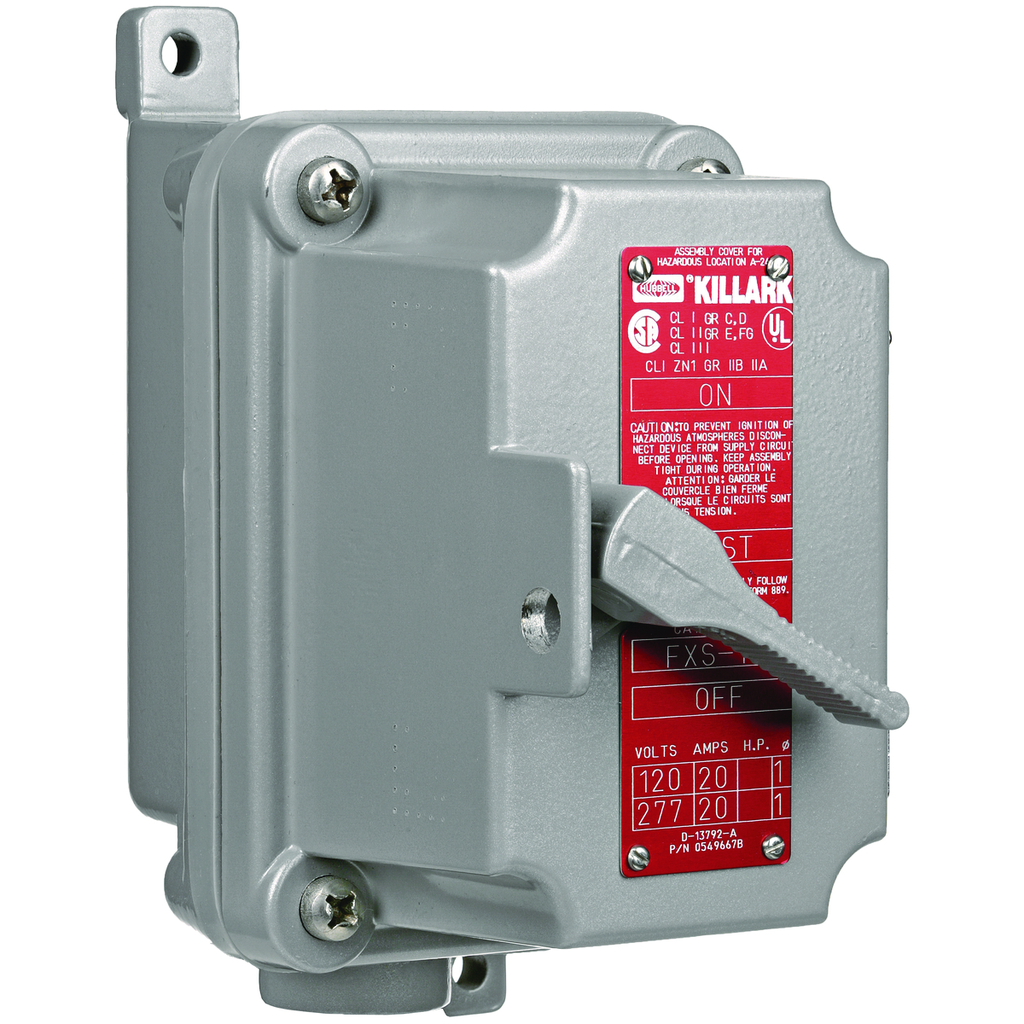

Product image for Killark FXSX53 XSD/XSX/FXSD/FXSX-Series - FXSX Single Gang Aluminum Manual Motor Starting Switch - 3 Pole 3 Phase - Feed-Thru - Hub Size 3/4 In
Email

Killark FXSX53 XSD/XSX/FXSD/FXSX-Series - FXSX Single Gang Aluminum Manual Motor Starting Switch - 3 Pole 3 Phase - Feed-Thru - Hub Size 3/4 In

Manufacturer: Killark | Catalog # FXSX53 | Cooper Electric Part # 356822
$658.04/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
XSD/XSX/FXSD/FXSX Series - FXSX Single Gang Aluminum Manual Motor Starting Switch - 3 Pole 3 Phase - Feed-Thru - Hub Size 3/4 In

Technical Information

Applications
Provides Manual Starting and Stopping of Small AC or DC Motors. Motor Running Protection When Overload Heaters are Used. FXSX Series (without Overload Protection) is Ideally Suited for Across-the-line Applications Where a Positive Disconnect Means is Required
Coil Voltage
115 VAC, 200-230 VAC, 460-575 VAC
Enclosure Type
Aluminum
Frequency
60 Hz
Horsepower
5 hp
Material
Aluminum
NEMA Size
3
Number of Phases
3 Phase
Number of Poles
3 Pole
Power Rating
2 hp at 115 VAC, 3 hp at 200 - 230 VAC, 5 hp at 460 - 575 VAC
Reset Type
Lever
Size
6-13/16" H x 3-11/16" W x 5-11/32" D
Type
1-Gang, Feed-Through
Voltage
600 Volt

Manufacturer Information

Brand
Killark Electric
Sub Brand
Killark

General Product Info

12-Digit UPC
783936198101
GTiN
00783936198101
Product UPC
78393619810
Used With
XSD/XSX/FXSD/FXSX Manual Motor Starting Switches

Dimensions

Height
6-3/4 Inch
Length
8-3/4 Inch
Width
5.75 in

Certifications and Compliance

Country of Origin
USA
Features
  • FXSX Series (without overload protection) are ideally suited for across the-line applications where a positive disconnect means is required.
  • Factory Sealed so no external seals are required.
  • Type 3 (raintight) rated.
  • Enclosures are cast copper-free aluminum alloy.
  • Operating shaft is stainless steel.
  • Multiple gang assemblies available in combination with pilot lights, pushbuttons and switches on request.
  • Ground flange joint between bolted cover and box provide required flame path.
  • Provisions for padlocking switch in either ON or OFF position is standard.
  • FXSX Series requires no external seals (factory sealed) and are NEMA 3 (raintight) rated. Enclosures are cast copper-free aluminum alloy. Operating shaft is stainless steel. Ground flange joint between bolted cover and box provide required flame path. Pro
