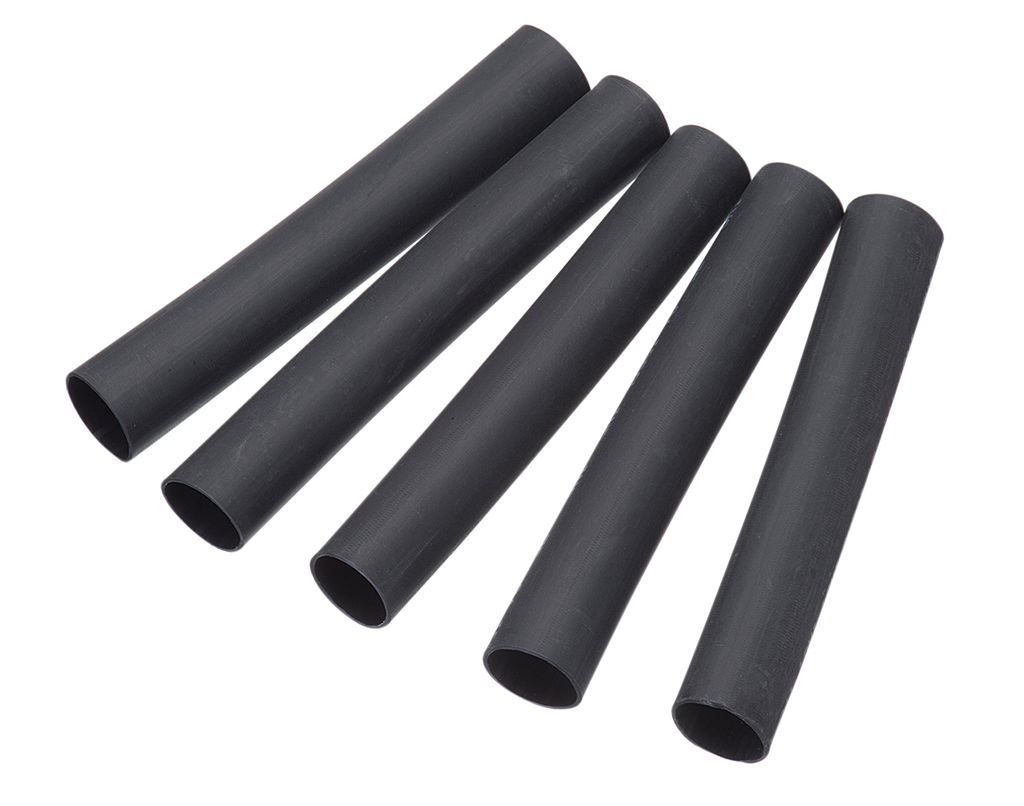

Product image for Ideal 46-350 Heat Shrink Tube 3/4" x 4'

Email

Ideal 46-350 Heat Shrink Tube 3/4" x 4'

Manufacturer: Ideal Industries | Catalog # 46-350 | Cooper Electric Part # 356463

$6,111.48/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Opens Monday 7:00am ET
0 available

For Delivery

Not in local stock *
Check another branch
*Out of stock, please contact your sales representative for availability, pricing and lead times
Buy American Compliant Buy American Compliant Product Spec Sheet
IDEAL, Heat Shrinkable Tube, Thermo-Shrink, Heavy-Wall Heat Shrink Tubing, Shrink Ratio: 3:1, Thickness: 090 IN, Length: 48 IN, Volume Resistivity: 1013 OHM -CM MIN, Dielectric Strength: 500 V/MIL (20 KV MINT), Continuous Operating Temperature: -55 To 110 DEG C, Minimum Shrink Temperature: 120 - 250 DEG C (200 DEG C Recommended), Low Temperature Flexibility: -55 DEG C, Heat Shock: No Cracks, Flowing Or Dripping (4 HR At 225 DEG C), Water Absorption: 0.5 PCT, Heat Aging: 500 PCT (168 HR At 175 DEG C Tensile Strength Elongation), Cable Range: 6 - 2 AWG, Nominal Recoveredi.d. (max.): 0.240 IN, Expanded I.d. (min.): 0.750, Copper Corrosion: Non-Corrosive, Ultimate Elongation: 600 PCT Min., Model: TS-46-750

Technical Information

Dielectric Strength
500 V/mil
Shrink Ratio
3:1
Standard
CSA,RoHS,UL Listed
Type
Heavy-Wall Heat Shrink Tubing

Manufacturer Information

Brand
Ideal Industries
Sub Brand
Thermo-Shrink®

General Product Info

12-Digit UPC
783250463503
GTiN
00783250463503
Product UPC
78325046350

Dimensions

Length
48 Inch
Thickness
090 IN

Certifications and Compliance

Buy American Compliant
Y
Features
  • TS-46 irradiated cross-linked polyolefin with 3:1 standard shrink ratio
  • Adhesive liner provides complete insulation and protection to electrical splices in above-grade, underground or underwater applications
  • Maximum flame retardancy
  • Meets UL 486D, CSA C22.2 No. 198.2, ANSI C119.1, Western Underground Guides Nos. 2.4, 2.5, MIL-DTL-23053/15, IEEE 383 Vertical Flame Test, ANSI C37.20.2, ICEA S-19-8 and NEMA insulation thickness requirements
  • Rated for 600V, 90°C continuous use
