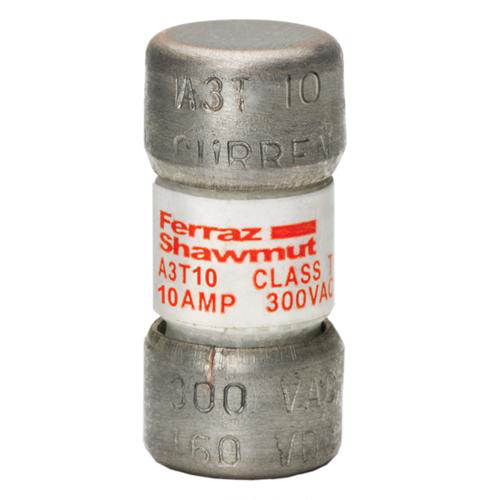

Product image for Mersen A3T10 300V 10A T FUSE
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Mersen A3T10 300V 10A T FUSE

Manufacturer: Mersen | Catalog # A3T10 | Cooper Electric Part # 356281
$40.42/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
Fast-acting A3T Class T fuses combine two highly desirable features - high current-limitation and a small physical size. Their unique dimensions prevent the substitution of other fuses with lower voltage ratings or current-limiting capability. These fuses have glass melamine bodies for superior dimensional stability and catalog numbers stamped into the blades for permanent identification.

Technical Information

Amperage
10 Amp
Applications
Load centers; Panelboards; Switchboards; Circuit Breakers; Metering Centers
Contact Material
Copper
Fuse Class
Class T
Insulation Material
GMG
Interrupt Rating
200 kAIC
Material
GMG
Mounting Type
Clip
Rated Voltage AC
300 V
Rated Voltage DC
160 V
Response Time
Fast-Acting
Size
0.41 x 0.88 Inches
TC Connection
Clip
Terminal Material
Copper
Terminal Type
Ferrule
Type
Current Limiting, Fast Acting
Voltage
300 VAC

Packaging

Pkg Qty
10

Manufacturer Information

Brand
Ferraz Shawmut Canada, Inc.
Sub Brand
Amp-Trap®

General Product Info

12-Digit UPC
782001890056
Class
T
Construction
GMG
GTiN
30782001890057
Product UPC
78200189005
Weight
0.01 lb

Dimensions

Diameter
0.41 Inch
Length
0.88 Inch
Applications
  • Load centers
  • Panelboards
  • Switchboards
  • Circuit breakers
  • Metering centers
Approvals & Standards
  • UL listed to standard 248-15 File E2137
  • CSA certified to standard C22.2 no. 248.15
  • DC listed to UL standard 248
Features
  • Extremely current-limiting for low peak let-thru current
  • Unique dimensions prevent replacement by other fuse classes
  • Blade-stamped catalog numbers for permanent identification
  • Small physical size for greater design flexibility
