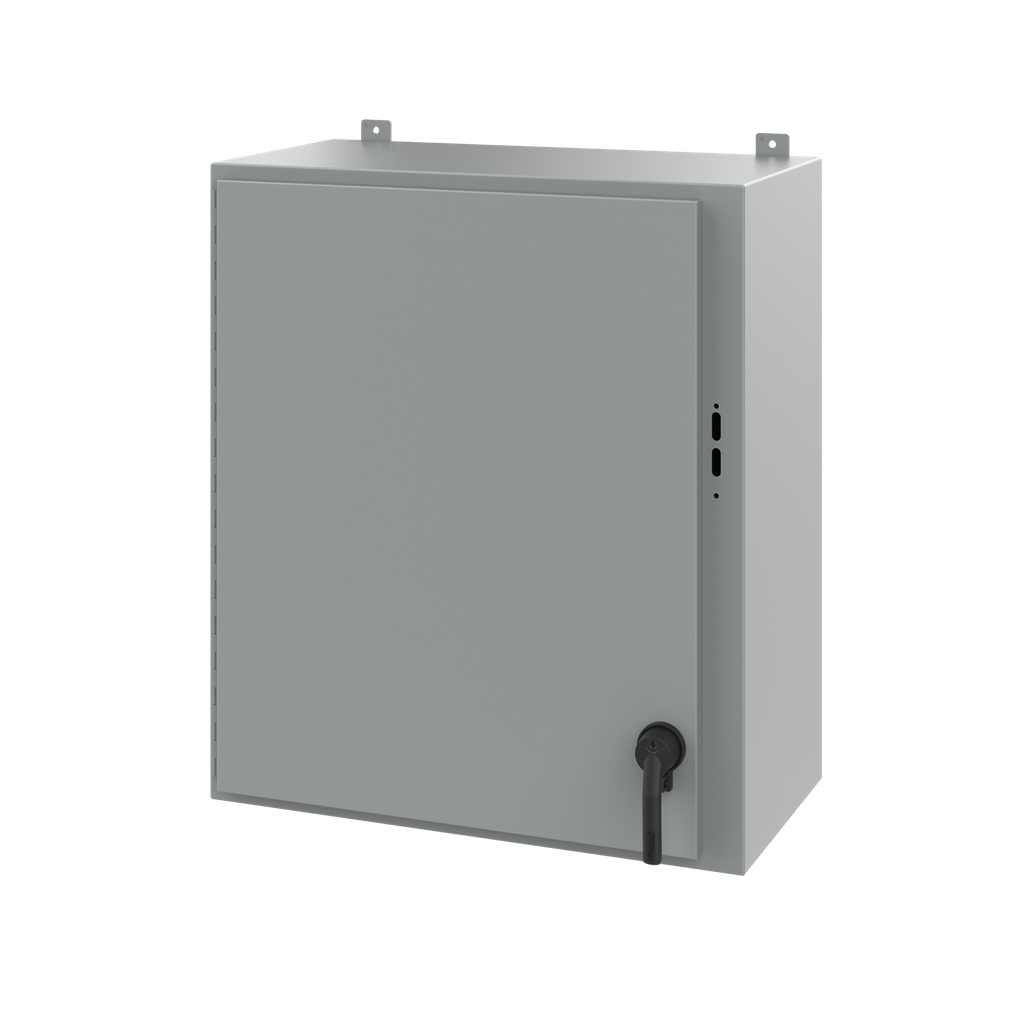

Product image for Hoffman A36SA3216LPPL Preferred Cutout, Disconnect Enclosure, Type 12, 36" x 31.38" x 16", Steel
Email

Hoffman A36SA3216LPPL Preferred Cutout, Disconnect Enclosure, Type 12, 36" x 31.38" x 16", Steel

Manufacturer: Hoffman | Catalog # A36SA3216LPPL | Cooper Electric Part # 356079
$2,423.57 /ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
These general purpose disconnect enclosures accept major brand disconnect switches and circuit breakers, available with or without the nVent HOFFMAN supplied defeater door handle and handle hardware.

Technical Information

Applications
Arc Flash Safety, Controls and Drives, Power Distribution, Indoor
IP Rating
65
Material
Steel
Mounting Type
Wall
Size
36.00x31.38x16.00 in
Standard
CSA File No. 42186: Type 12,CUL Listed Per CSA C22.2 No. 94; Type 12, 13; File No. E61997,IEC 60529, IP65,NEMA/EEMAC Type 12, 13,UL 508A Listed; Type 12, 13; File No. E61997
Type
Dust-Resistant

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
Hoffman

General Product Info

12-Digit UPC
783510404499
Color
ANSI 61 Gray
Finish
Powder Coated
GTiN
00783510404499
Product UPC
78351040449
Weight
50 lb

Dimensions

Depth
16 Inch
Height
36 Inch
Length
36 Inch
Thickness
1.9 mm
Width
31.38 in
Features
  • \"Model numbers ending with \"\"PL\"\" include handle and handle latching hardware\
  • Seams continuously welded and ground smooth
  • Bonding provision on door
  • External mounting brackets
  • External-formed flange around all sides of enclosure opening
  • Removable door with continuous hinge
  • Data pocket is high impact thermoplastic
  • Oil-resistant gasket
  • Collar studs for mounting optional panels
  • Holes in body and door for mounting operating handle, operating mechanism, and door closing mechanism
  • Available with or without nVent HOFFMAN supplied padlocking defeater handle and latching system
  • Includes latch pivot post(s) and adjustable door interlock bracket fastened to door, cover latch bar for door, and instructions for installing disconnects
