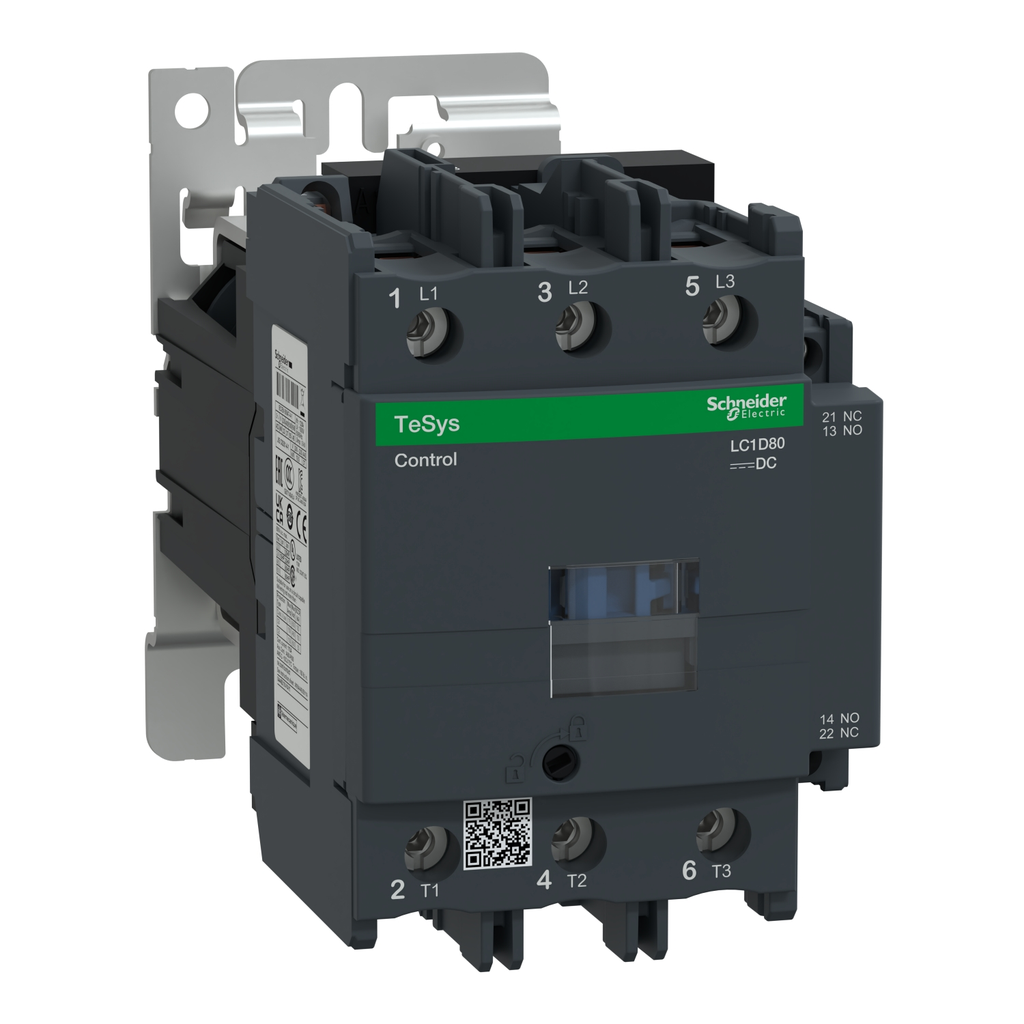

Product image for Square D LC1D80BD 600 VAC 80 Amp 3-Pole 1NO 1NC Screw Terminal Full Voltage Non-Reversing IEC Contactor
Image thumbnail 0
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Image thumbnail 6
Image thumbnail 7

Email

Square D LC1D80BD 600 VAC 80 Amp 3-Pole 1NO 1NC Screw Terminal Full Voltage Non-Reversing IEC Contactor

Manufacturer: Square-D / Schneider | Catalog # LC1D80BD | Cooper Electric Part # 355413

$564.93/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Opens Thursday 7:00am ET
7 available

For Delivery

Order by Thursday 5:00pm ET for delivery Friday
Not in local stock *
Check another branch
TeSys D contactors have been designed for perfect integration into control systems. They can be used to create motor starters for almost any type of application. TeSys D contactors are available in 13 contactor ratings for inductive motor applications up to 150 full-load amps and resistive loads up to 200 amps. This 80A inductive 3 pole IEC contactor can be mounted on DIN rail or mounted directly to a panel. Contactors have both Horsepower and Kw motor rating for international acceptance. Contactor is rated for 25HP at 200 to 208VAC, 30HP at 240VAC, 60HP at 480VAC and 60HP at 600VAC three phase. Contactor is also rated for 7.5HP at 115VAC and 15HP at 240VAC single phase. When used with a 480VAC up to 150A circuit breaker, this contactor can have a SCCR up to 100kA. When used with up to a 600VAC 175A Class J or CC fuse, this contactor can have a SCCR up to 100kA. Contactor is supplied with a 24 VDC coil with transient suppressor module. Contactor has one normally open and one normally closed auxiliary contact built-in as standard. The NC contact is mirror certified. Screw clamp terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 5.00 inches tall, 3.35 inches wide and 7.32 inches deep. It weighs 5.71 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards. Contactor also meets the requirements of RoHS/REACh making it a Green Premium product.

Technical Information

Applications
MOTOR CONTROL-RESISTIVE LOAD
Coil Voltage
24 V DC,24 V DC STANDARD,POWER CIRCUIT <= 300 V DC 25...400 HZ-POWER CIRCUIT <= 690 V AC
Contact Configuration
1 NO + 1 NC,3 NO
Contact Rating
10 A 60 AC SIGNALLING CIRCUIT-125 A 60 AC POWER CIRCUIT
Impedance
0.8 MOhm - Ith 125 A 50 Hz For Power Circuit
Net Weight
2.59 kg
Operating Cycles
3600 cyc/h 60 C
Operating Temperature
-40-70 Adegrees C AT UC,-5-60 Adegrees C
Range
TeSys
Size
127 MM,186 MM,85 MM
Standard
CSA C22.2 No 14,EN 60947-4-1,EN 60947-5-1,IEC 60947-4-1,IEC 60947-5-1,UL 508
Storage Temperature
-60-80 degrees C
TC Connection
CONTROL CIRCUIT SCREW CLAMP TERMINALS 2 1-2.5 MMAFLEXIBLE WITH CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 1 1-2.5 MMAFLEXIBLE WITH CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 1 1-4 MMAFLEXIBLE WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 2 1-4 MMAFLEXIBLE WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 1 1-4 MMASOLID WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 2 1-4 MMASOLID WITHOUT CABLE END-POWER CIRCUIT CONNECTOR 1 4-50 MMAFLEXIBLE WITHOUT CABLE END-POWER CIRCUIT CONNECTOR 2 4-25 MMAFLEXIBLE WITHOUT CABLE END-POWER CIRCUIT CONNECTOR 1 4-50 MMAFLEXIBLE WITH CABLE END-POWER CIRCUIT CONNECTOR 2 4-16 MMAFLEXIBLE WITH CABLE END-POWER CIRCUIT CONNECTOR 1 4-50 MMASOLID WITHOUT CABLE END-POWER CIRCUIT CONNECTOR 2 4-25 MMASOLID WITHOUT CABLE END
Type
CONTACTOR,DIRECT ON-LINE CONTACTOR
Voltage
300 Volt
Wattage
5.1 Watt AC-3 - 12.5 Watt AC-1

Manufacturer Information

Brand
Schneider Electric
Sub Brand
TESYS D

General Product Info

12-Digit UPC
338911043992
GTiN
03389110439977
Product UPC
78590120780
Weight
2.59 kg

Dimensions

Depth
7.32 in
Height
5 in
Warranty Length
18 mth
Width
3.35 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Certifications
BV,CCC,CSA,DNV,GL,GOST,LROS (Lloyds Register Of Shipping),RINA,UL
Country of Origin
Czechia
Insulation Resistance
  • > 10 MOhm for signalling circuit
Connections Terminals
  • control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end
  • control circuit: screw clamp terminals 1 1-2.5 mm² - cable stiffness: flexible with cable end
  • control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end
  • control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end
  • control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid without cable end
  • control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid without cable end
  • power circuit: connector 1 4-50 mm² - cable stiffness: flexible without cable end
  • power circuit: connector 2 4-25 mm² - cable stiffness: flexible without cable end
  • power circuit: connector 1 4-50 mm² - cable stiffness: flexible with cable end
  • power circuit: connector 2 4-16 mm² - cable stiffness: flexible with cable end
  • power circuit: connector 1 4-50 mm² - cable stiffness: solid without cable end
  • power circuit: connector 2 4-25 mm² - cable stiffness: solid without cable end
IE Rated Operational Current
  • 125 A (at <60 °C) at <= 1000 V AC AC-1 for power circuit
  • 80 A (at <60 °C) at <= 440 V AC AC-3 for power circuit
  • 80 A (at <60 °C) at <= 440 V AC-3e for power circuit
ITH Conventional Free Air Thermal Current
  • 10 A (at 60 °C) for signalling circuit
  • 125 A (at 60 °C) for power circuit
CAD
  • https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0004125_3D-CAD&p_File_name=MCADPD0004125_3D-simplified.stp
  • https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0004125_3D-CAD&p_File_name=MCADPD0004125_2D-back.dwg
  • https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0004125_3D-CAD&p_File_name=MCADPD0004125_2D-back.dxf
  • https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0004125_3D-CAD&p_File_name=MCADPD0004125_2D-bottom.dwg
  • https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0004125_3D-CAD&p_File_name=MCADPD0004125_2D-bottom.dxf
  • https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0004125_3D-CAD&p_File_name=MCADPD0004125_2D-front.dwg
  • https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0004125_3D-CAD&p_File_name=MCADPD0004125_2D-front.dxf
  • https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0004125_3D-CAD&p_File_name=MCADPD0004125_2D-isometric.dwg
  • https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0004125_3D-CAD&p_File_name=MCADPD0004125_2D-isometric.dxf
  • https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0004125_3D-CAD&p_File_name=MCADPD0004125_2D-left.dwg
  • https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0004125_3D-CAD&p_File_name=MCADPD0004125_2D-left.dxf
  • https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0004125_3D-CAD&p_File_name=MCADPD0004125_2D-right.dwg
  • https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0004125_3D-CAD&p_File_name=MCADPD0004125_2D-right.dxf
  • https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0004125_3D-CAD&p_File_name=MCADPD0004125_2D-top.dwg
  • https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0004125_3D-CAD&p_File_name=MCADPD0004125_2D-top.dxf
  • https://download.schneider-electric.com/files?p_Doc_Ref=LC1D80BD-CAD
  • https://download.schneider-electric.com/files?p_Doc_Ref=LC1D80_0_OD
IP Degree Of Protection
  • IP20 front face IEC 60529
Climatic Withstand
  • IACS E10 exposure to damp heat
Power Dissipation Per Pole
  • 5.1 W AC-3
  • 12.5 W AC-1
  • 5.1 W AC-3e
Maximum Operating Rate
  • 3600 cyc/h at 60 °C
Prop 65
  • WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Carbon Footprint Of The Installation Phase A5
  • 0.5 kg CO2 eq.
  • 0.4863785858697323
Non Overlap Time
  • 1.5 ms on de-energisation between NC and NO contact
  • 1.5 ms on energisation between NC and NO contact
Carbon Footprint Of The End Of Life Phase C1 To C4
  • 6.414934876649745
  • 6 kg CO2 eq.
Standards
  • CSA C22.2 No 14
  • EN 60947-4-1
  • EN 60947-5-1
  • IEC 60947-4-1
  • IEC 60947-5-1
  • UL 60947-4-1
Operating Time
  • 95...130 ms closing
  • 20...35 ms opening
Control Circuit Type
  • DC standard
Minimum Switching Voltage
  • 17 V for signalling circuit
UC Control Circuit Voltage
  • 24 V DC
ICW Rated Short Time Withstand Current
  • 640 A 40 °C - 10 s for power circuit
  • 990 A 40 °C - 1 s for power circuit
  • 135 A 40 °C - 10 min for power circuit
  • 320 A 40 °C - 1 min for power circuit
  • 100 A - 1 s for signalling circuit
  • 120 A - 500 ms for signalling circuit
  • 140 A - 100 ms for signalling circuit
Related Products
  • with
  • LADN22
  • LADN11
  • LADN20
  • LADT2
  • LADN40
  • LADN31
  • LADN02
  • LADT0
  • LADS2
  • LADR2
Carbon Footprint Of The Manufacturing Phase A1 To A3
  • 17 kg CO2 eq.
  • 17.19547636535516
Protective Treatment
  • THIEC 60068-2-30
UI Rated Insulation Voltage
  • power circuit 600 V CSA
  • power circuit 600 V UL
  • power circuit 1000 V IEC 60947-4-1
  • signalling circuit 690 V IEC 60947-1
  • signalling circuit 600 V CSA
  • signalling circuit 600 V UL
Average Impedance
  • 0.8 mOhm - Ith 125 A 50 Hz for power circuit
Electrical Durability
  • 0.8 Mcycles 125 A AC-1 <= 440 V
  • 1.5 Mcycles 80 A AC-3 <= 440 V
  • 1.5 Mcycles 80 A AC-3e <= 440 V
Maximum Horse Power Rating
  • 7.5 hp at 120 V AC 50/60 Hz for 1 phase motors
  • 15 hp at 230/240 V AC 50/60 Hz for 1 phase motors
  • 30 hp at 200/208 V AC 50/60 Hz for 3 phase motors
  • 30 hp at 230/240 V AC 50/60 Hz for 3 phase motors
  • 60 hp at 460/480 V AC 50/60 Hz for 3 phase motors
  • 60 hp at 575/600 V AC 50/60 Hz for 3 phase motors
Market Segmentation
  • Commercial
  • Industrial
Persona Type Names
  • End User
  • Contractor
  • Original Equipment Manufacturer
  • OEM - Control Panelbuilder
  • Panel Builder
  • System Integrator
Inrush Power In W
  • 22-22 W 20 °C)
Fire Resistance
  • 850 °C IEC 60695-2-1
Contactor Application
  • motor control
  • resistive load
Motor Power KW
  • 22 kW at 220...230 V AC 50 Hz (AC-3)
  • 37 kW at 380...400 V AC 50 Hz (AC-3)
  • 45 kW at 415...440 V AC 50 Hz (AC-3)
  • 55 kW at 500 V AC 50 Hz (AC-3)
  • 45 kW at 660...690 V AC 50 Hz (AC-3)
  • 15 kW at 400 V AC 50 Hz (AC-4)
  • 22 kW at 220...230 V AC 50 Hz (AC-3e)
  • 37 kW at 380...400 V AC 50 Hz (AC-3e)
  • 45 kW at 415...440 V AC 50 Hz (AC-3e)
  • 55 kW at 500 V AC 50 Hz (AC-3e)
  • 45 kW at 660...690 V AC 50 Hz (AC-3e)
Flame Retardance
  • V1 conforming to UL 94
Carbon Footprint Of The Use Phase B2 B3 B4 B6
  • 151 kg CO2 eq.
  • 151.15110507246374
Persona Type Ids
  • EU
  • LC
  • OM
  • OM8
  • PB
  • SI
Auxiliaries
  • LADN22
  • LADN11
  • LADN20
  • LADT2
  • LADN40
  • LADN31
  • LADN02
  • LADT0
  • LADS2
  • LADR2
Safety Reliability Level
  • B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1
  • B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
Carbon Footprint Of The Distribution Phase A4
  • 0.33922115667609654
  • 0.3 kg CO2 eq.
Tightening Torque
  • control circuit 1.2 N.m screw clamp terminals flat Ø 6 mm
  • control circuit 1.2 N.m screw clamp terminals Philips No 2
  • power circuit 12 N.m connector flat Ø 6 to Ø 8 mm
  • power circuit 12 N.m connector hexagonal 4 mm
  • control circuit 1.2 N.m screw clamp terminals pozidriv No 2
Mechanical Robustness
  • vibrations contactor open 2 Gn, 5...300 Hz)
  • shocks contactor open 8 Gn for 11 ms)
  • vibrations contactor closed 3 Gn, 5...300 Hz)
  • shocks contactor closed 10 Gn for 11 ms)
Minimum Switching Current
  • 5 mA for signalling circuit
Control Circuit Voltage Limits
  • 0.1...0.3 Uc (-40-70 °C):drop-out DC
  • 0.85...1.1 Uc (-40-55 °C):operational DC
  • 1...1.1 Uc (55-70 °C):operational DC
Hold In Power Consumption In W
  • 22-22 W 20 °C
Market Segmentation Id
  • COMMERCIAL
  • INDUSTRIAL
IRMS Rated Making Capacity
  • 140 A AC for signalling circuit conforming to IEC 60947-5-1
  • 250 A DC for signalling circuit conforming to IEC 60947-5-1
  • 1100 A at 440 V for power circuit conforming to IEC 60947
Associated Fuse Rating
  • 10 A gG for signalling circuit conforming to IEC 60947-5-1
  • 200 A gG at <= 690 V coordination type 1 for power circuit
  • 160 A gG at <= 690 V coordination type 2 for power circuit
UE Rated Operational Voltage
  • power circuit <= 300 V DC 25...400 Hz
  • power circuit <= 690 V AC
Permissible Ambient Air Temperature Around The Device
  • -40-60 °C
  • 60-70 °C with derating
Rated Breaking Capacity
  • 1100 A at 440 V for power circuit conforming to IEC 60947
UIMP Rated Impulse Withstand Voltage
  • 8 kV IEC 60947
