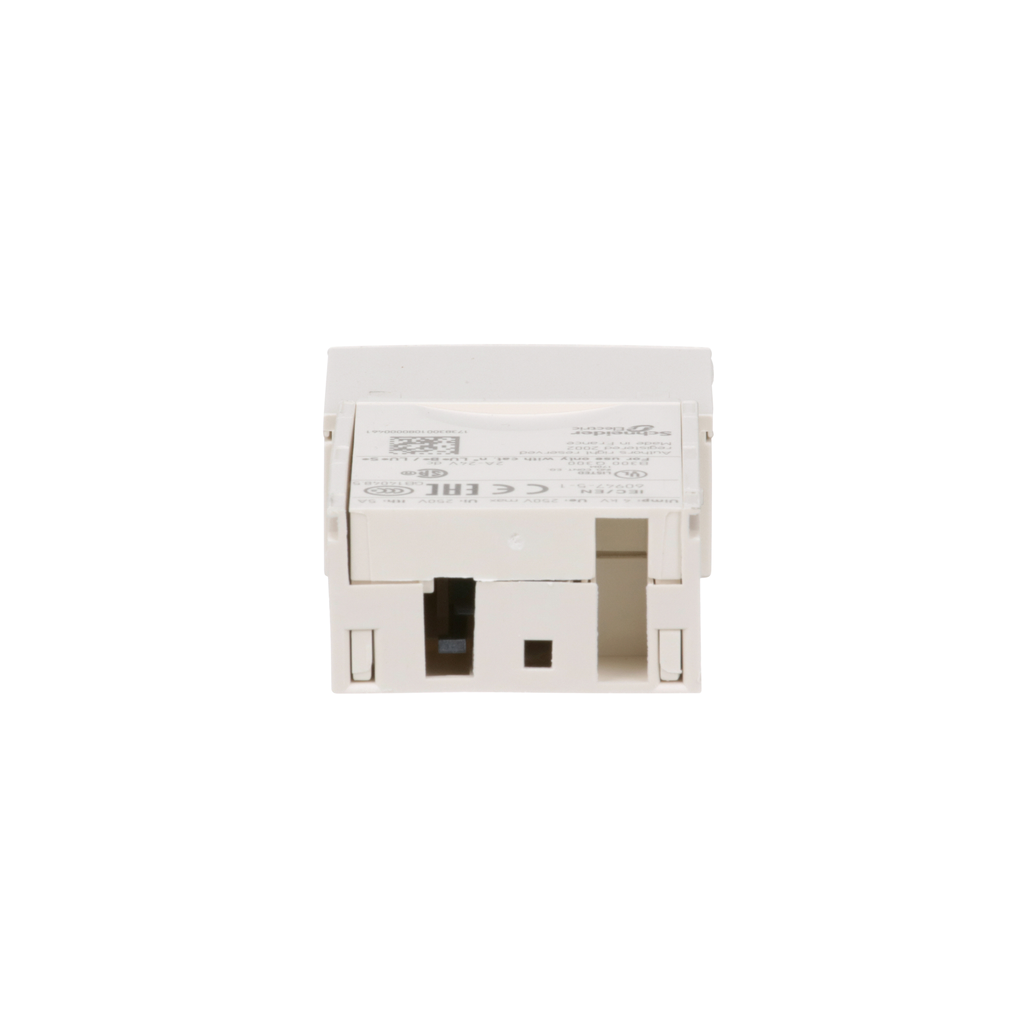

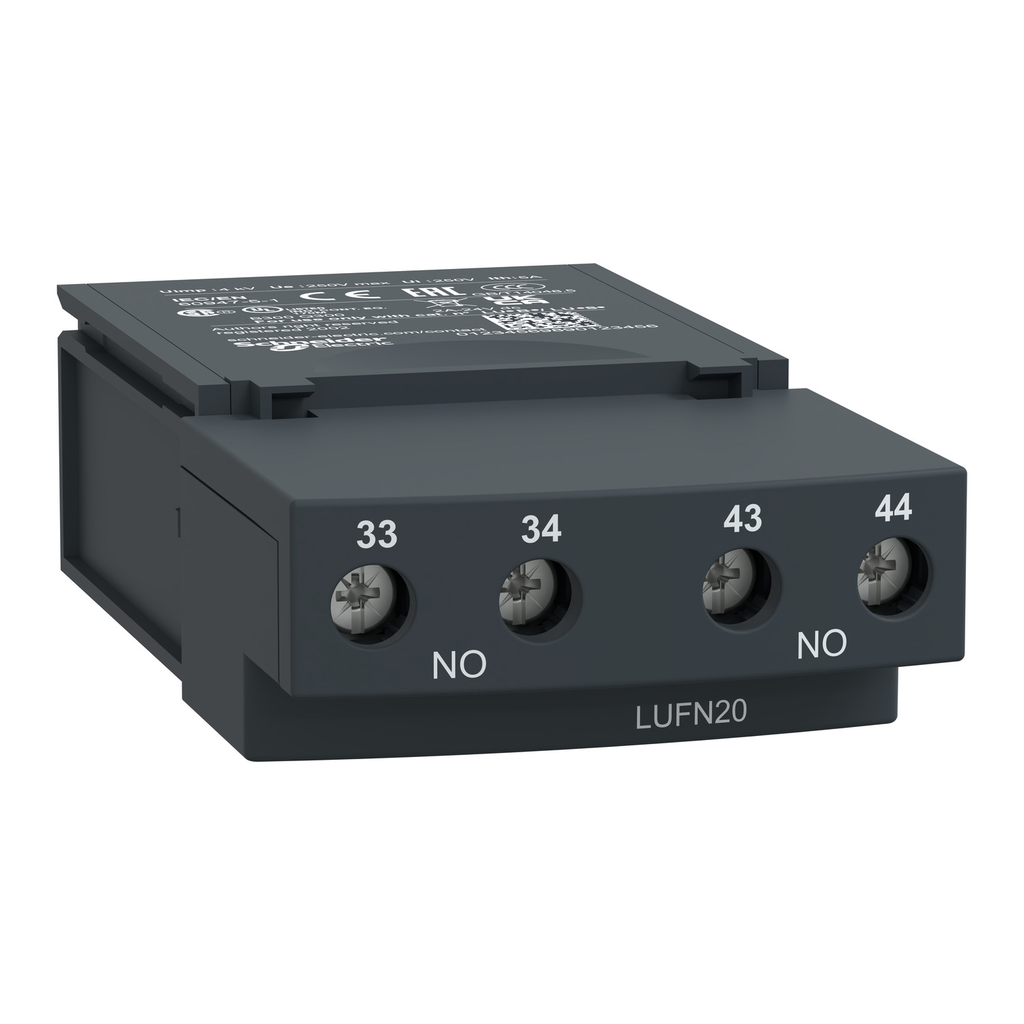

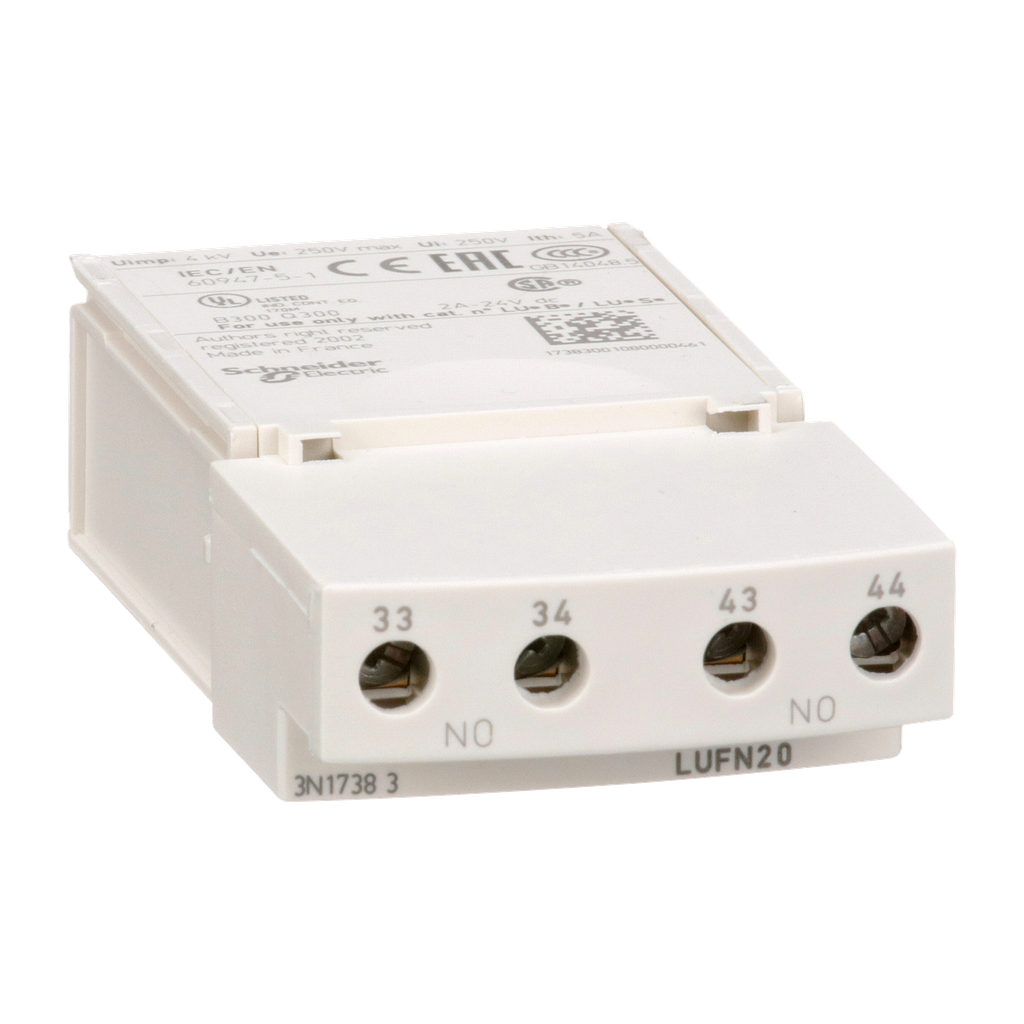

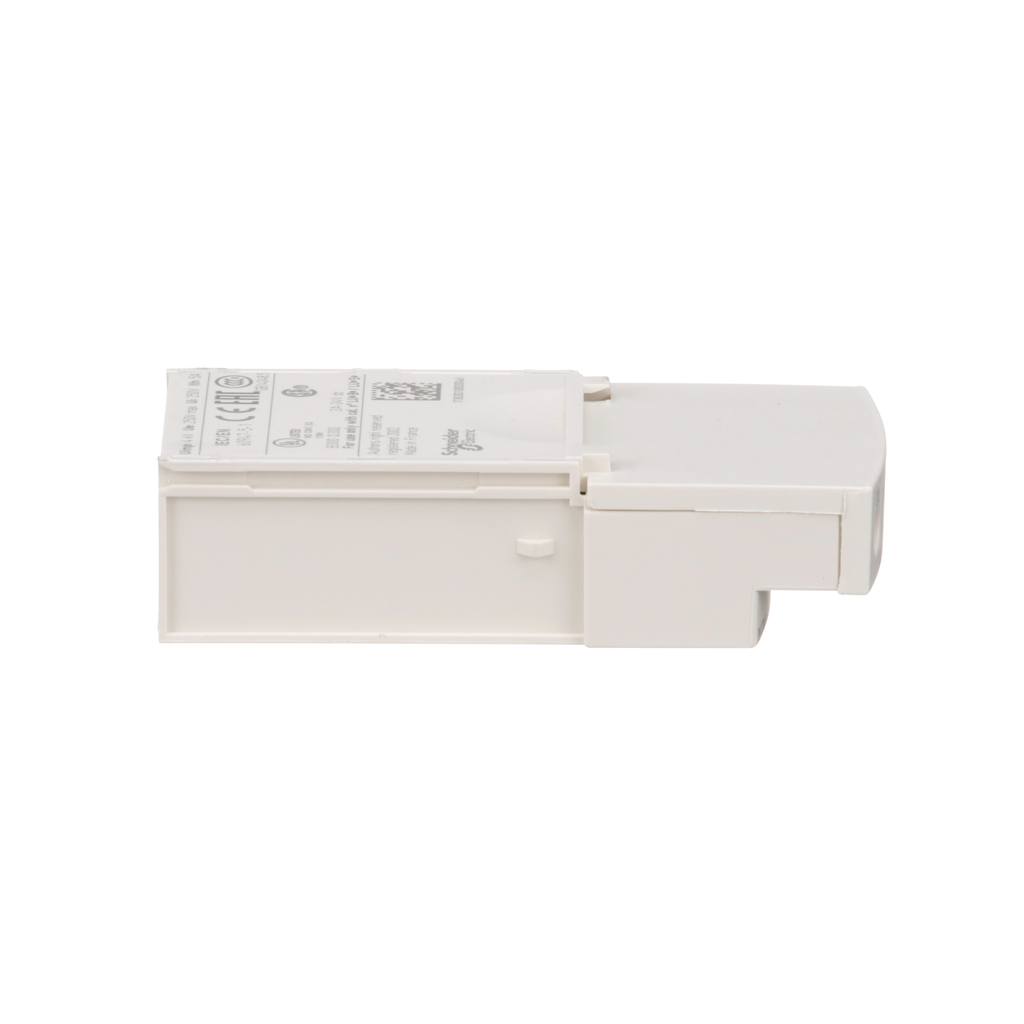

Product image for Square D LUFN20 250 VAC/VDC 5 Amp 2NO Screw Clamp Terminal Auxiliary Contact Block
Image thumbnail 0
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Image thumbnail 6
Image thumbnail 7
Email

Square D LUFN20 250 VAC/VDC 5 Amp 2NO Screw Clamp Terminal Auxiliary Contact Block

Manufacturer: Square-D / Schneider | Catalog # LUFN20 | Cooper Electric Part # 354980
$41.67/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Closes 5:00pm ET
4 available

For Delivery

Order by 5:00pm ET for delivery tomorrow
Not in local stock *
Check another branch
Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
TeSys U auxiliary signaling contacts module to be inserted in standard power bases LUB12, LUB32, LUB38 or advanced power base LUB120, LUB320, LUB380. It indicates the ON/OFF running status of the motor, whatever the direction of rotation. It provides 2NO instantaneous auxiliary contacts rated 24-250V AC/DC 5A max. It is powered by the control unit. To be inserted in the cavity of a power base provided for the auxiliary modules. Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Technical Information

Amperage
5 Amp
Applications
TESYS U SIMPLE MOTOR STARTER
Contact Configuration
2 NO
Enclosure
OPEN
Net Weight
0.05 kg
Number of Poles
2 Pole
Operating Cycles
<=400HZ
Operating Temperature
-25C TO 70C
TC Connection
SCREW CLAMP TERMINALS
Type
Auxiliary contact
Voltage
250 Volt

Manufacturer Information

Brand
Schneider Electric
Sub Brand
LUFN;TeSys

General Product Info

12-Digit UPC
389110365163
GTiN
03389110365160
Product UPC
78590151001
Weight
0.05 kg

Dimensions

Warranty Length
18 mth

Certifications and Compliance

Country of Origin
France
