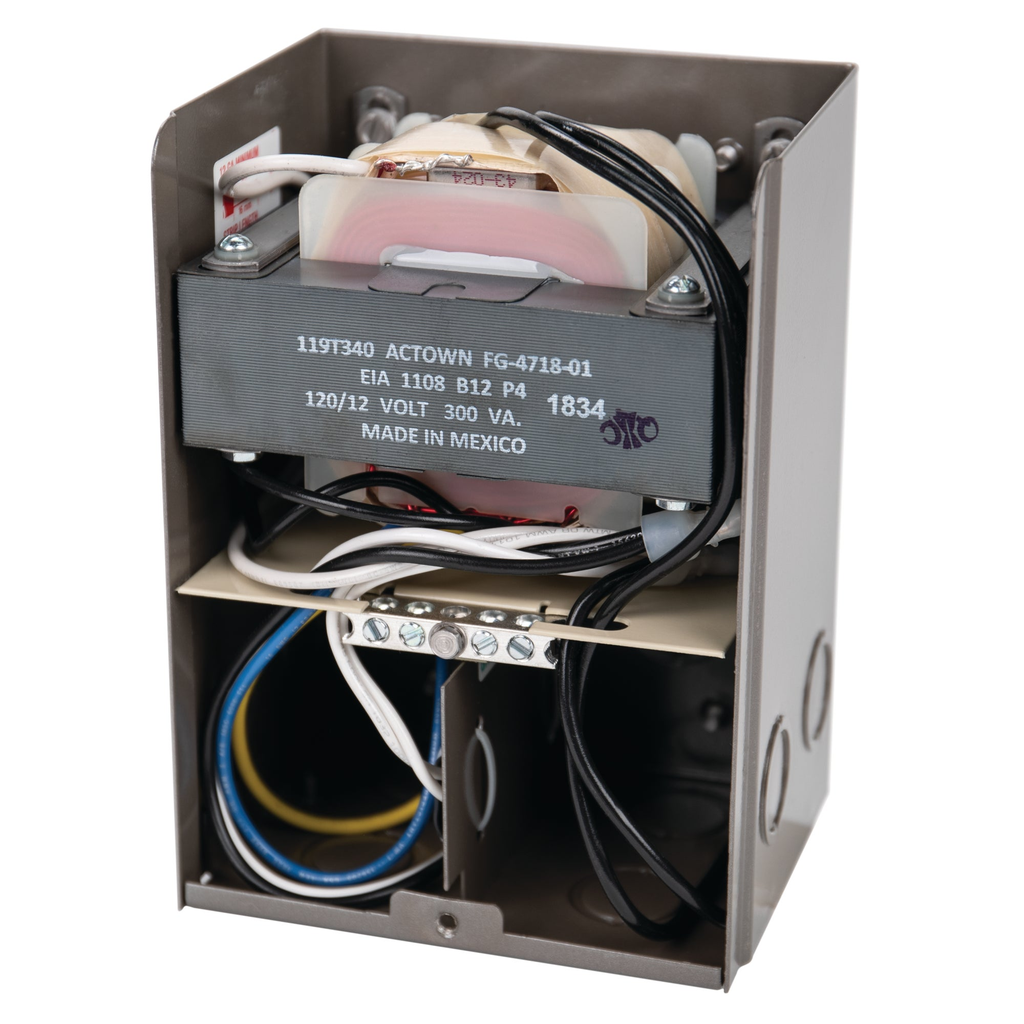

Product image for Intermatic PX300S 120 VAC 3 Amp Primary 14 VAC Secondary 300 W Safety Transformer with Stainless Steel Enclosure
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Intermatic PX300S 120 VAC 3 Amp Primary 14 VAC Secondary 300 W Safety Transformer with Stainless Steel Enclosure

Manufacturer: Intermatic, Inc | Catalog # PX300S | Cooper Electric Part # 3549
$400.82/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet
These safety transformers are specifically designed to supply 12-14 VAC and are suitable for direct connection to underwater pool/spa lights. A grounded shield between the primary and secondary winding assures safe operation. Built-in circuit protection will disconnect power to the transformer in case of an overload.

Technical Information

Applications
Pool or Garden Lighting, Spa Lighting, Fountain Lighting
Current
3 AMP
Enclosure
Type 3R Stainless Steel
Enclosure Rating
3R
Frequency
60 Hz
Input Voltage
120 V
Mounting Type
Bracket Mount
Output Voltage
12 V
Power Consumption
300 W
Size
7-1/4 HEIGHT X 5-1/4 WIDTH X 4-1/2 DEPTH IN, 18.4 HEIGHT X 13.3 WIDTH X 11.4 DEPTH CM
Standard
CCSAus Certified
Type
Safety Transformer
Wattage
300 Watt

Manufacturer Information

Brand
NA

General Product Info

12-Digit UPC
078275067578
Color
Beige
GTiN
00078275067578
Product UPC
07827506757
Weight
10.25 lb

Dimensions

Depth
4-1/2 Inch
Height
7-1/4 Inch
Warranty Length
1 yr
Width
5.25 in

Certifications and Compliance

CA Prop65 Warning
Please see the Warning @ www.P65Warnings.ca.gov - DEHP
Country of Origin
Mexico
Features
  • Mounting brackets on the top and bottom
  • Built-in circuit protection disconnects power temporarily in case of overload
  • Complies with NEC Code 680.23 requirements for underwater luminaries
  • NA
