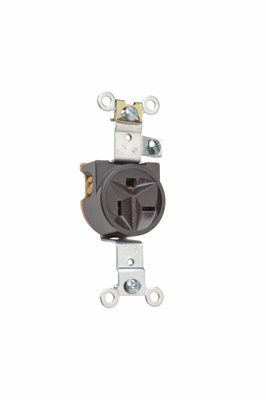

Product image for P&S 5371 RECP SGL 20A 125V ANGLE SL
Image thumbnail 0
Image thumbnail 1
Email

P&S 5371 RECP SGL 20A 125V ANGLE SL

Manufacturer: Pass & Seymour / Legrand | Catalog # 5371 | Cooper Electric Part # 353386
$25.10/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
Heavy-Duty Spec Grade Single Receptacle, Side-Wire Right Angle Slots, 20A 125V.

Technical Information

Amperage
20 Amp
Applications
Commercial
Capacity
Single
Conductor Size
14-10 AWG
Connection Type
Side Wire
Dielectric Strength
2000 V
Duty Rating
Heavy Duty
Enclosure
Non-NEMA
Grade
Commercial, Specification
Material
Nylon
Mounting Type
Wall, Flush, Screw
Number of Poles
2 Pole
Number of Wires
3 Wire
Size
1.32 L x .950 W x 3.68 H In
TC Connection
Side wire
Temperature Rating
-40 to 60 degrees C without Impact
Type
Right Angled
Voltage
125 Volt
Wire Size
10 AWG

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007537109
Color
Brown
Environmental Conditions
UL 94 Requirements, V2 Rated Flammability
Finish
Gloss
GTiN
00785007537109
Product UPC
78500753710
UNSPSC
39121406

Dimensions

Depth
0.95 Inch
Height
3.28 Inch
Width
1.32 in

Certifications and Compliance

Certifications
CSA,UL
Country of Origin
Mexico
Features
  • Auto-ground clip assures positive ground.
  • Two drive screws anchor strap to back body and face where abrupt removal torque is greatest.
  • Heavy-duty, corrosion-resistant zinc-plated steel strap fro added strength.
  • Backed-out tri-drive steel terminal screws.
  • One-piece brass triple-wipe power contacts for lasting retention.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
Eco-Benefit Information
  • RoHS Compliant
