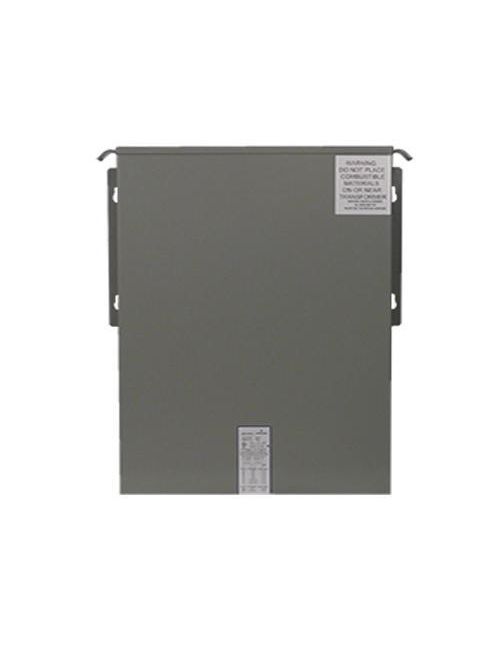

Product image for SHD HS22F2A 2KVA 240X480-24/48 BB
Image thumbnail 0
Image thumbnail 1
Email

SHD HS22F2A 2KVA 240X480-24/48 BB

Manufacturer: Sola Electric | Catalog # HS22F2A | Cooper Electric Part # 353116
$616.06/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Buy American Compliant Buy American Compliant Product Spec Sheet Product Catalog Page Product Brochure
Buck-Boost Transformers provide a compact, energy efficient, low cost means for raising or lowering voltage by a relatively small amount . usually 5 to 27 percent. Buck-boost transformers are typically used to power control panels, landscape lighting and other loads with specific voltage requirements that differ from the available line voltage. The proper buck-boost transformer can maximize the performance and life of the connected equipment.

Technical Information

Applications
SolaHD encapsulated transformers are rated for hazardous locations and harsh industrial environments.
Enclosure
NEMA 3R, Class 1 Div 2 Group A,B,C and D
Max Output Current
31.3/62.5 A
Number of Phases
1 Phase
Primary Voltage
240x480 V
Secondary Voltage
24/48 V
TC Connection
Conduit Knockouts for side entry to wiring compartment
Temperature Rating
115 DEG C Temperature Rise Under Full Load
Type
Buck-Boost Transformer
Wattage
7.5 kW

Manufacturer Information

Brand
SolaHD

General Product Info

12-Digit UPC
783472542208
GTiN
00783472542208
Product UPC
78347254220

Dimensions

Height
12 Inch
Length
9 Inch
Width
14 in

Certifications and Compliance

Buy American Compliant
Y
Features
  • cULus
  • Small, single phase, dry type distribution transformer
  • Dual voltage primary and a dual voltage secondary
  • Transformers can be connected for a wide range of voltage combinations
  • In compliance with NEC Article 210.9, Exception 1 when field connected as an autotransformer. They can handle loads up to 20 times the nameplate rating
  • More efficient than equivalent isolation transformers
  • When the primary and secondary windings are connected it becomes an autotransformer, allowing it to supply a load with a much larger kVA rating than the nameplate indicates
  • Connected as an insulating transformer, the transformers capacity matches the nameplate kVA rating
